Reference CA35R | TAKUMA EAN 8032182404897

CA35RS Coaxial DC lightning protector at 1000 Mhz max.power 400W

CA35RS Coaxial lightning protector DC at 1000Mhz Power max.400W. The CA-35R coaxial lightning surge protector protects your valuable communication equipment from lightning strikes.

Make the first review

26,20€ VAT included 21,65€ excl. VAT

You've seen it cheaper Request a quote
available. Estimated delivery 2-5 days. available in shop Delivery price from 30,25€

Description TAKUMA CA35R

CA35-R

CA35R Coaxial DC lightning protector at 1000Mhz max.400W. The CA-35R coaxial lightning surge protector protects your valuable communication equipment from lightning strikes.

The arrester absorbs the electricity and diverts it to ground. The surge protector is designed for safety and has a surge discharge element is a gas diode inside.
The device can perform surge recovery and discharge actions repeatedly as needed, without needing to be replaced thanks to its internal gas dido.

Protector coaxial de rayos DC a 1000Mhz max.400W

kit content
  • 1 CA-35RS Shield

Protector coaxial de rayos DC a 1000Mhz max.400W

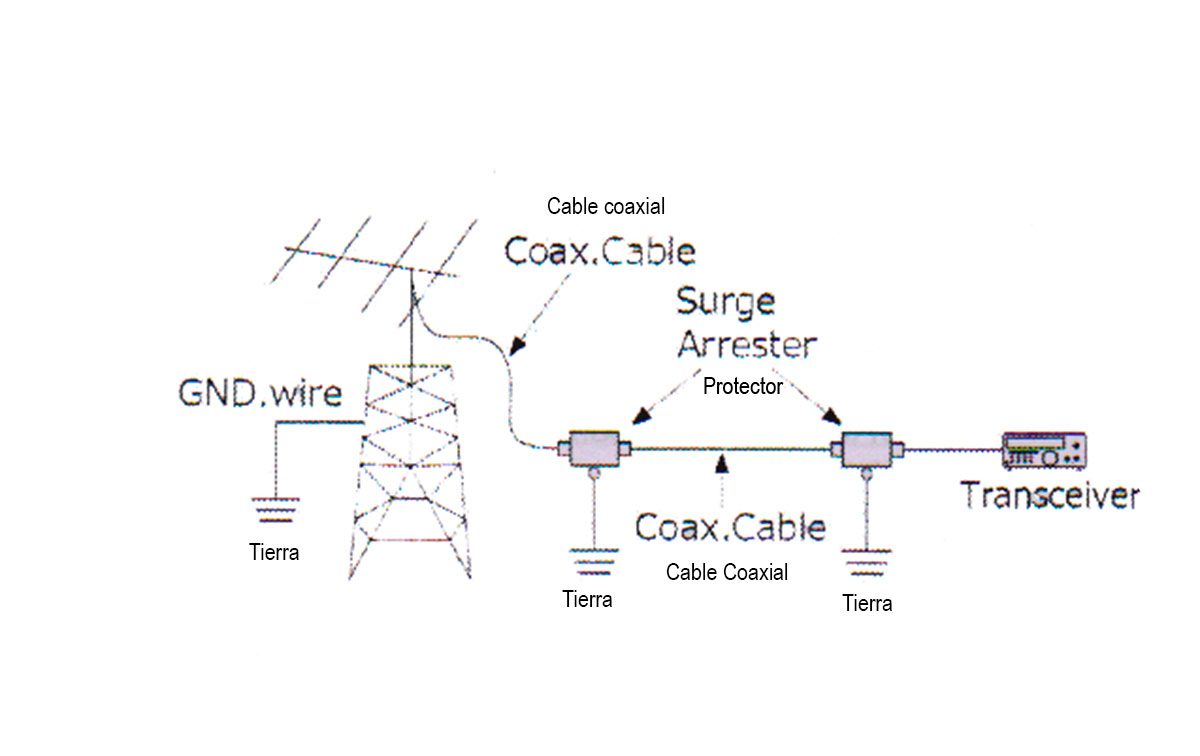

Esquema de funcionamiento, El descargador absorve la electricidad y la deriva a tierra. El protector contra sobretensiones está diseñado para la seguridad y tiene un elemento de descarga de sobretensión es un diodo de gas en la parte interior.

Features

  • Frequencies DC-1000Mhz
  • HF/ VHF /UHF bands
  • Impedance 50 ohms
  • Maximum power 400 watts
  • 2 PL Female Connector
  • VSWR 1.1
  • ground connector
  • Lost 0.2dB
  • Measures 65 x 45 x 20mm
  • Weight 78 grams.
