ALAN
Reference ALAN100PLUSKITC | ALAN

CB 27 Mhz. AM/FM radio station. ALAN 100 PLUS + ANTENNA + SP 100M SUPPORT...

The new ALAN 100 PLUS. It has the essential elements for good communication: practical volume and mute controls that help to obtain optimal reception,

5,0

154,88 VAT included 128,00€ excl. VAT

Additional Services

Are you one of those who prefer not to wrap gifts? We do it for you!

With the Paper Gift Service, you will receive your product wrapped and ready to deliver to your recipient!

What if the recipient is you? Why not?

We all like to open a gift from time to time, so do not cut and hit the whim! We assure you that we will surround you with all the affection of the world.

This service is available for the following countries: España - Peninsula y Baleares, Canarias, Alemania, Bélgica, Eslovaquia, Eslovenia, Estonia, Francia, Grecia, Holanda, Irlanda, Italia, Letonia, Luxemburgo, Noruega, Polonia, Portugal, Reino Unido, República Checa, Suecia, Andorra, Austria, Bulgaria, Chipre, Dinamarca, Finlandia, Gibraltar, Hungría, Malta, Mónaco, Rumania, Suiza, Ceuta y Melilla, Gibraltar, Francia Corcega, Portugal - Azores y Madeira.

If in the purchase process you select a country, that are not specified in the list, we will delete automatically the service. Therefore you will not be charged anything. We are working to improve our services. So we will try, of course, to have this service in all countries.

available. Estimated delivery 1-2 days. available in shop Last units Delivery price from 6,50€

Description ALAN ALAN100PLUSKITC


MIDLAND

ALAN 100 PLUS + SIRTEL SRTM-145RA ANTENNA + SP100M SUPPORT + BA55M BASE CABLE

The new ALAN 100 PLUS. It has the essential elements for good communication: practical volume and mute controls that help to obtain optimal reception, while a new condenser microphone has been designed to improve audio.

This kit gives you the versatility and possibility of performing two types of assembly:

1- Fixed mounting on sheet metal:
You can make a fixed mount in your vehicle using the transmitter, the SIRTEL SRTM-145RA antenna and the cable with the BA55M base PL259 CONNECTOR

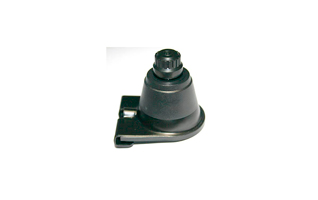

2- Mounting using SP100M support without hole in sheet metal:
You can mount the transmitter by installing the SP-100M support in your vehicle and connecting the cable with the BA55M base to it and then the antenna to the latter.

- Direct access to channels 9 and 19
- Channel indicator display
- UP/DOWN selectors on front
- Volume Control
- Squelch Control
- Tx indicator led
- External speaker jack
- 4 pin microphone connector
- PL FEMALE antenna connector
- Connector

TURBO ANTENNA 27PL MAAS


SIRTEL SRTM-145RA ANTENNA, 150 cm, with spring. HIGH PERFORMANCE

Power: 400 W
Impedance: 50 Ohms
Length: 150 cm
Weight: 320 g


TURBO 27PL


CHARACTERISTICS

General
  Channels 40 AM/FM
  Frequencies 26.965 - 27.405 MHz
  Supply voltage 13.8 Vdc
  Dimensions 180x125x38 mm
  Weight 950 g
  Receiver
  Sensitivity >1µV for 20dB SINAD
  Audio output power max. 4.5W @ 40hm
  Audio distortion <8% @ 1 KHz
  Consumption 250 mA
  Transmitter
  Output power 1W AM - 4W FM
  Modulation AM: 90% - FM 2KHz
  Consumption 1100 mA

Accessories ALAN ALAN100PLUSKITC

Reviews ALAN ALAN100PLUSKITC

Es robusto y no se desajusta fácilmente. Cuando viajo pongo la antena con este utillaje y la desmonto cuando no me hace falta. Lo volvería a comprar si me hiciera falta. Estoy contento con el artículo.
