ALAN
Reference ALAN100PLUS | ALAN EAN 8011869170171

Broadcaster ALAN 100 PLUS B CB 27 Mhz. AM / FM

The new ALAN 100 PLUS has the essential elements for a good communication: practical volume and silencer controls that help to obtain an optimal reception

Make the first review

87,20 VAT included 68,20€ Ahorras -19,01€ (-27,87%) 72,07€ excl. VAT

available. Estimated delivery 2-5 days. available in shop Last units Delivery price from 30,25€

Description ALAN ALAN100PLUS




NEW MODEL!

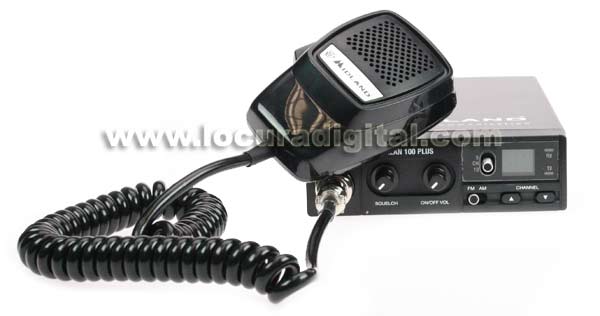

CB 27 Mhz. AM / FM. ALAN 100 PLUS B

The new ALAN 100 PLUS has the elements essential for good communication: a practical volume controls and mute to help you get the best reception, while improving the audio has been studied a new condenser microphone 4-pin connector and a new design that make it more ergonomic

If all that's not enough, and Alan has incorporated the cigarette lighter plug to power in your vehicle quickly and effectively facilitating the assembly and disassembly of this station a very easy way.



FEATURES

- Direct access to channels 9 and 19
- Display channel indicator
- Selectors UP / DOWN in front
- Volume Control
- Squelch Control
- Tx Led indicator
- Loudspeaker outlet External
- Micro Connector 4 pin
- SO239 antenna connector
- lighter connector built


alan 100 plus b


FEATURES




 General
Channels 40 AM / FM
Frequency 26965-27405 MHz
Power supply 13.8 Vdc
Dimensions 180x125x38 mm
Weight 950 g
 Receiver
Sensitivity >1?V for 20dB SINAD
Audio output power max. 4.5W @ 40HM
Audio Distortion
Consumption 250 mA
 Transmitter
Output 1W AM - 4W FM
Modulation AM: 90% - FM 2KHz
Consumption 1100 mA
