ALAN 100 PLUS SPECIAL 4X4 + SRTM145 ANTENNA + SUPPORT + CABLE WITH BASE

The new ALAN 100 PLUS. It has the essential elements for good communication: practical volume and mute controls that help to obtain optimal reception.

5,0

154,88 VAT included 128,00€ excl. VAT

available. Estimated delivery 2-5 days. available in shop Last units Delivery price from 30,25€

Description ALAN ALAN100PLUSKIT4X4


MIDLAND

!! SPECIAL FOR 4 X 4 VEHICLES !!

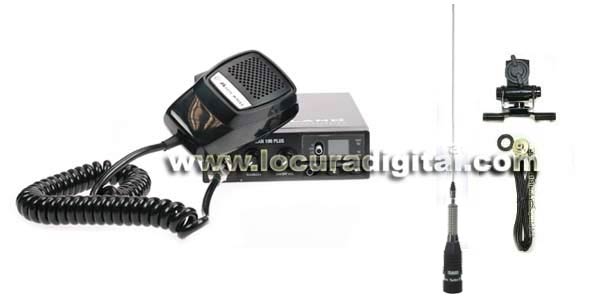

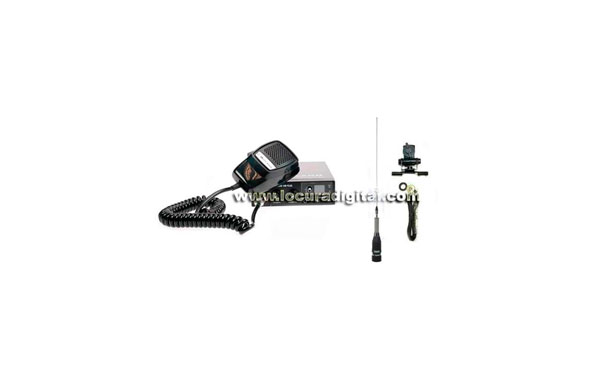

ALAN 100 PLUS + SIRTEL SRTM-145RA ANTENNA + SP100M SUPPORT + BA55M BASE CABLE

The new ALAN 100 PLUS. It has the essential elements for good communication: practical volume and mute controls that help to obtain optimal reception, while a new condenser microphone has been designed to improve audio.

This kit gives you the versatility and possibility of performing two types of assembly:

1- Fixed mounting on sheet metal:

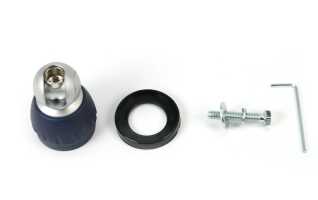

You can make a fixed mount in your vehicle using the transmitter, the SIRTEL SRTM-145RA antenna and the 5-meter cable with the PL BA55M base and PL259 CONNECTOR
at the end.

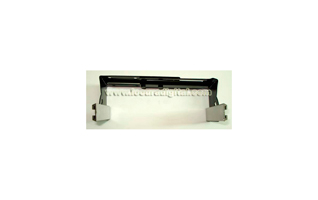

2- Mounting using SP100M support without hole in sheet metal:
You can mount the transmitter by installing the SP-100M support in your vehicle and connecting the cable with the BA55M base to it and then the antenna to the latter.

- Direct access to channels 9 and 19
- Channel indicator display
- UP/DOWN selectors on front
- Volume Control
- Squelch Control
- Tx indicator led
- External speaker jack
- 4 pin microphone connector
- PL FEMALE antenna connector
- Connector

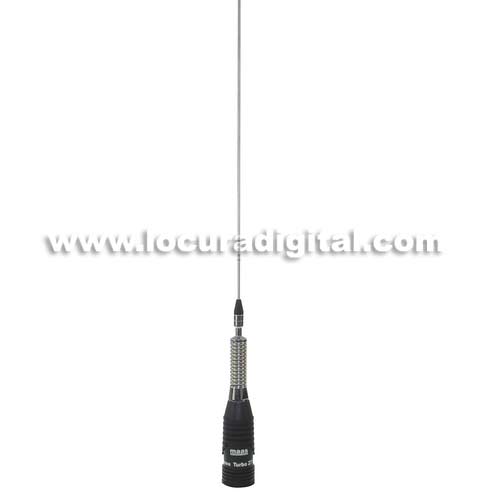

TURBO ANTENNA 27PL MAAS


SIRTEL SRTM-145RA CB Antenna 27 Mhz, 150 cm, with spring. HIGH PERFORMANCE

Power: 400 W
Impedance: 50 Ohms
Length: 150 cm
Weight: 320 g


TURBO 27PL


CHARACTERISTICS

General
Channels 40 AM/FM
Frequencies 26.965 - 27.405 MHz
Supply voltage 13.8 Vdc
Dimensions 180x125x38 mm
Weight 950 g
Receiver
Sensitivity >1µV for 20dB SINAD
Audio output power max. 4.5W @ 40hm
Audio distortion <8% @ 1 KHz
Consumption 250 mA
Transmitter
Output power 1W AM - 4W FM
Modulation AM: 90% - FM 2KHz
Consumption 1100 mA

Accessories ALAN ALAN100PLUSKIT4X4

Reviews ALAN ALAN100PLUSKIT4X4

Un kit muy completo, abrir y empezar a usar.
