ALAN 100 PLUS T1D 4X4 + The new ALAN 100 PL CB 27 Mhz. AM / FM.

The new ALAN 100 PLUS T1D 4X4 + SIRIO MINI MAG-27. It has the essential elements for good communication: practical volume and squelch controls that help to obtain optimal reception, while a new condenser microphone has been studied to improve the aud

Make the first review

116,16 VAT included 96,00€ excl. VAT

available. Estimated delivery 2-5 days. available in shop Last units Delivery price from 30,25€

Description ALAN ALAN100T1D4X4


Ideal kit for a quick and easy assembly in 2 minutes .

CB 27 Mhz transmitter. AM / FM. ALAN 100 PLUS B

This kit consisting of the Alan 100 Plus B transmitter and the SIRIO MINI MAG-27 antenna with a magnetic base is ideal for people who need communication without fixed installations. In less than two minutes you will have your station mounted and ready to broadcast and receive.

The new ALAN 100 PLUS has the essential elements for good communication: practical volume and squelch controls that help to obtain optimal reception, while to improve the audio a new condenser microphone with 4-pin connector has been studied and a new design that make it more ergonomic

If all this seems little to you, Alan has also incorporated the cigarette lighter connector so that the power supply in your vehicle is fast and efficient, facilitating the assembly and disassembly of this transmitter in a very simple way

This kit is not valid for fiber vehicles, since the antenna, being magnetic, needs a metal surface

ALAN ALAN100T1D4X4

MAIN CHARACTERISTICS ALAN 100 PLUS

- Direct access to channels 9 and 19
- Channel indicator display
- UP / DOWN selectors on the front
- Volume Control
- Squelch control
- Led indicator Tx
- External speaker socket
- 4 pin mic connector
- SO239 antenna connector
- Built-in cigarette lighter connector

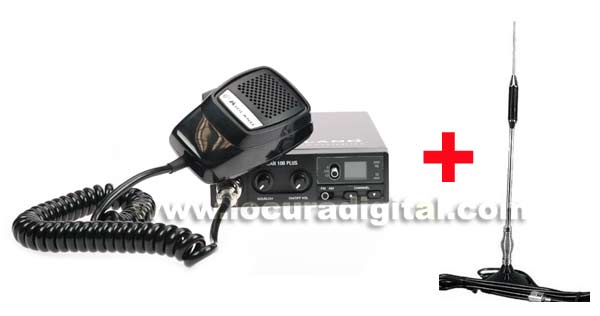

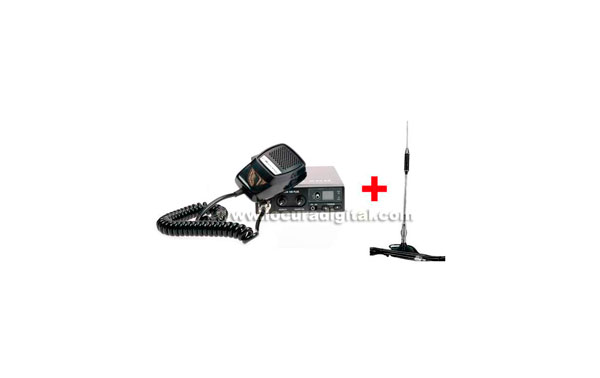

It includes:
1 ALAN 100 PLUS TRANSMITTER COMPLETE MAGNETIC ANTENNA SIRIO MINI MAG-27


ALAN ALAN100T1D4X4




Half wave antenna with magnetic base, with spring: Stainless steel
With 3 meters of RG 58 PL connector cable



- CB 27 Mhz mobile antenna.
- Radiant stainless steel.
- Central coil.
- Stainless steel spring.
- Magnetic base 3 meters. RG58.
- PL259 final RG58.
- Impedance 50 Ohm.
- Frequency 26-28 Mhz.
- Vertical polarization.
- VSWR <1.2: 1.
- Pot. max. 50 W.
- Length 630 mm
- Weight 575 Gr.




CHARACTERISTICS

General
Channels 40 AM / FM
Frequencies 26.965 - 27.405 MHz
Supply voltage 13.8 Vdc
Dimensions 180x125x38 mm
Weight 950 g
Receiver
Sensitivity > 1? V for 20dB SINAD
Audio output power max. 4.5W @ 40hm
Audio distortion <8% @ 1 KHz
Consumption 250 mA
Transmitter
Output power 1W AM - 4W FM
Modulation AM: 90% - FM 2KHz
Consumption 1100 mA
