! ! DISCONTINUED BY DIGITAL INSANITY! !

NEW RECOMMEND YOU CLICK HERE Molelos>>>>

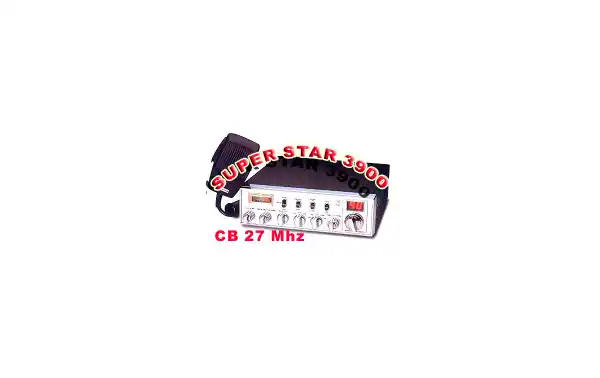

WIRELESS TRANSMITTER-RECEIVER CB/27Mhz. APPROVED

The mythical and selling of the station Cb.

Channels: 40 Modes: AM / LSB / USB / CW / FM.

FEATURES

1. S-METER.

Varies in proportion to the intensity of the signal.


2. RF COUNTER.

Intensity varies in proportion to the RF output


3. SWR METER.

Varies in proportion to the intensity of continuous wave signal and RF outside, used for a proper adjustment of the length of the antenna and control the quality of coaxial cable and all RF electrical connections, if there is a degradation due to any of them. reasons:
% U2022 humidity, fall spray, vibration or corrosion.
The SWR meter reading amount in relation to this, indicate that there is a problem.
To calibrate, switch to the CAL position of passing, pressing the switch MIKE control and adjust the SWR CAL mark on the S-METER, then switch to the SWR position to measure the SWR.


4. INDICATOR RECEPTION / TRANSMISSION

LEO indicator of reception / transmission is located near the channel indicator. Upon receipt, the LEO is green, when transmitting the LEO will be in red.


5. MICROPHONE. PTT push to talk.

The receiver and transmitter are controlled by the PTT switch on the microphone. Press the switch and the transmitter is activated, release to the reception, move the microphone when transmitting 10cm. of the lips and speak clearly in a normal voice.

NEW RECOMMEND YOU CLICK HERE Molelos>>>>

Kit Contents

SUPER STAR 3900

Front View 3900 SUPER STAR

SUPER STAR 3900

Side View 3900 SUPER STAR

SUPER STAR 3900

Bottom View SUPER STAR 3900

SUPER STAR 3900

Microphone front view

SUPER STAR 3900

Vista lateral microphone

SUPER STAR 3900

4 pin microphone connector

SUPER STAR 3900

Porta power cable fuses

SUPER STAR 3900

Power cable connectors

SUPER STAR 3900


FEATURES

NEW RECOMMEND YOU CLICK HERE Molelos>>>>

GENERAL

- Frequency surgical: 40 channels AM, 40 FM, 40 USB. 40 LSB
-
Frequency range: 26965-27405 MHz
-
Power supply: Rated voltage of 13 Vdc + / - 10%.
-
Antenna Connector: VHF 50 239
-
Microphone: Dynamic.
-
Frequency Control: PLL Synthesizer.
-
Frequency Tolerance: 0.005%.
-
Frequency Stability: 0.001%.
-
Temperature range: -30 º C + 50 º C.
-
Consumption: 2.5 Amp TX FM.
SSB 5 A.
RX 0.6 Amp. with a silencer.
RX 1.2 Amp. With max. Volume.

TRANSMITTER

-
FM Power: 4W.
AM: 4W.
SSB: 12 W pp.
-
Modulation: AM In Size
FM Frequency
High and low
-
Intermodulation Distortion: SSB Up to 25 dB in 3rd
Up to 35 dB in 5 °
-
SSB Carrier Suppression: 55 dB
-
Frequency response: AM and FM: 450-2500 Hz
-
Output Impedance: 50 Ohm.

RECEIVER

-
Sensitivity: SSB: 0.25 uV for 10 dB s + n / N.
AM: 0.5 uV for 10 dB s + n / N.
FM: 1.0 uV for 20 dB s + n / N.
-
Selectivity: AM / FM: 6 dB @ 3kHz, 50 dB @ 9 KHz.
SSB: 6 dB - @ 2.1 KHz, 60 KHz dB@3.3
-
Frequency image rejection: Up to 65 dB.
-
Adjacent Channel Rejection: 60 dB AM / FM and 70 dB SSB
-
Intermediate Frequency: AM / FM. 10 695 MHz, 1. FI and FI 21 455 KHz
SSB. 10 695, MHz
-
AF output power: 4W. 8 Ohm.
-
RF Gain Control: Adjustable to 45 dB.
-
Automatic Gain Control: Up to 10 dB.
-
Clarifier Range: Thickness Tx / Rx & / - 5 KHz.
Thinner (Tx / Rx) + / - 1 KHz.
-
Audio Power: 4W - 8 Ohm.
-
Frequency Response: 300-2800 Hz

TABLE OF CORRESPONDENCE BETWEEN CHANNELS AND FREQUENCIES

SUPER STAR 3900
