COMET
Reference CSW201GN | COMET EAN 8032182560487

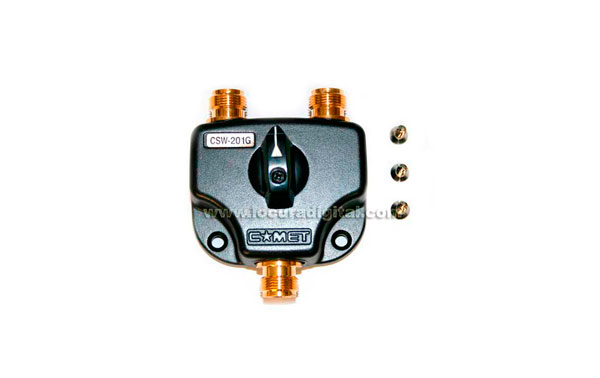

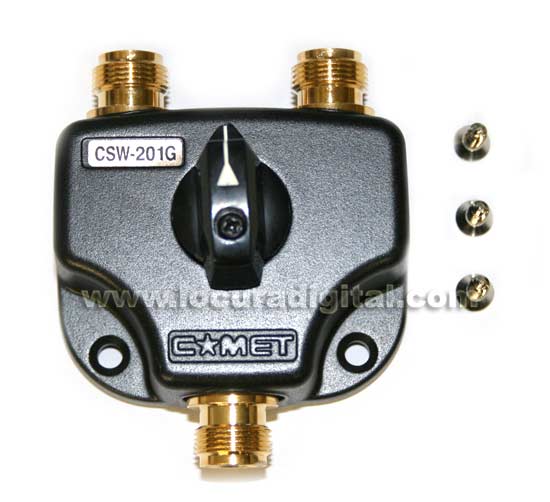

COMET CSW-201GN switch for 2 antennas N high quality.

COMET CSW-201GN switch for 2 antennas N high quality. This switch of the prestigious brand ANTENNA COMET allows the connection of two antennas for one radio station. With this switch you can choose to issue once before with another.

Make the first review

79,86€ VAT included 66,00€ excl. VAT

You've seen it cheaper Request a quote
available. Estimated delivery 2-5 days. available in shop Last units Delivery price from 30,25€

Description COMET CSW201GN


COMET CSW-201GN switch for 2 antennas N high quality.

This switch of the prestigious brand ANTENNA COMET allows the connection of two antennas for one radio station. With this switch you can choose to issue once before with another.

It is ideal equipment for HF, VHF and UHF as it allows us to optimize our full station

Contents of kit

COMET CSW-201GN

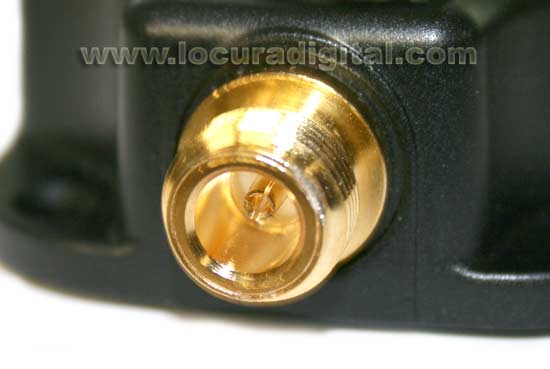

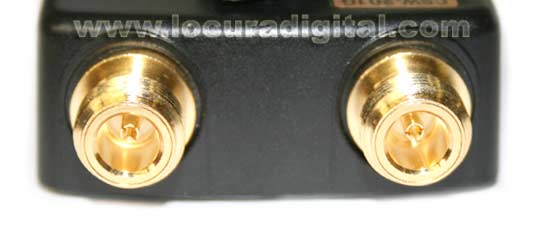

N Connectors

COMET CSW-201GN

N Connectors

COMET CSW-201GN

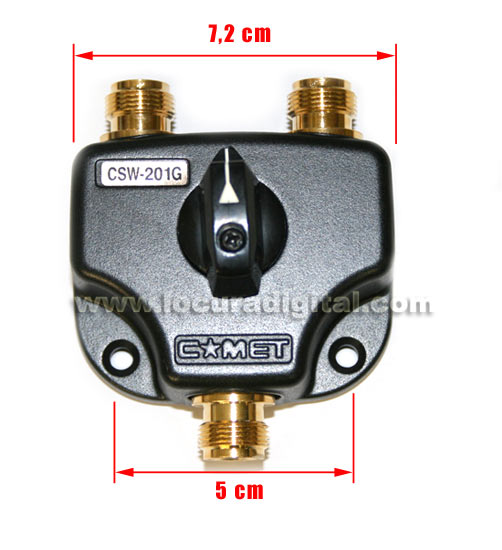

Measures

COMET CSW-201GN

COMET CSW201GN


FEATURES

Frequency range: DC ~ 1800 MHz
Connector: N
Insertion loss: <0.12 dB
Power rating:
DC ~ 30 MHz: 1500W PEP
30 ~ 600 MHz: 500W PEP
600 ~ 1800 MHz: 150W PEP
Isolation:
DC ~ 600 MHz:> 60 dB
600 ~ 1800 MHz:> 45 dB
VSWR:
DC ~ 600 MHz: <1.2
600 ~ 1800 MHz: <1.3
Impedance: 50 Ohm
Dimension: 72 x 78 x 47 mm
Weight: 430 gr.

Accessories COMET CSW201GN
