Reference BNCAIR7MA

BNCAIR7MA BNC Male Connector 7.3 mm cable Aircell 7 M&P Ultraflex 7

BNCAIR7-MA BNC MALE connector for Aircell 7, M&P Ultraflex 7, K-PO HF-2500 SSB cable. BNCAIR7HE BNC FEMALE connector for SSB Aircell 7, M&P Ultraflex 7, K-PO HF-2500 cable. BNC female connector is a widely used type of coaxial connector

Make the first review

9,03 VAT included 7,46€ excl. VAT

Additional Services

Are you one of those who prefer not to wrap gifts? We do it for you!

With the Paper Gift Service, you will receive your product wrapped and ready to deliver to your recipient!

What if the recipient is you? Why not?

We all like to open a gift from time to time, so do not cut and hit the whim! We assure you that we will surround you with all the affection of the world.

This service is available for the following countries: España - Peninsula y Baleares, Canarias, Alemania, Bélgica, Eslovaquia, Eslovenia, Estonia, Francia, Grecia, Holanda, Irlanda, Italia, Letonia, Luxemburgo, Noruega, Polonia, Portugal, Reino Unido, República Checa, Suecia, Andorra, Austria, Bulgaria, Chipre, Dinamarca, Finlandia, Gibraltar, Hungría, Malta, Mónaco, Rumania, Suiza, Ceuta y Melilla, Gibraltar, Francia Corcega, Portugal - Azores y Madeira.

If in the purchase process you select a country, that are not specified in the list, we will delete automatically the service. Therefore you will not be charged anything. We are working to improve our services. So we will try, of course, to have this service in all countries.

We know that sometimes welding a connector is difficult or you do not have the necessary tools to do it. For this reason, we put at your disposal our technical service that will be responsible for welding the connector you need.

Remember that this price only includes the assembly of this connector . If you need to solder 2 connectors, you must select the mounting service in the other connector as well.

Why are there connector mounting services with different prices?

We have evaluated the difficulty and the time that our technicians dedicate to solder / assemble the connectors and adjusted the maximum cost of this service.

This service is available for the following countries: España - Peninsula y Baleares, Canarias.

If in the purchase process you select a country, that are not specified in the list, we will delete automatically the service. Therefore you will not be charged anything. We are working to improve our services. So we will try, of course, to have this service in all countries.

available. Estimated delivery 1-2 days. available in shop Last units Delivery price from 6,50€

Description BNCAIR7MA

BNCAIR7-MA BNC MALE connector for Aircell 7, M&P Ultraflex 7, K-PO HF-2500 SSB cable. BNCAIR7HE BNC FEMALE connector for SSB Aircell 7, M&P Ultraflex 7, K-PO HF-2500 cable. The BNC female connector is a type of coaxial connector widely used in audio, video and radio frequency applications. The name "BNC" comes from the initials of "Bayonet Neill-Concelman", referring to the bayonet coupling mechanism used to connect and disconnect this type of connector quickly and safely.

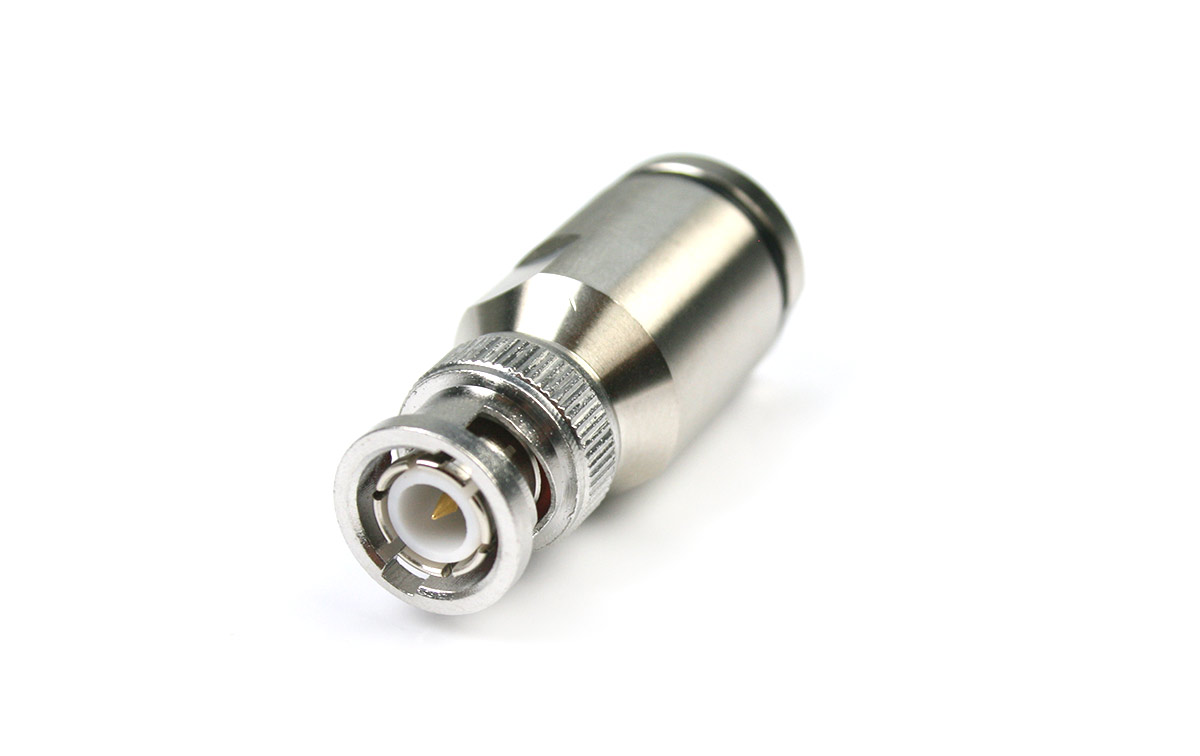

The BNC male connector has a cylindrical design with a center pin and bayonet structure that allows for mating and demapping
For cables maximum diameter 7.3 mm.
Pin inner diameter: 2mm

BNCAIR7-MA Conector BNC MACHO para cable SSB Aircell 7, M&P Ultraflex 7, K-PO HF-2500. BNCAIR7HE Conector BNC HEMBRA para cable SSB Aircell 7, M&P Ultraflex 7, K-PO HF-2500. El conector BNC hembra es un tipo de conector coaxial ampliamente utilizado en aplicaciones de audio, video y radiofrecuencia. El nombre

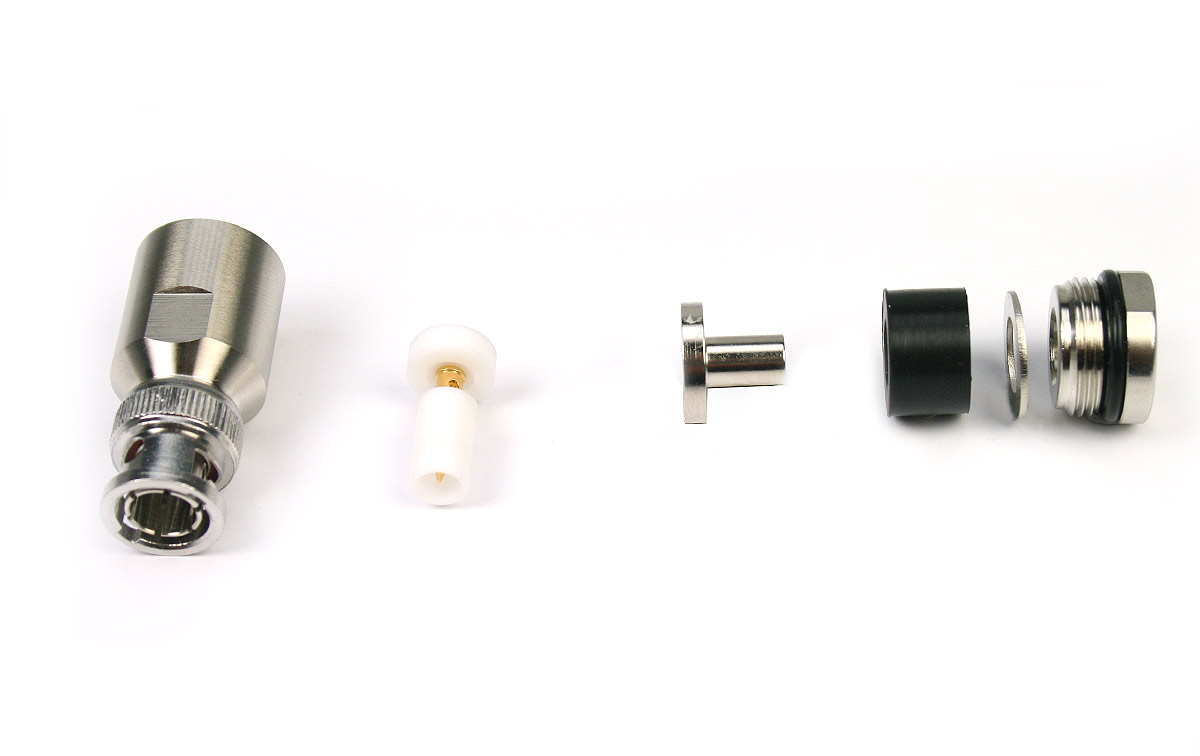

Kit content
  • 1 PLAIR-7-MA Connector

El conector BNC macho tiene un diseño cilíndrico con un pasador central y una estructura de bayoneta que permite un acoplamiento y desacoplamiento

Characteristics

  • Brand: K-PO
  • Model: BNCAIR-7MA
  • Insulation: PTFE
  • Cable diameter 7.3 mm maximum
  • 1 Pins Inner diameter 2 mm
  • Central pin: Golden Brass
  • BNC male connector
  • Connector body: Brass
  • Frequencies 0-3 GHz
  • Impedance 50 ohms
  • Soldering format
  • special alloy
  • Corrosion resistant
  • Open end wrench size: 16 mm
