8,23€ VAT included
STEALTH FLEX 7 M&P Low Loss Coaxial Cable, 7.3mm Thickness, Green
STEALTH FLEX 7 M&P Military Green Low Loss Coaxial Cable, 7.3 mm diameter, 19-strand braided center conductor, 1.9 mm total thickness. Its distinctive feature is its military green jacket, designed to blend into the environment (tactical or discr
Make the first review6,36€ VAT included 5,26€ excl. VAT
Are you one of those who prefer not to wrap gifts? We do it for you!
With the Paper Gift Service, you will receive your product wrapped and ready to deliver to your recipient!
What if the recipient is you? Why not?
We all like to open a gift from time to time, so do not cut and hit the whim! We assure you that we will surround you with all the affection of the world.
This service is available for the following countries: España - Peninsula y Baleares, Canarias, Alemania, Bélgica, Eslovaquia, Eslovenia, Estonia, Francia, Grecia, Holanda, Irlanda, Italia, Letonia, Luxemburgo, Noruega, Polonia, Portugal, Reino Unido, República Checa, Suecia, Andorra, Austria, Bulgaria, Chipre, Dinamarca, Finlandia, Gibraltar, Hungría, Malta, Mónaco, Rumania, Suiza, Ceuta y Melilla, Gibraltar, Francia Corcega, Portugal - Azores y Madeira.
If in the purchase process you select a country, that are not specified in the list, we will delete automatically the service. Therefore you will not be charged anything. We are working to improve our services. So we will try, of course, to have this service in all countries.
Description M&P STEALTHFLEX7
The Messi & Paoloni STEALTH FLEX 7 is a high-performance coaxial cable designed for demanding applications requiring maximum mechanical strength, flexibility, and a high level of shielding . It is specifically designed for harsh environments and intensive use.
THE PRICE IS PER 1 METER / SOLD BY THE METER
Its distinctive feature is its military green cover , designed to blend into the environment (for tactical or discreet use) and offer exceptional outdoor durability. Furthermore, it incorporates a reinforced double-mesh structure that provides genuine protection against mechanical stress and extreme conditions.
Thanks to its double braiding and copper foil, it provides exceptional shielding , reducing interference and ensuring stable transmission in HF, VHF and UHF.
- STEALTH FLEX 7 coaxial cable (length as purchased)

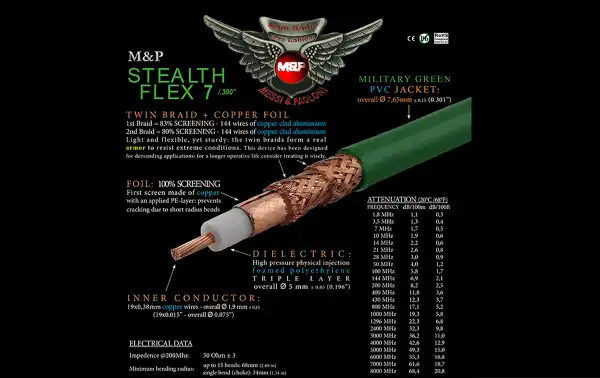

Technical and mechanical characteristics
- Manufacturer: Messi & Paoloni
- Model: STEALTH FLEX 7
- Type: Reinforced low-loss coaxial cable
- Impedance: 50 ohms ±3
- Frequency range: DC up to approximately 8 GHz.
- Outer diameter: 7.65 mm ± 0.15
- Dielectric diameter: 5.0 mm ± 0.05
- Diameter of the center conductor (live): 1.9 mm ± 0.15
- Construction of the live wire: 19 copper wires of 0.38 mm
- Central conductor: stranded copper
- Dielectric: triple-layer expanded polyethylene
- Screen: double braid (83% + 80%) + copper foil
- Total shielding: >105 dB
- Exterior cladding: Durable military green PVC
- Capacitance: 75 pF/m ± 2
- Speed factor: 83%
- Minimum bending radius: 34 mm (single) / 68 mm (repeated)
- Operating temperature: -40 ºC to +60 ºC
- Internal conductor resistance: 7.3 Ohm/Km
- External conductor resistance: 12 Ohm/Km
- Maximum peak power: up to 8000 W
- Compatible connectors: PL (UHF), N, BNC, SMA, TNC
- Applications: HF, VHF, UHF, CB, base stations, portable, tactical use
- Color: military green
