ULTRAFLEX-7 ULTRAFLEX 7 M & P Coaxial cable low loss thickness 7,3...

ULTRAFLEX 7

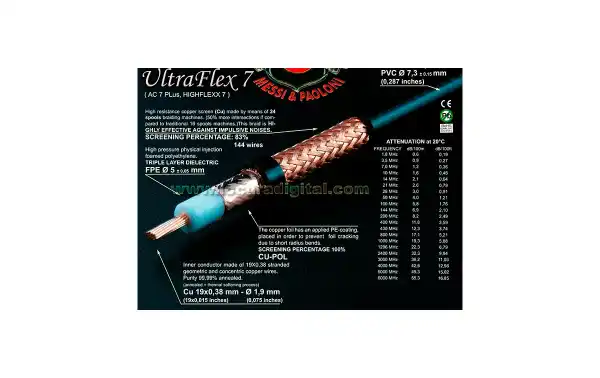

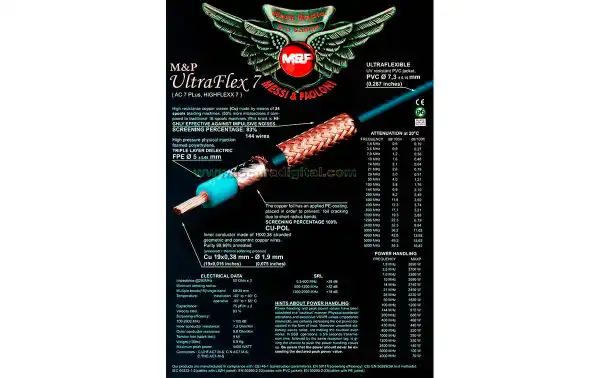

Low ULTRAFLEX ULTRAFLEX 7 7 M & P Coaxial Cable lost 7.3 mm thickness live wire braid 19 1.9 mm total thickness.
Professional coaxial cable with braided core (19 threads) and extraordinary flexibility. The outer shell is made of PVC black color, also UV resistant. This cable offers exceptional mechanical properties and electrical properties. Despite its small size (7.3 mm) electrically exceeds RG 213 T (10.3 mm).

THE PRICE IS FOR 1 METER / sold by the meter

Lost in dB every 100 meters Examples:
Frequency 0.90 MHz 3.5 dB
144 Mhz frequency 6.90 dB
430 Mhz frequency 12.30 dB
22.30 dB Frequency 1296 Mhz
32.30 dB Frequency 2400 Mhz

Features

• Nominal Impedance Ohms / 3 50 Ohm
• Minimum bending radius OUT / IN 68/34 mm
• Installation temperature 40 ° to 60 ° C
• Operating Temperature 55 ° to 85 ° C
• Capacitance / 2 pF / m 75 pF / m
• Resistance outer conductor 9.8 Ohm / Km
• Resistance of the inner conductor 7.3 Ohm / Km
• Detection efficiency> 105 dB (A Class)
• Weight (100 m) 13 Kg
• Rate Ratio 85%
• MAX 4400 Watt Peak Power
• Stress Test (spark test) 4 kV
