Reference ULTRAFLEX7SAHARA | M&P

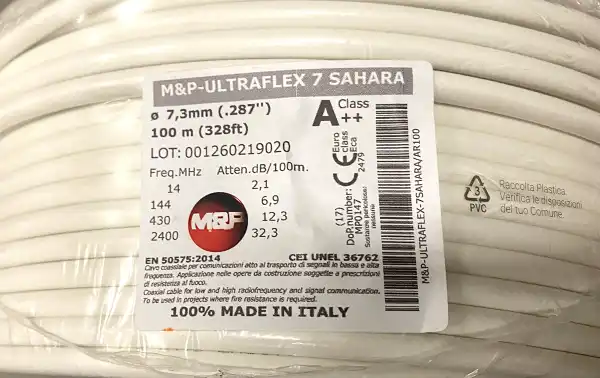

ULTRAFLEX-7 SAHARA M&P Low Loss Coaxial Cable, 7.3 mm Thickness, White
ULTRAFLEX-7 SAHARA M&P White Low Loss Coaxial Cable, 7.3 mm diameter, 19-strand twisted core, 1.9 mm total thickness. Its main feature is its white jacket, designed to reflect solar radiation and reduce
4,03,94€ VAT included 3,26€ excl. VAT
Additional Services
Are you one of those who prefer not to wrap gifts? We do it for you!
With the Paper Gift Service, you will receive your product wrapped and ready to deliver to your recipient!
What if the recipient is you? Why not?
We all like to open a gift from time to time, so do not cut and hit the whim! We assure you that we will surround you with all the affection of the world.
This service is available for the following countries: España - Peninsula y Baleares, Canarias, Alemania, Bélgica, Eslovaquia, Eslovenia, Estonia, Francia, Grecia, Holanda, Irlanda, Italia, Letonia, Luxemburgo, Noruega, Polonia, Portugal, Reino Unido, República Checa, Suecia, Andorra, Austria, Bulgaria, Chipre, Dinamarca, Finlandia, Gibraltar, Hungría, Malta, Mónaco, Rumania, Suiza, Ceuta y Melilla, Gibraltar, Francia Corcega, Portugal - Azores y Madeira.
If in the purchase process you select a country, that are not specified in the list, we will delete automatically the service. Therefore you will not be charged anything. We are working to improve our services. So we will try, of course, to have this service in all countries.
available. Estimated delivery 1-2 days. available in shop Delivery price from 6,50€
Description ULTRAFLEX7SAHARA
The Messi & Paoloni ULTRAFLEX 7 SAHARA, with a 7.3 mm diameter, 19-strand braided core, and 1.9 mm overall thickness, is a high-performance coaxial cable designed for demanding outdoor installations. It combines low losses, high flexibility, and high environmental resistance . It is ideal for amateur radio and professional applications requiring long-term reliability.
THE PRICE IS PER 1 METER / SOLD BY THE METER
Its main feature is its white coating , designed to reflect solar radiation and reduce cable heating. This helps maintain stable electrical properties and prevents premature deterioration in installations exposed to sunlight.

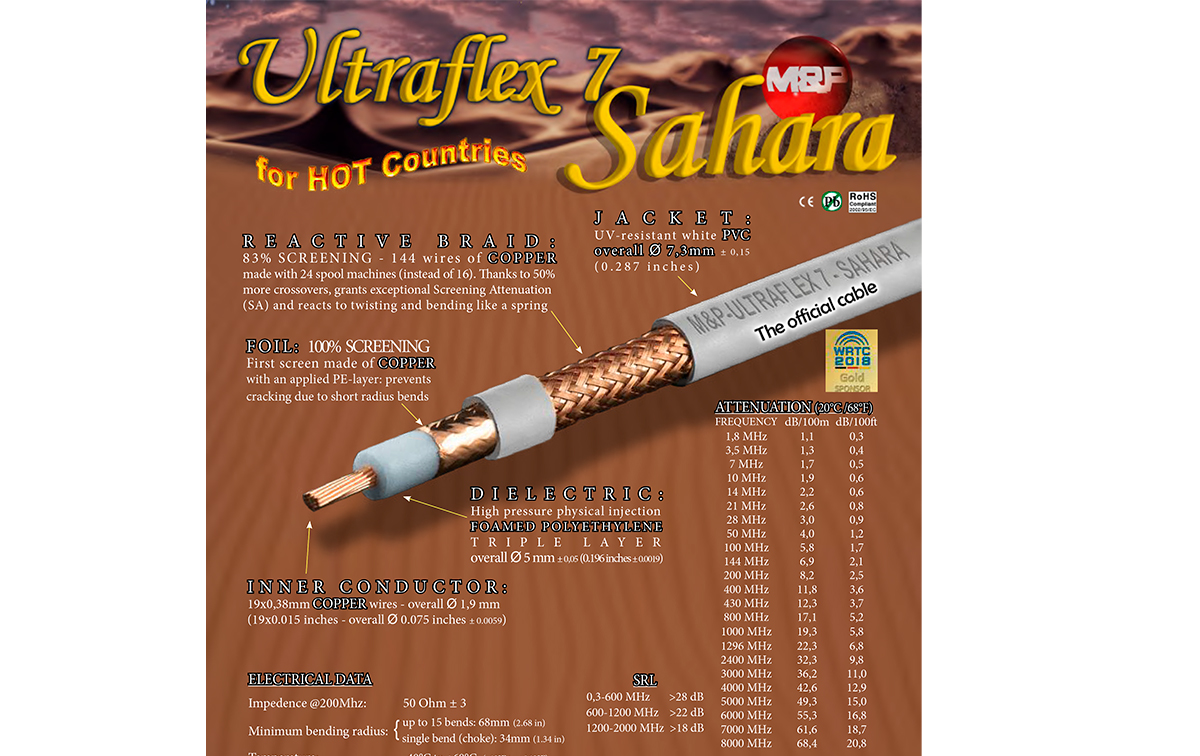

Furthermore, it incorporates an advanced construction with triple dielectric and high-efficiency shielding, offering excellent performance in HF, VHF and UHF, even under intensive working conditions.
What does ULTRAFLEX 7 SAHARA include?
- ULTRAFLEX 7 SAHARA coaxial cable (sold by the meter)
Technical and mechanical characteristics
- Manufacturer: Messi & Paoloni
- Model: ULTRAFLEX 7 SAHARA
- Type: Low-loss coaxial cable for outdoor use
- Impedance: 50 ohms ±3
- Frequency range: DC up to approximately 8 GHz.
- Outer diameter: 7.3 mm ± 0.15
- Dielectric diameter: 5.0 mm ± 0.05
- Diameter of the center conductor (live): 1.9 mm ± 0.15
- Construction of the live wire: 19 copper wires of 0.38 mm
- Central conductor: multi-strand electrolytic copper
- Dielectric: triple-layer expanded polyethylene
- Screen: copper sheet + copper braid (83% coverage)
- Total shielding: >105 dB (Class A++)
- Exterior cladding: UV-resistant white PVC
- Capacitance: 75 pF/m ± 2
- Speed factor: 83%
- Minimum bending radius: 34 mm (single) / 68 mm (repeated)
- Operating temperature: -40 ºC to +60 ºC
- Internal conductor resistance: 7.3 Ohm/Km
- External conductor resistance: 9.8 Ohm/Km
- Maximum peak power: up to 8000 W
- Compatible connectors: PL (UHF), N, BNC, SMA, TNC
- Applications: HF, VHF, UHF, CB, base stations, portable, 4G/LTE
- Color: white
Accessories ULTRAFLEX7SAHARA
7,77€ VAT included
9,03€ VAT included
9,58€ VAT included
6,36€ VAT included
20,07€ VAT included
12,81€ VAT included
12,22€ VAT included
9,99€ VAT included
14,83€ VAT included
14,02€ VAT included
10,99€ VAT included
6,44€ VAT included
9,03€ VAT included
9,99€ VAT included
10,59€ VAT included
9,27€ VAT included
7,87€ VAT included
5,95€ VAT included
14,98€ VAT included
Reviews ULTRAFLEX7SAHARA
Eugenio RMR 29-07-2026 | 19:02
Técnicamente el cable UltraFlex 7 Sahara tiene una atenuación similar al RG213 pero con un menor diámetro y mucho mas flexible. Por su poco peso es ideal para su uso en operaciones en el campo y ?Dxpedition? Por otro lado los cables con funda blanca se mimetizan con los cables de 75 ohmios, de TV, evitando discusiones con los vecinos que se alarman cada vez que ven un cable negro ;) Doble apantallado: ? Malla de cobre de alta resistencia mecánica porcentaje de blindaje de 83% muy efectiva contra impulsos de ruido de baja frecuencia ? Lamina de cobre altamente eficaz contra las interferencias de alta frecuencia. La lámina de cobre tiene un recubrimiento aplicado de PE, colocado con el fin de prevenir el agrietamiento debido a las curvas de diámetro corto. Totalmente recomendado. Saludos cordiales a toda la familia de Locura Digital.
