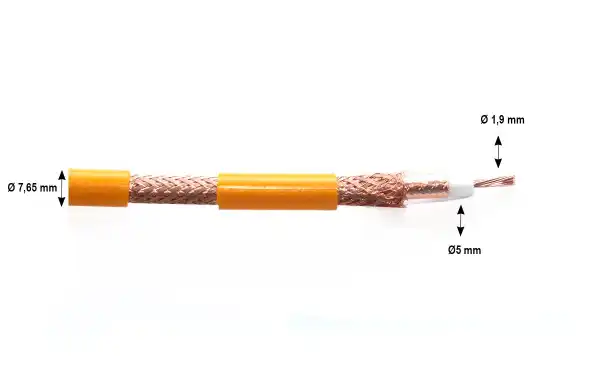

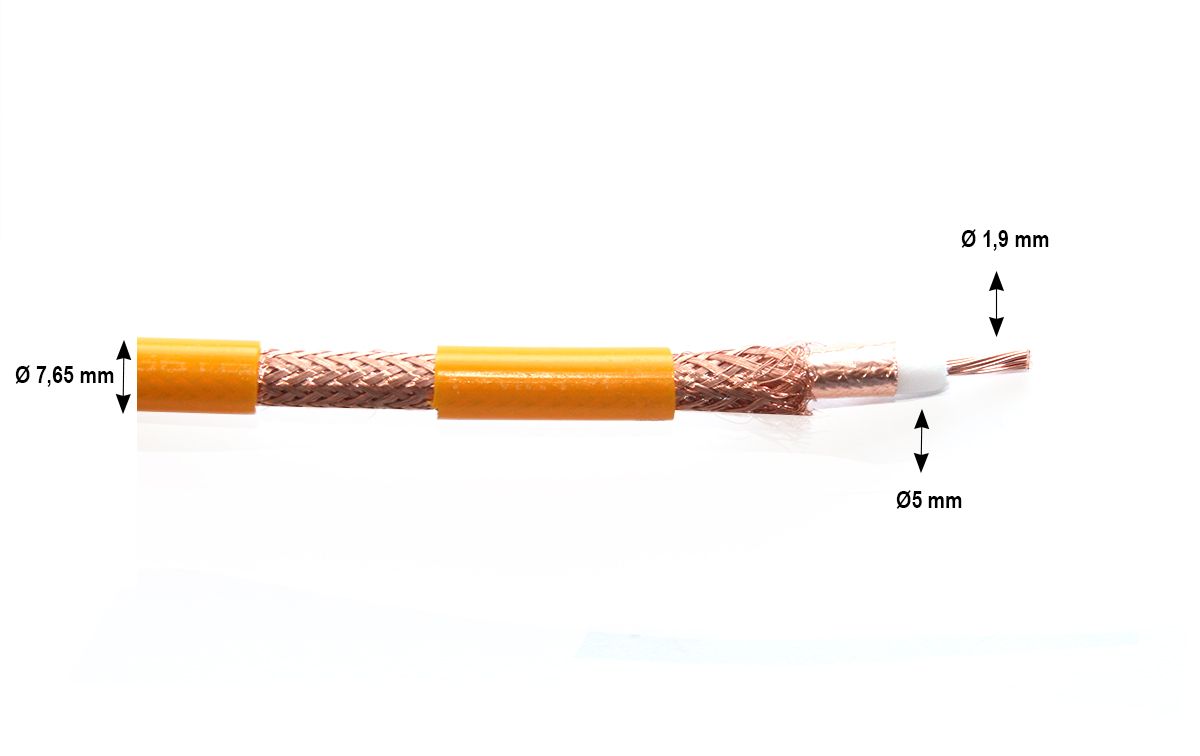

POTA FLEX 7 Low loss coaxial cable Ø 7.65 mm live wire 1.9 mm
POTA FLEX 7 Messi & Paoloni is a high-performance coaxial cable designed specifically for portable applications such as POTA (Parks On The Air), SOTA, and field amateur radio. It stands out for its exceptional flexibility and mechanical strength,
Make the first reviewAre you one of those who prefer not to wrap gifts? We do it for you!
With the Paper Gift Service, you will receive your product wrapped and ready to deliver to your recipient!
What if the recipient is you? Why not?
We all like to open a gift from time to time, so do not cut and hit the whim! We assure you that we will surround you with all the affection of the world.
This service is available for the following countries: España - Peninsula y Baleares, Canarias, Alemania, Bélgica, Eslovaquia, Eslovenia, Estonia, Francia, Grecia, Holanda, Irlanda, Italia, Letonia, Luxemburgo, Noruega, Polonia, Portugal, Reino Unido, República Checa, Suecia, Andorra, Austria, Bulgaria, Chipre, Dinamarca, Finlandia, Gibraltar, Hungría, Malta, Mónaco, Rumania, Suiza, Ceuta y Melilla, Gibraltar, Francia Corcega, Portugal - Azores y Madeira.
If in the purchase process you select a country, that are not specified in the list, we will delete automatically the service. Therefore you will not be charged anything. We are working to improve our services. So we will try, of course, to have this service in all countries.
Description M&P POTAFLEX7
The POTA FLEX 7 from Messi & Paoloni is a high-performance coaxial cable designed specifically for portable applications such as POTA (Parks On The Air) , SOTA, and field amateur radio. It stands out for its exceptional flexibility and mechanical strength, facilitating frequent transport and assembly.
It offers low losses and excellent shielding, ensuring efficient transmission from HF to UHF. Its construction is optimized to withstand rolling, rapid deployment, and varying outdoor conditions.
THE PRICE IS PER 1 METER / SOLD BY THE METER
It is an ideal solution for operators who need a reliable, lightweight and durable cable, without compromising RF performance during field activations or portable use.
- POTA FLEX 7 coaxial cable (length as purchased)

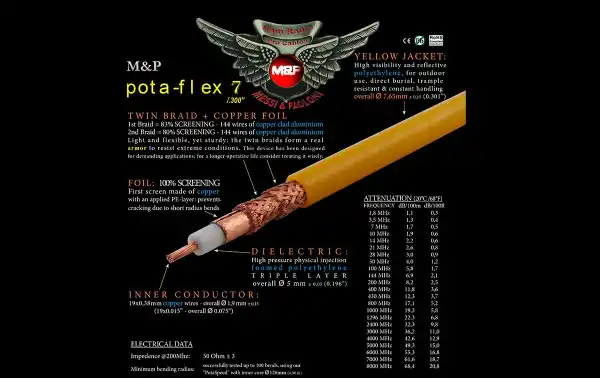

Technical and mechanical characteristics
- Manufacturer: Messi & Paoloni
- Model: POTA FLEX 7
- Type: Flexible low-loss coaxial cable for portable use
- Impedance: 50 ohms ±3
- Frequency range: DC up to approximately 6 GHz.
- Outer diameter: 7.3 mm ± 0.15
- Dielectric diameter: 5.0 mm ± 0.05
- Diameter of the center conductor (live): 1.8 mm ± 0.15
- Central conductor: highly flexible multi-strand copper
- Dielectric: polyethylene expanded by physical injection
- Screen: sheet + tinned copper braid
- Screen coverage: >90%
- Outer covering: High-strength flexible PVC
- Capacity: ~77 pF/m
- Speed factor: ~85%
- Minimum bending radius: ~35 mm
- Operating temperature: -40 ºC to +70 ºC
- Shielding: >100 dB
- UV resistance: yes
- Applications: POTA, SOTA, portable amateur radio, HF, VHF, UHF
- Connector compatibility: specific for 7.3 mm cable and 1.8 mm center conductor
- Color: black
