KPO HF-2500 Coaxial cable low loss 7.3 mm live twisted 7 wires

KPO-HF-2500

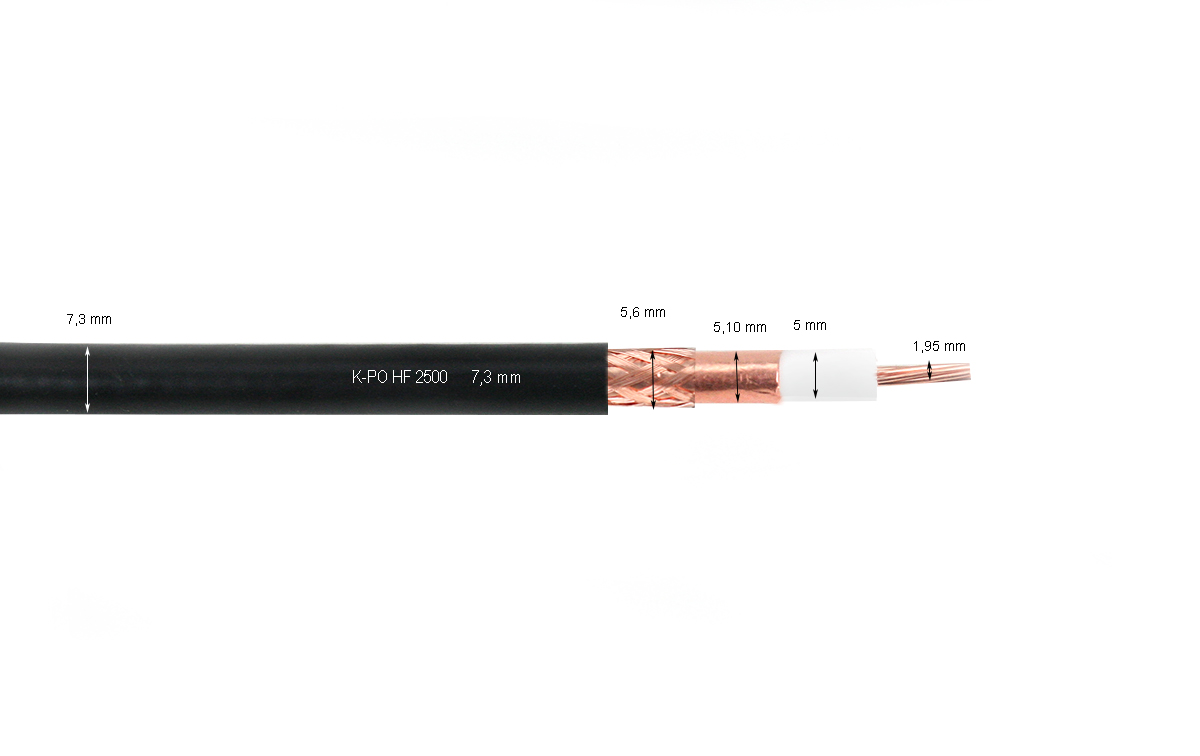

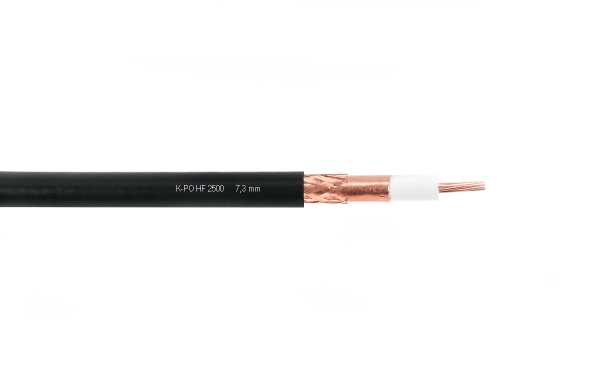

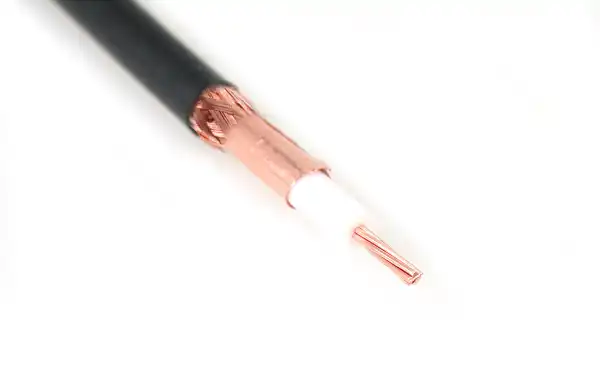

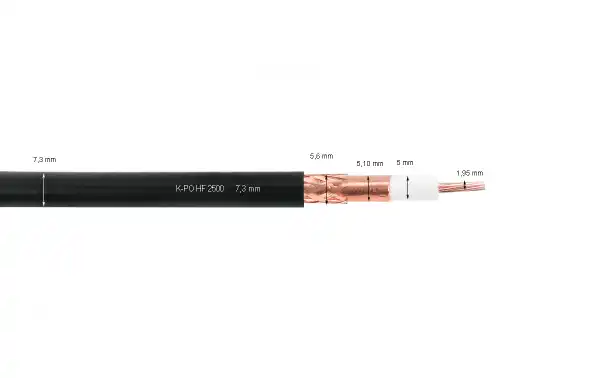

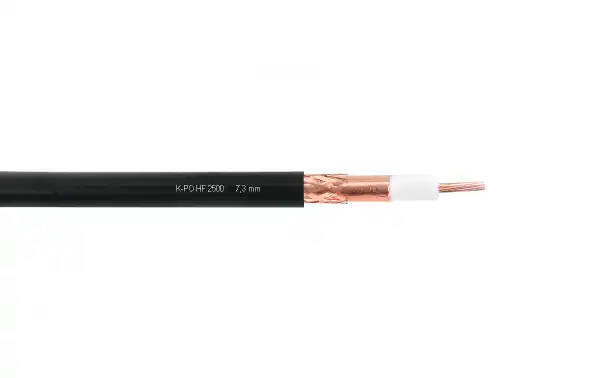

KPO HF-2500 Coaxial cable low loss 7.3 mm live twisted 7 wires total thickness 1.97 mm.
Professional coaxial cable with twisted core (7 wires) and extraordinary flexibility. The outer cover is made of black PVC, also UV resistant. This cable offers exceptional mechanical characteristics and electrical properties. Despite its small dimension (7.3 mm) it electrically outperforms RG 213 T cables (10.3 mm).

THE PRICE IS FOR 1 METER / SALE BY METERS

Examples of losses in dB per 100 meters:
Frequency 3.5 MHz 2.7 dB
Frequency 144 Mhz 14 dB
Frequency 430 Mhz 30 dB
Frequency 1296 Mhz 54 dB

Characteristics

• Nominal Impedance Ohms /- 3 50 Ohms
• Live 7 wires total thickness 1.97 mm
• PVC diameter 7.3 mm
• Minimum bending radius OUT / IN 68/34 mm
• Installation temperature -40 ° to 60 ° C
• Operating Temperature -55° to 85°C
• Capacitance 80 pF/m
• Resistance of the outer conductor 9.8 Ohm / Km
• Inner conductor resistance 7.3 Ohm / Km
• Detection efficiency > 105 dB (A Class)
• Weight (100 m) 8.44 Kg
• Speed Ratio 80%
• Smooth copper inner conductor: 7 x 0.65 mm
• Low density polyethylene dielectric: ø 5.00 ± 0.10 mm
