5890EU ALBRECHT AE-CB RADIO 27 MHZ WITH SIDE BANDS! AM / FM / USB...

5890EU ALBRECHT AE-CB with sides MOBILE Transceiver CB/27Mhz. APPROVED Channels: 40 Modes: AM / LSB / USB / FM. Frequency: 26,965 to 27,405 MHz. Tx power: 4W. (AM / FM) 12W. (SSB) Impedance: 50 Ohms. Power: 13.8 VDC. Scann more Reference AE5890EU

albrecht
AE5890EU
discontinued
We're working in our new page, i'ts possible that you discover some mistakes. In that case, you can notify us clicking HERE.

! New Team of the prestigious German brand ALBRECHT
WITH Multinorm!

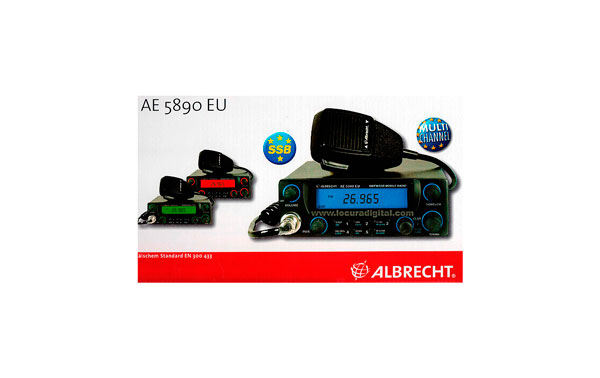

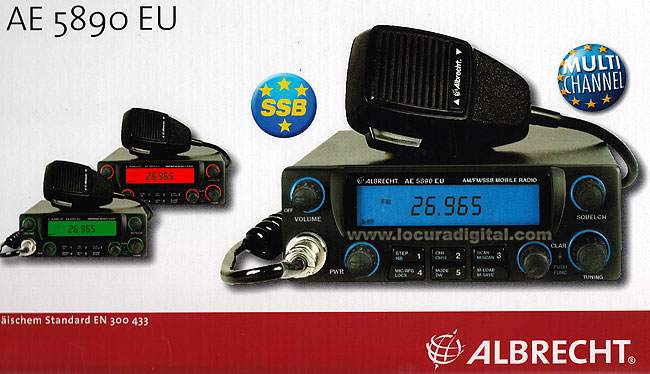

ALBRECHT AE-5890-EU

CB RADIO 27 MHZ WITH SIDE BANDS! AM / FM / USB / LSB!

1 ALBRECHT AE 5800 CB radio

Albrecht AE5800 CB RADIO 27 MHZ WITH SIDE BANDS! AM / FM / USB / LSB!
MOBILE Transceiver CB/27Mhz. APPROVED
Channels: 40 Modes: AM / LSB / USB / FM.
Frequency: 26,965 to 27,405 MHz.
Tx power: 4W. (AM / FM) 12W. (SSB)
Impedance: 50 Ohms.
Power: 13.8 VDC.
Scanner.

MAIN FEATURES

ALBRECHT AE-5890EU

- The PLL tuning provides precise control and high stability frequency to 40 channels available to the team.
- ALBRECHT AE-5890EU modulation has FM, AM and sideband.
- We have a whole liquid crystal display with backlight, 10 which allows us to display information visua1izar in low light.
- Incorporates a rotary switch "RF-G" to adjust the RF gain, very useful when you get a very strong signal.
- Incorporates a knob "MIC-G" to adjust the sensitivity of the microphone amplifier circuit. When using the CB in a vehicle with a high noise level, adjusting this control is improved transmission.
- There is a knob "CHANNEL" channel selection for both TX and RX.
- Adds a button "CALL" direct access to channel 9.
- Key features "SCAN" to the channel scan.
- Incorporates a noise limiter circuit (NB / ANL) to reduce background noise of weak signals.
- Manual adjustment Squelch (SQL) that eliminates background noise when no signal is received.
- There is a jack-type connector for connecting an external speaker that allows the audio signal from the received signal is heard through an external speaker.
- Adds a button "LCR" that allows us to tune in, pressing this key, the last channel that we have carried out a transmission.
- Display on the display, using bar sequence, the level of the RF signal transmitted and received RF se?e.
- ALBRECHT AE-5890E but is designed primarily as a mobile computer can also be used as a CB base station connecting to a source of DC power and a sound external antenna. (To use the CB as a base station, your dealer will advise you on your installation, power supply and the right antenna).

5890EU ALBRECHT AE-CB RADIO 27 MHZ WITH SIDE BANDS! AM / FM / USB / LSB! VALID FOR EUROPE


Kit Contents

1 ALBRECHT AE 5890 CB radio
Support for station 1
1 microphone metal bracket
1 Power cord with fuse

Albrecht AE5800 CB RADIO 27 MHZ WITH SIDE BANDS! AM / FM / USB / LSB!

Front

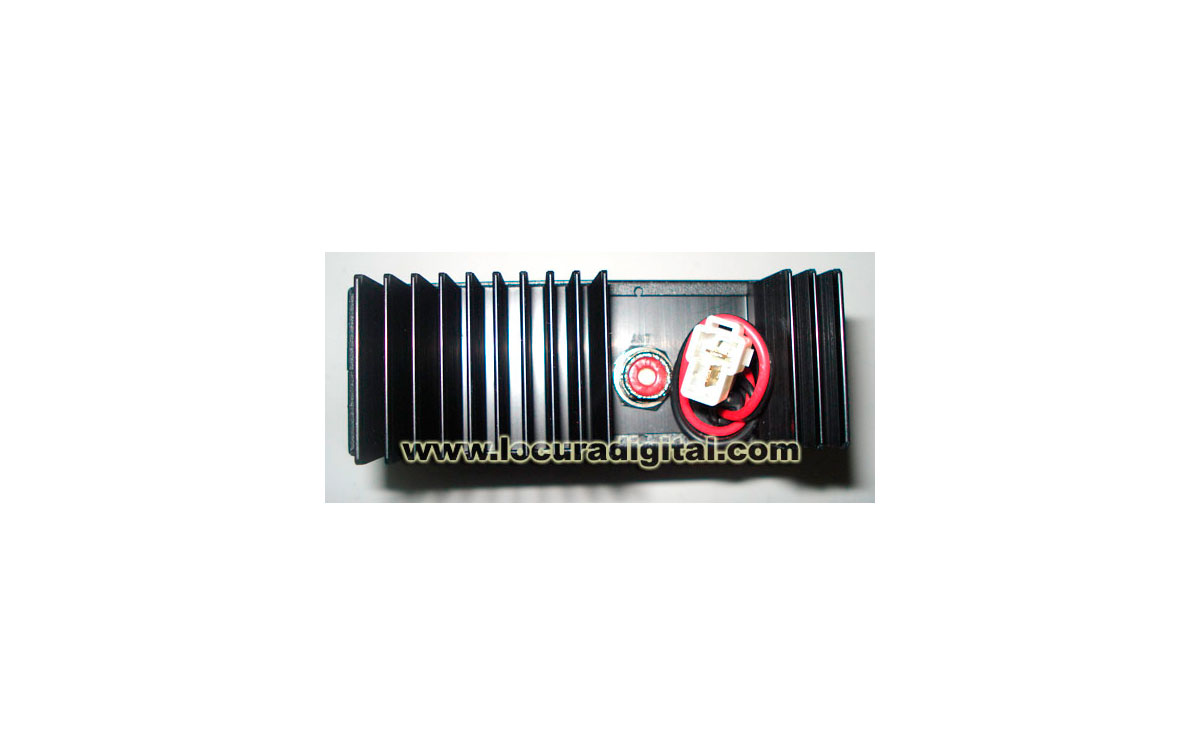

Rear View

ITHACA JOPIX

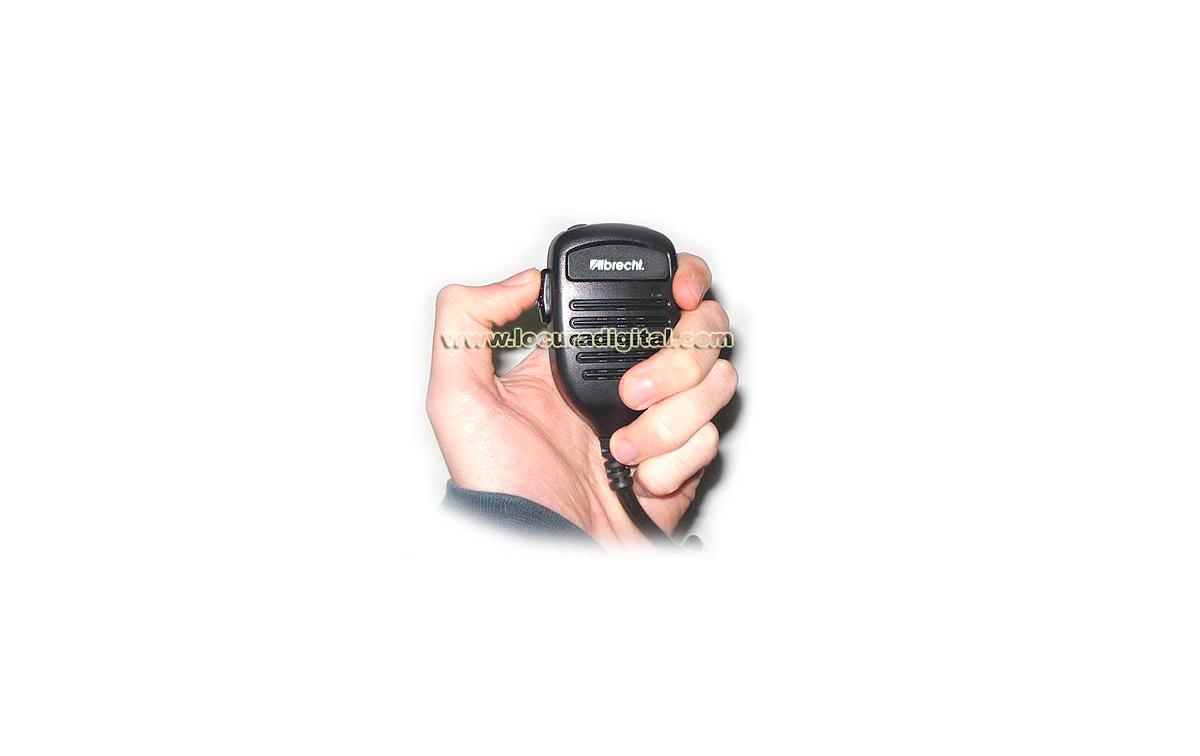

Front Microphone

1 ALBRECHT AE 5800 CB radio

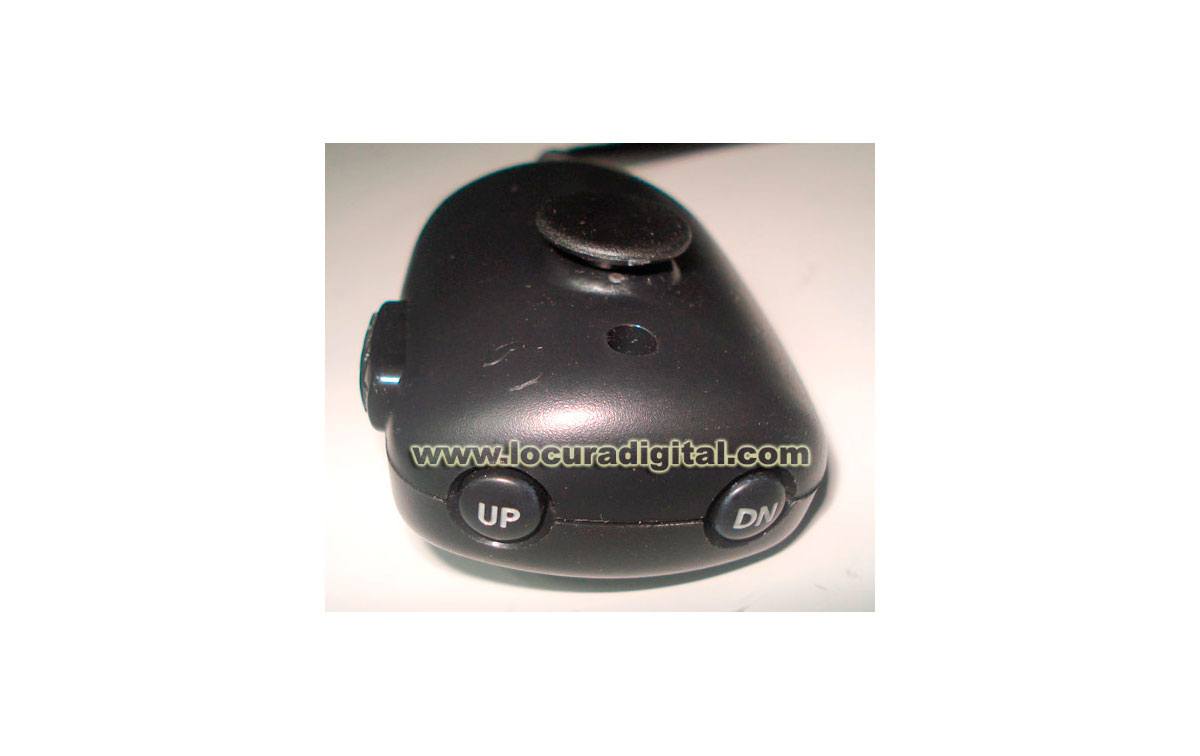

Mic side view

ITHACA JOPIX

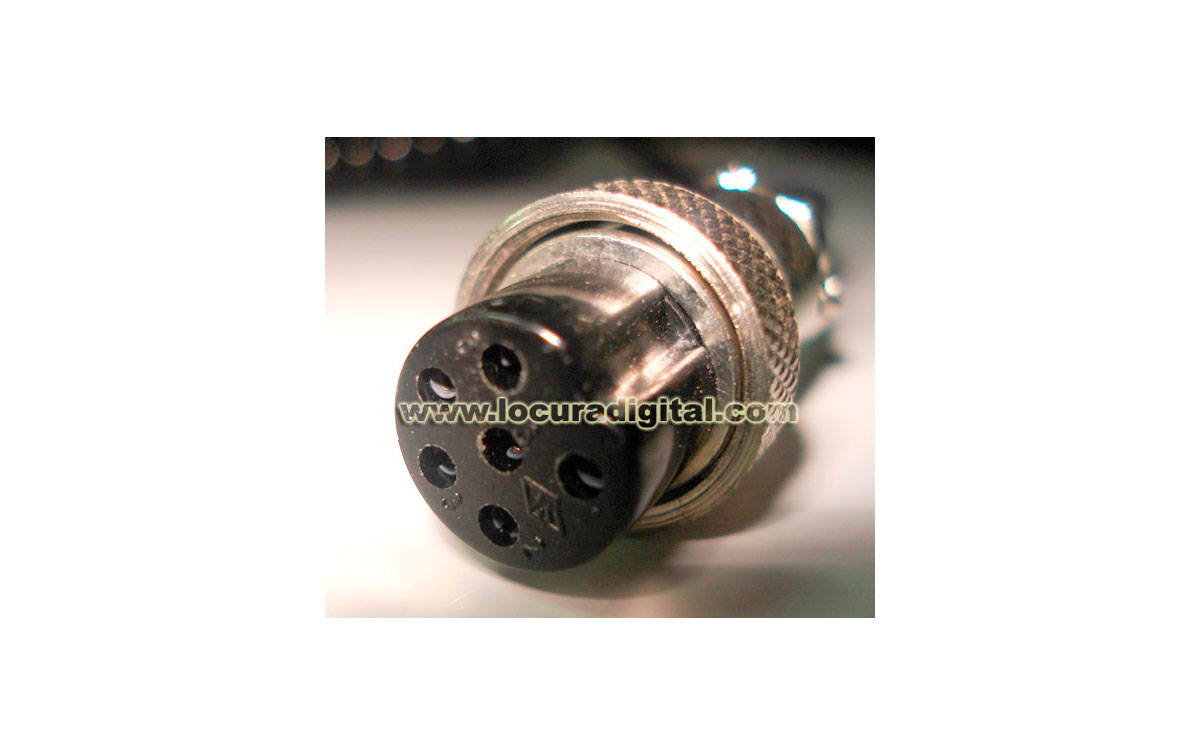

Microphone connector

ITHACA JOPIX


FEATURES

40 channels AM / FM / SSB.
LCD Display index of functions.
Keypad microphone UP-DOWN.
4 W AM-FM 12W SSB
Call channel memory channels
Dual Watch Scan-
Size 153x53x240mm
Power 13.8 Vdc.

GENERAL

- Frequency: 26,965 MHz to 27,405 MHz
- Frequency control: PLL synthesized.
- Channels: 40.
- Type of modulation: AM / FM / SSB.
- Supply voltage: 13.2 VDC (nominal).
- Antenna impedance: 50 n.
- Duty cycle: 03/03/54 (Tx-Rx-Sleep).
- Microphone: Dynamic type.
- Dimensions (mm): 153 (width) x 240 (D) x 53 (H).
- Weight: 1.2 Kg
- Accessories included: Support the "U" for fixing the CB,
microphone, microphone stand, power cable with built-in fuse, screws and washers.

TRANSMITTER

- RF output power: 4 W (AM / FM) and 12 W PEP (SSB).
- Type of emission: F3E (FM), A3E (AM) and BE (SSB).
- Consumption: 5"0(approximate, with transmission in SSB).
- Spurious emissions: Less than 4 nW (-54 dBm).
- Microphone Sensitivity: 4 m V (FM and AM).

RECEIVER

- Intermediate frequencies: FI: 10,695 MHz / 2a FI: 455 kHz.
- Sensitivity: 0.5. TV to 20 dB SINAD (FM / AM / SSB).
- Selectivity:> 60 dB to + 10 kHz.
- Rejection of image frequency:> 60 dB.
- Intermediate Frequency Rejection:> 70 dB.
- Adjacent Channel Rejection:> 60 dB.
- Audio output power: 2.5 W into 8 W load.
- Consumption: 500 mA (no signal).
- Receiver Clarifier: 1 kHz.
