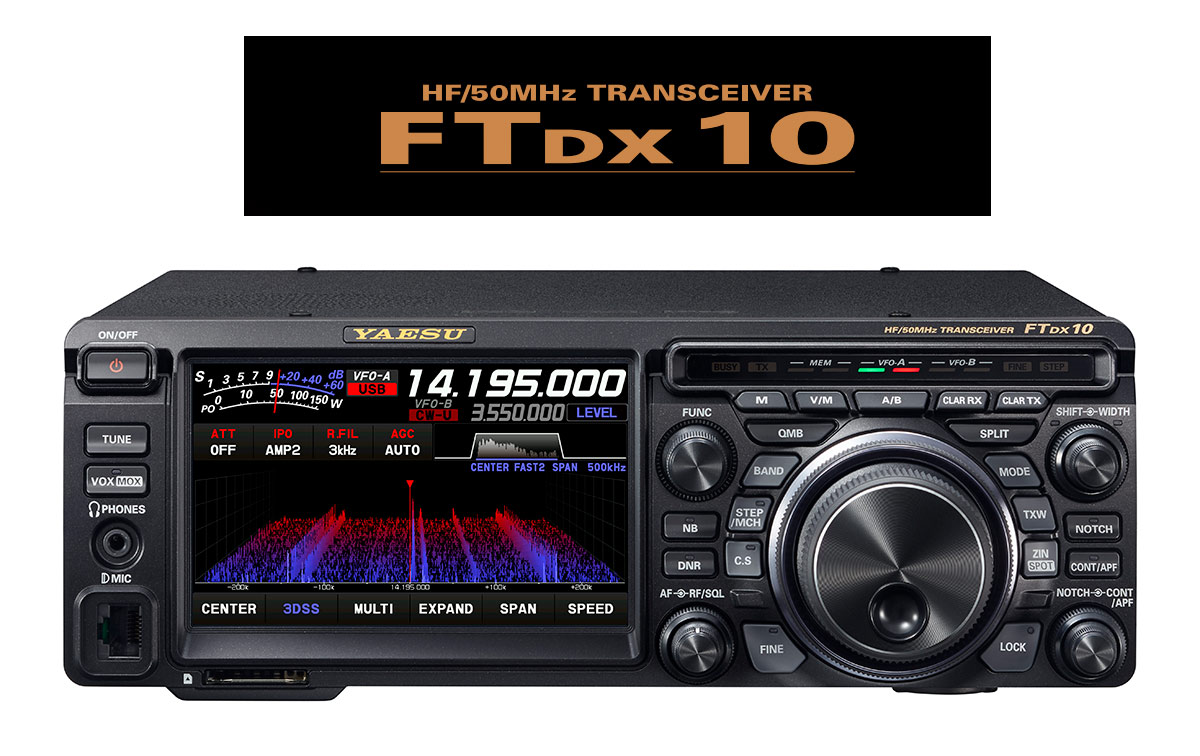

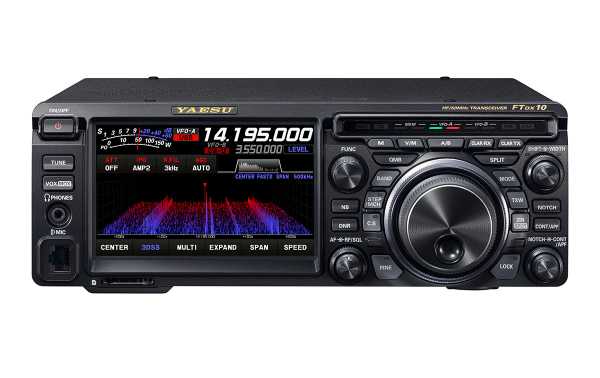

Description FTDX10

YAESU FT-DX -10 HF transmitter 1.8 - 30 Mhz / 50 - 54 Mhz, power 100 watts

Like the FTDX101 series, the new FTDX10 uses Yaesu's hybrid SDR configuration: narrowband SDR and direct sampling SDR. The narrowband SDR receiver emphasizes excellent receiver performance, while the direct-sampled SDR provides a real-time digital processing spectrum. Frequencies in Mhz: TX 1.8-30 MHz to 50- 54 MHz.
Remote operation with optional LAN unit (SCU-LAN10)
Remote operation of the transceiver is possible with the optional SCU-LAN10 and SCU-LAN10 network remote control software. In addition to controlling the basic operations of the transceiver, the versatile oscilloscope displays allow sophisticated operations such as monitoring band conditions on a large screen in a location away from the ham house by connecting to a home LAN.
Bands: 10m, 12m, 15m, 17m, 20m, 30m, 40m, 60m, 80m, 160m
Meters: TX 160 m to 6 m legal amateur radio bands. More information English PDF see here

The power of the Yaesu FT-DX-10 will not leave anyone indifferent: 100W in HF. Includes internal coupler

!! AVAILABLE SOON !!

SCU-LAN10 control installation manual in English PDF: Download here
SCU-LAN10 control operating manual in English PDF: Download here
System Manual (CAT) in English PDF: Download here

Manual in Spanish PDF: Download here
Manual in English PDF: Download here
Manual in French PDF: Download here

yaesu ft-dx-10 emisora hf 1,8 - 50 mhz potencia 100 watios

yaesu ft-dx-10 emisora hf 1,8 - 50 mhz potencia 100 watios

Kit contents
  • 1 Yaesu FT-DX-10 transmitter
  • 1 SSM-75E Hand Microphone
  • 1 power cord
  • 1 Manual in Spanish

yaesu ft-dx-10 emisora hf 1,8 - 50 mhz potencia 100 watios

Features

  • Frequencies in Mhz: TX 1.8-30 MHz to 50- 54 MHz
  • Bands: 10m, 12m, 15m, 17m, 20m, 30m, 40m, 60m, 80m, 160m
  • Working modes: SSB / CW / AM / FM / RTTY / PSK
  • Automatic coupler included
  • Push-Pull Power MOSFET PA 5 - 100W transmit power (5 - 25W AM)
  • 15 separate band pass filters
  • 5 "touchscreen with 3D Spectrum Stream display
  • Hybrid SDR Receiver - 9 MHz ZF Downconverter Direct Sampling SDR
  • 15 separate band pass filters
  • Quick memory bank
  • External display connector
  • RF and AF transmission monitor
  • Decoder for CW, RTTY and PSK-31
  • Microphone amplifier with three-stage parametric equalizer (SSB / AM mode)
  • Consumption 100 watts 23 Amps
  • SSM-75E Handheld Microphone
  • SD card slot
  • High speed automatic antenna tuner with a large capacity 100 channel memory
  • Voltage 13.8 volts
  • Roofing filter 600, 3000, 15 kHz -300 Hz- (optional)
  • Speaker: SP-30 designed for the new FTDX10 (optional)
  • Spanish Manual

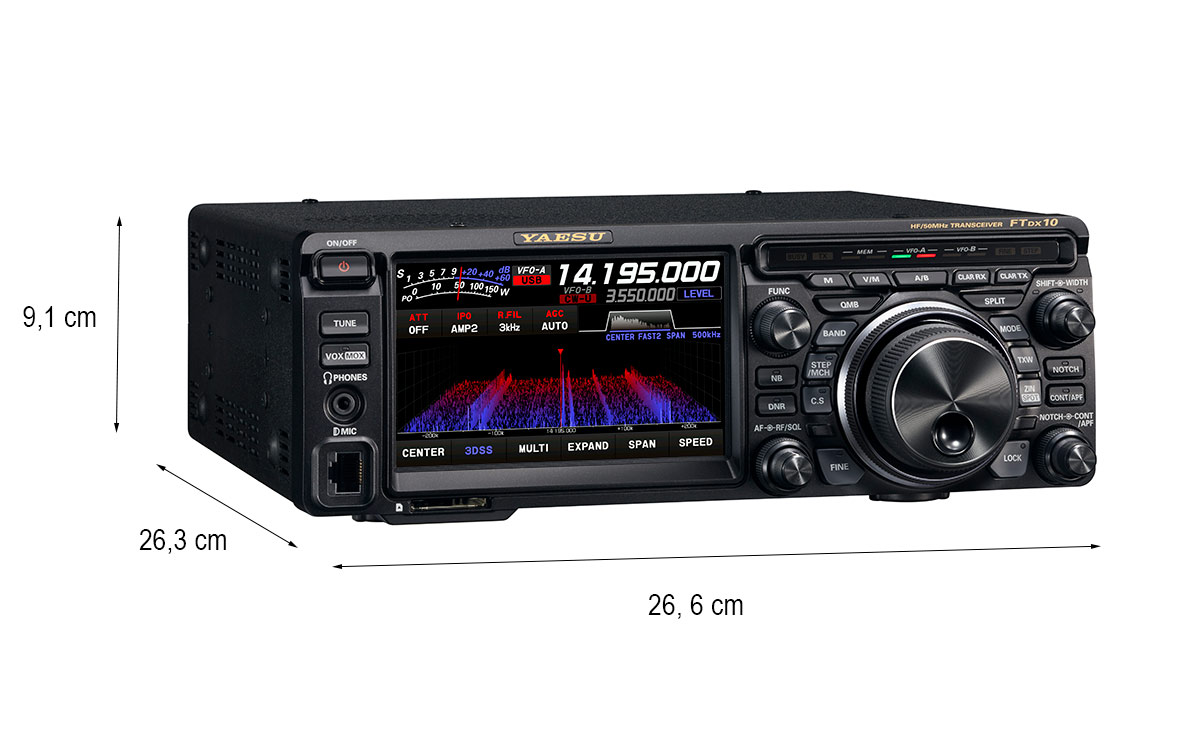

  • Measures 266 x 91 x 263 mm
  • Weight 5.9 kg.
