ICOM IC-7300

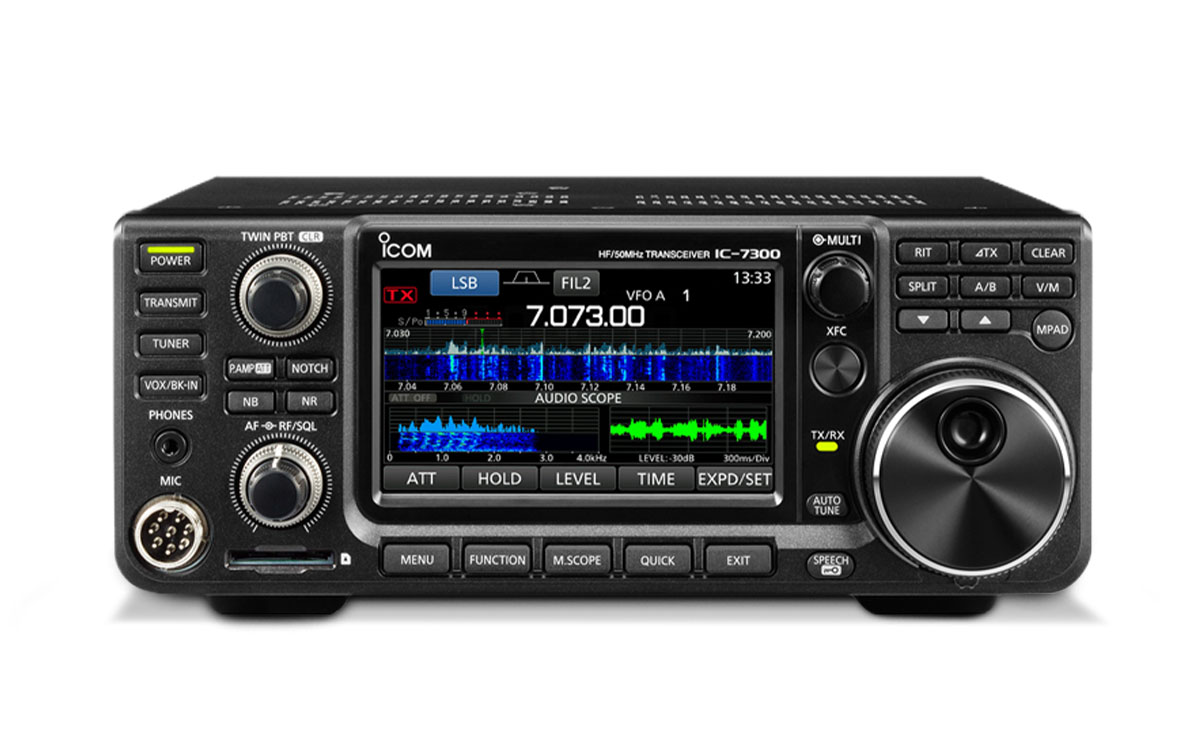

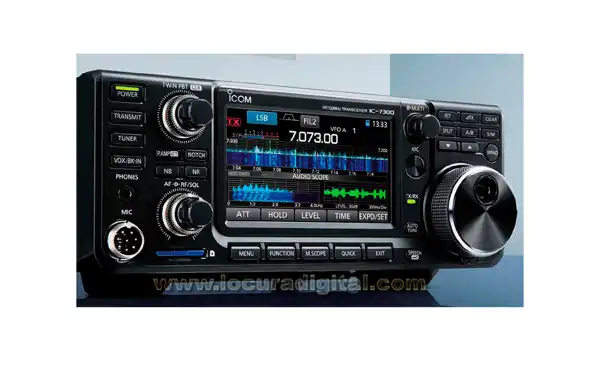

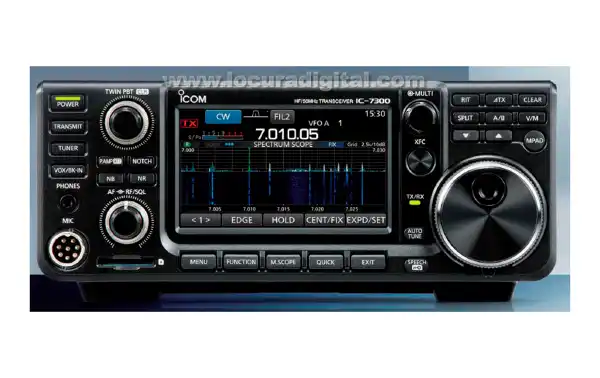

ICOM IC-7300 Base Transceiver HF / 50 MHz.
New technology is changing the way receivers are being designed and the IC-7300 is an industry first as an RF, Direct Sampling System is being used in an entry level HF radio.
The IC-7300 employs an RF direct sampling system, where RF signals are directly convert to digital data. Then processed in the FPGA (Field-Programmable Gate Array), making it possible to simplify the circuit construction as well as reduce noise that can mask weak signals.
The new IP improves the 3rd order intercept point (IP3) performance improving the ability to copy a weak signal that is adjacent to either a strong interfering signal. In this process, A/D converter is optimized to reduce or eliminate signal distortion.
The IC-7300s RMDR is about 97dB (typical value) improving the Phase Noise characteristics by about 15dB (at 1 kHz frequency separation). The superior Phase Noise characteristics reduce noise components for both receive and transmit signals.
The large 4.3 color TFT touch LCD offers intuitive operation of functions, settings, and various operational visual aids such as the band scope, waterfall function, and audio scope.
Like on the high-end rigs, the waterfall shows a change of signal strength over a period of time and allows you to find weak signals that may not be apparent on the spectrum scope.
TX: 1.800 to 1.999, 3.500 to 3.800, 7.000 to 7.200, 10.100 to 10.150,
14.000 to 14.350, 18.068 to 18.168, 21.000 to 21.450, 24.890 to 24.990,
28.000 to 29.700, 50.000 to 52.000, 70.000 to 70.500 Mhz
Kit Contents
- 1 IC-7300 Base transceiver
- 1 Microphone HM219
- 1 Power cable 13.8V
