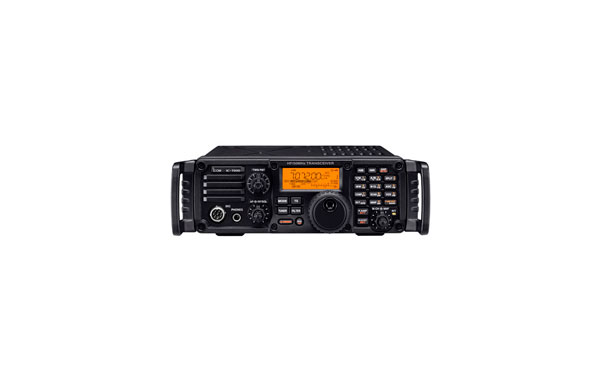

ICOM IC-7200. EMISORA MONOBANDA ICOM HF 50 Mhz

ICOM IC-7200. EMISORA MONOBANDA ICOM HF 50 Mhz Completamente diseñado para su uso en expediciones, el nuevo Icom IC-7200 no esconde su aspecto explorador, dando una imagen de equipo rudo y fuerte. Cubre las bandas de HF y 50 MHz y tiene DSP de fre more Manufacturer: icom Reference IC7200

not available
962,54 incl. VAT
795,49€ w/o VAT
We're working in our new page, i'ts possible that you discover some mistakes. In that case, you can notify us clicking HERE.

ICOM IC-7200 . SINGLE BAND TRANSMITTER ICOM HF 50 Mhz

Completely designed for use in expeditions, the new Icom IC-7200 does not hide its explorer aspect, giving an image of a tough and strong team. It covers the HF and 50 MHz bands and has an intermediate frequency DSP. The output power is 100 watts.

Taking into account that it is developed for use in activations outside the usual base, it has been provided with handles (optional) to facilitate transport. It also resists the intrusion of water so it can be used outdoors.

ICOM IC7200

MAIN FEATURES

DSP

Incorporates DSP technology. Thanks to this function the Icom IC-7200 is comparable to its superiors.

AGC MANAGEMENT LOOP
Distortion and blocking of strong nearby signals is prevented thanks to the DSP functions inside the AGC. AGC time constants can be selected from fast, slow, and off for each operating mode
from fast, slow, and off for each operating mode.

ICOM IC7200

DIGITAL FILTER
They will never require optional filters for the IC-7200. Built-in digital filter allows you the flexibility to select filter width and shape soft or hard
* The filter is only selectable for SSB and CW modes.

ICOM IC7200

MANUAL NOISE FILTER
The manual noise filter delivers over 70dB of attenuation.
Strong burying tones will be eliminated without affecting the performance of the AGC. At the bottom right of the front panel, you will find a control button dedicated to adjusting the filter frequency.

TWIN DIGITAL PBT
Only Icom brings you the Twin Digital PBT! Adapt your bandwidth with the PBT electronically by changing the top and bottom edges of the filter. Depending on the use of the concentric knobs, you can either narrow the IF passband, or change the entire passband to eliminate intrusive signals.

NOISY DIGITAL REDUCTION
Digital Noise Reduction reduces background noise and improves the signal-to-noise ratio. The noise reduction level is adjustable in 16 steps. This improves the readability of voice and data signals.

DIGITAL NOISE BLANKER
The digital noise blanker reduces pulse-type noise like starting a motor. The level and width (duration cutoff) are adjustable in 100 steps.

HIGH TRANSMITTER STABILITY
The DDA (Department for Disarmament Affairs) creates a clear and clean signal transmission and improves the C / N ratio. With a dual cooling system, the IC-7200 provides stable high quality output even during high duty factor operation.

ICOM IC7200

USB PORT FOR CONTROL FROM PC
The IC-7200 can be controlled by a personal computer through a USB port that uses the IC-V data format. In addition, the modulator and received audio can also be transferred over the USB cable. Using the appropriate external software, you can record incoming calls and / or transmit pre-programmed messages from your personal computer.

RF SPEECH COMPRESSOR
The digital RF compressor increases your average talk power in SSB mode. Even when the compression level is higher, the DSP RF compressor provides low audio distortion.

MODE OF OPERATION CW
Selectable CW carrier point (USB OR LSB) and adjustable CW fretboard is also standard.

WATER RESISTANT CHASSIS
The waterproof protection technologies that are used in Icom marine radios are applied to the buttons and knobs on the front panel to provide a measure of protection against water intrusion.
* IC-7200 is not waterproof.

STURDY DESIGN FOR OUTDOOR USE
The rugged design of the IC-7200 means that your enjoyment is not limited to just one use at home.

"REAR BUMPER"
The "rear bumper" protects various connectors on the rear panel and lets you support the radio at its rear end when the antenna is disconnected, for example to move or package the radio.

ICOM IC7200

OTHER FEATURES
* RIT
* VOX
* 0.5ppm frequency stability
* LCD backlight (Hi / Lo / Off)
* IC-V interface
* 201 memory channels
* Built with 20dB attenuator
* Preamplifier
* Dial lock
* Automatic TS function
* 1Hz step tuning
* Band stacking record
* Voice synthesizer
* Quick cleft
* Front speaker
* Quick setting mode



FEATURES

general

Frequency coverage * 1
USA Version
RX
TX




0.030% u2013 60.000MHz * 2
1.800% u2013 1.999MHz
3.500% u2013 3.999MHz
5.3305, 5.3465, 5.3665, 5.3715, 5.4035MHz * 3
7.000% u2013 7.300MHz
10.100% u201310.150MHz
14.000% u2013 14.350MHz
18.068% u201318.168MHz
21.000% u2013 21.450MHz
24.890% u201324.499MHz
28.000% u2013 29.700MHz
50.000% u201354.000MHz
* 1 Frequency ranges vary depending on version.
* 2 Some frequency ranges are not guaranteed.
* 3 USB only
Mode USB, LSB, CW, RTTY (FSK), AM
Number of channels 201 Ch. (199 regular, 2 scan edages)
Antenna impedance 50% u03A9 unbalanced (Tuner off)
Antenna connector SO-239 (50% u03A9)
Power supply requirement: 13.8V DC ± 15% (negative sound)
Temperature range -10 ° C to 60 ° C; 14 ° F to 140 ° F
Frequency stability

Less than ± 0.05ppm

(0 ° C to 50 ° C, after warm up)

Frequency resolution 1Hz (minimum)
Power consumption Tx Max. power: 22.0A
Rx Stand-by: 1.3
Max. audio: 2.0V
Dimensions 214 (W) × 84 (H) × 281 (D) mm;
9 1% u2044 2 x 3 5% u2044 16 x 11 1% u2044 16 in.
Weight 5.5kg; 12.1 lb

Transmitter

Output power
SSB, CW, RTTY, 2-100,
A.M
137kHz, CW *
(continuously adjustable)
2% u2013100W
1-40W
More than% u201320dBm
* Depending on version.
Modulation system
SSB
A.M

DPSN modulation
Digital low power modulation
Spurious emission Less than -50dB (HF bands)
Less than -63dB (50MHz band)
Carrier suppression More than 50dB
Unwanted sideband suppression More than 50dB
% u03B4TX variable range ± 9.999kHz
Microphone impedance 600% u03A9 (8-pin connector)

Receiver

Receive system Double conversion super-heterodyne system
Intermediate frequencies

64.455MHz (Main receiver)
455MHz (Sub receiver)
15.625kHz
Sensitivity (10dB S / N, Preamp ON, Filter shape sharp)
SSB, CW

A.M

Less than 0.16µV (1.8-29.995MHz)
Less than 0.13µV (50MHz hand)

Less than 13µV (0.5-1.8MHz)
Less than 2µV (1.8-29.995MHz)
Less than 1µV (50MHz)
Squelch sensitivity (Pre-amp: ON)
SSB, Threshold

Less than 5.6% u03BCV
Selectivity (representative value)
SSB (BW: 2.4kHz sharp)

CW (BW: 500Hz sharp)

RTTY, PSK31 (BW: 350kHz)

AM (BW: 6kHz)
More than 2.4kHz /% u20136dB
Less than 3.6kHz /% u201360dB
More than 500Hz /% u20133dB
Less than 900Hz /% u201360dB
More than 360Hz /% u20136dB
Less than 650Hz /% u201360dB
More than 6.0kHz /% u20133dB
Less than 15.0kHz /% u201360dB
Spurious and image rejection ratio More than 70dB (except 1/2 IF through on 50MZz band)
Audio output power More than 2.0W at 10% distortion with an 8% u03A9 load
RIT variable range ± 9.999kHz
EXT SP connector 2-pin connector 3.5 (d) mm (1% u2044 8% u2033) / 8% u03A9 × 2 (For main and sub bands)

All stated specifications are subject to change without notice or obligation.

The LCD display may have cosmetic imperfections that appear as small or dark spots. This is not a malfunction or defect, but a normal characteristic of LCD displays.
