BARRISTER
Reference BRV400 | BARRISTER EAN 8435371903827

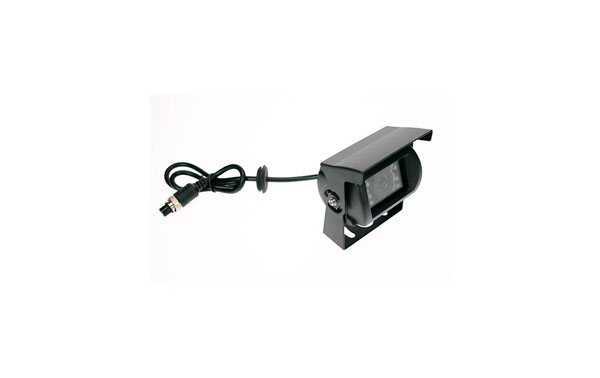

BARRISTER BRV400 Camera for rear-view systems. Automatically reverses the...

BARRISTER BRV400 Camera for rear-view systems. Automatically reverses the vision. The camera is very robust and includes a mounting bracket to keep it simple. Thanks to this bracket we can set the camera angle. It includes cutting edge technolog

Make the first review

84,46 VAT included 69,80€ excl. VAT

Additional Services

Are you one of those who prefer not to wrap gifts? We do it for you!

With the Paper Gift Service, you will receive your product wrapped and ready to deliver to your recipient!

What if the recipient is you? Why not?

We all like to open a gift from time to time, so do not cut and hit the whim! We assure you that we will surround you with all the affection of the world.

This service is available for the following countries: España - Peninsula y Baleares, Canarias, Alemania, Bélgica, Eslovaquia, Eslovenia, Estonia, Francia, Grecia, Holanda, Irlanda, Italia, Letonia, Luxemburgo, Noruega, Polonia, Portugal, Reino Unido, República Checa, Suecia, Andorra, Austria, Bulgaria, Chipre, Dinamarca, Finlandia, Gibraltar, Hungría, Malta, Mónaco, Rumania, Suiza, Ceuta y Melilla, Gibraltar, Francia Corcega, Portugal - Azores y Madeira.

If in the purchase process you select a country, that are not specified in the list, we will delete automatically the service. Therefore you will not be charged anything. We are working to improve our services. So we will try, of course, to have this service in all countries.

available. Estimated delivery 1-2 days. available in shop Delivery price from 6,50€

Description BRV400


ref: BRV400 BARRISTER rear camera for rear view systems

The camera is very robust and incorporates a support for easy assembly. Thanks to this support we can fix the angle of the camera. It includes cutting-edge technology that detects light. The moment the camera detects that there is no lighting, it goes into night mode. La cámara es muy robusta e incorpora un soporte para que el montaje sea sencillo. Gracias a este soporte podemos fijar el ángulo de la cámara. Incluye tecnologia punta que detecta la luz. En el momento en que la cámara detecta que no hay iluminación, pasa al modo noche.


Reversing camera for retrovision systems

 Cámara marcha atras para sistemas de retrovisión

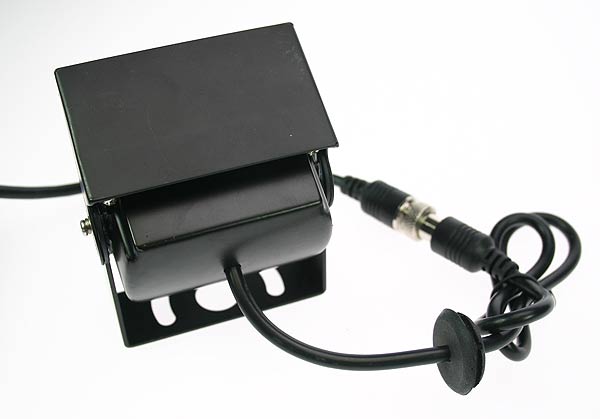

BARRISTER BRV400

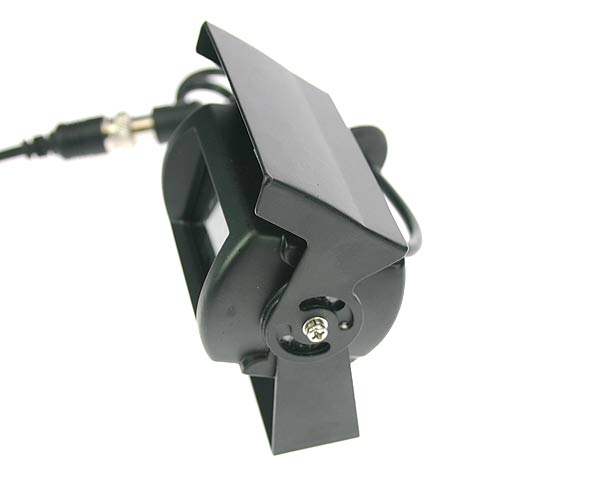

  BARRISTER BRV400

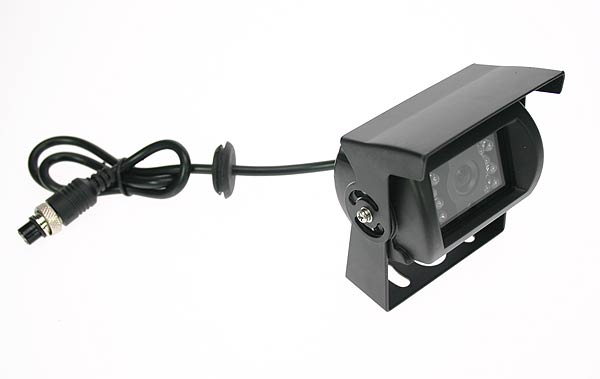

  BARRISTER BRV400

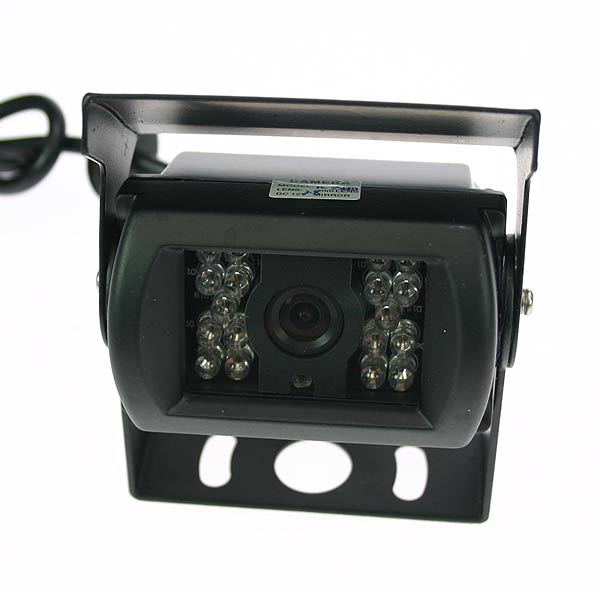

BARRISTER BRV400

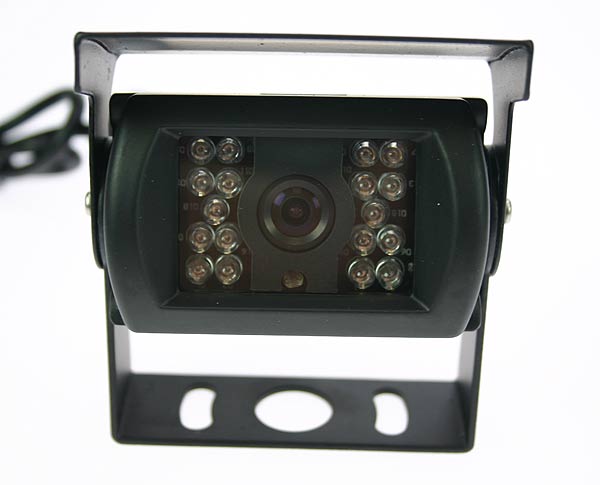

BARRISTER BRV400

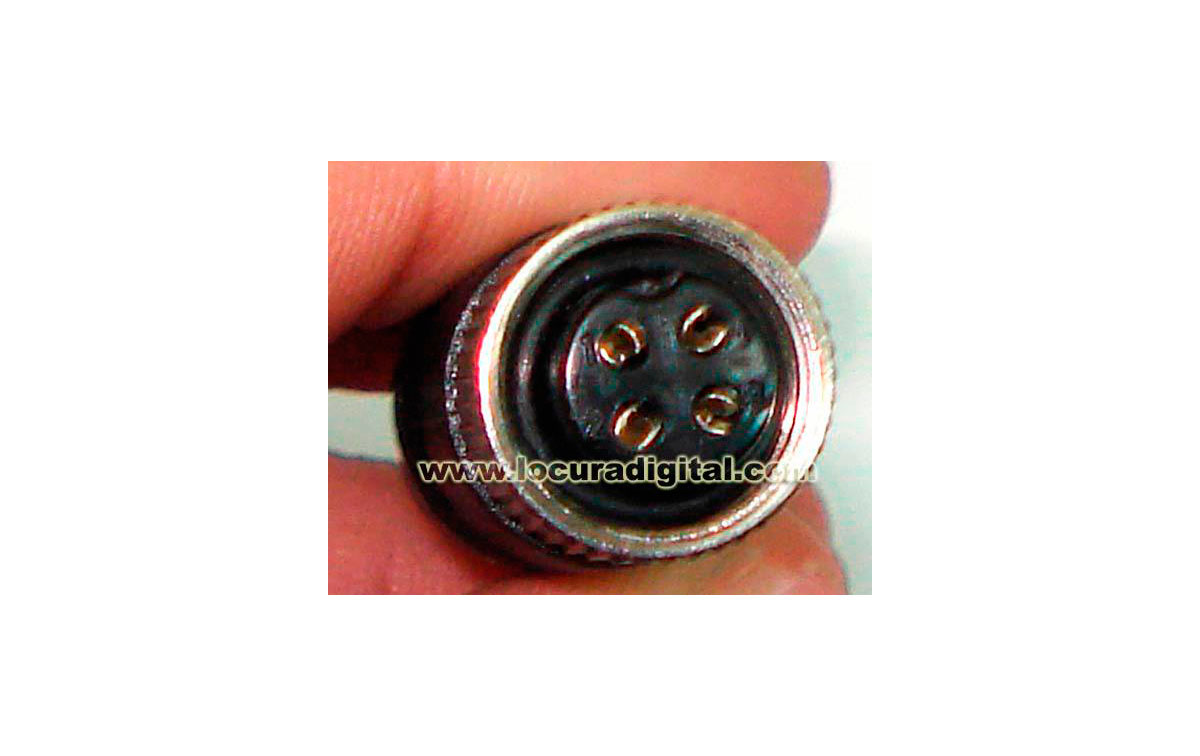

Camera reversing connector

Conector  Cámara marcha atras

DF8083S Cámara marcha atras para sistemas de retrovisión






CHARACTERISTICS CARACTERÍSTICAS

Image sensor Input voltage Lens: Scanning system Resolution Signal / noise ratio Video signal output Gamma ray characteristic Internal synchronization Minimum lighting IR projection distance Energy consumption Water resistance
Camera

Camera



Sensor de imagen

1/3

Color CCO 1/3 Color CCO

Voltaje de entrada

DC12V ± 15% (35OrnA)

DC12V ± 15% (35OrnA)

Lente:

2.t 3.8mm (Board)

2.t 3.8mm(Board)

Sistema de escaneo

2: 1 link

2:1 lnterlace

Resolución

380TV llne
380TV llne

~ 48dB (AGC Off)

~ 48dB(AGC Off)

1.0Vp p 75 ohm

1.0Vp p 75 ohm

0.45

0.45

SyncSystem

SyncSystem

OLux (IR LEO ON)

OLux (IR LEO ON)

6 meters

6 metros

2W

2W

IP69

IP69

Chassis material
Metal

Material del chasis

Metal

Camera weight and support
380g

Peso de camara y soporte

380g

Operating temperature
10 · C 50'C

Temperatura de funcionamiento

10·C 50'C
