BARRISTER BRV9 CAR REVERSE CAMERA 1 CAMERA WITH POSSIBILITY TO CONNECT...

BARRISTER BRV9 CAR REVERSE CAMERA 1 CAMERA WITH POSSIBILITY TO CONNECT WITH 4 CAMERAS IN TOTAL. Camara reversing maneuvers BARRISTER + 7 inch Monitor - BLACK HOUSING rear view system. 7 inch TFT LCD COLOR PARKING AID SYSTEM FOR CAR. Ideal for c more Manufacturer: barrister Reference BRV9

available
296,45 incl. VAT
245,00€ w/o VAT
Delivery price from 30,25€


BARRISTER BRV9

! BACK GEAR KIT 1 CAMERA VISION!





BARRISTER BRV9 CAR REVERSE CAMERA 1 CAMERA WITH POSSIBILITY TO CONNECT WITH 4 CAMERAS IN TOTAL.

Barrister Camara reversing maneuvers 7 inch Monitor - BLACK HOUSING
rear view system. 7 inch TFT LCD COLOR
PARKING AID SYSTEM FOR CAR.
Ideal for campers, caravans, trucks, vans, etc..

Input voltage 12 or 24 volts

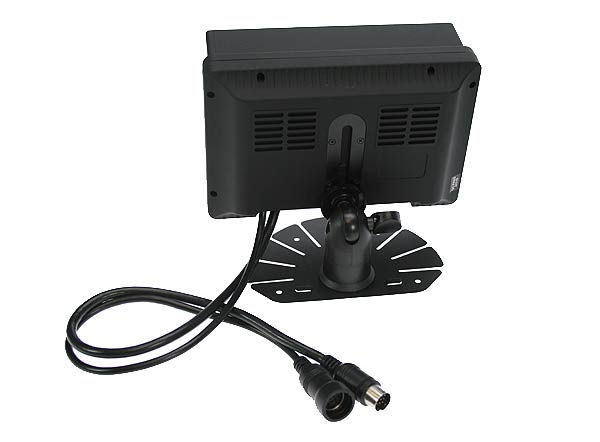

Monitor 7-inch TFT LCD.

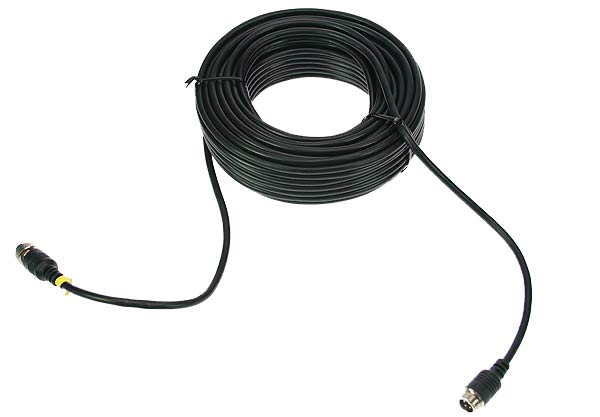

20 meter connection cable .
Supplied with all installation accessories
!! WORTH UP TO 4 CAMERAS CONNECTIONS!


 BRV9 BARRISTER Camera for reversing maneuvers 7 inch Monitor - BLACK HOUSING

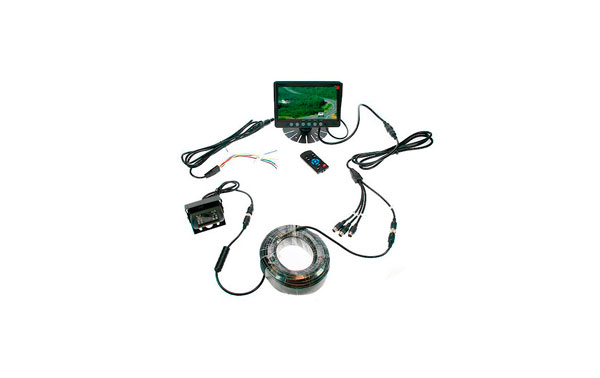

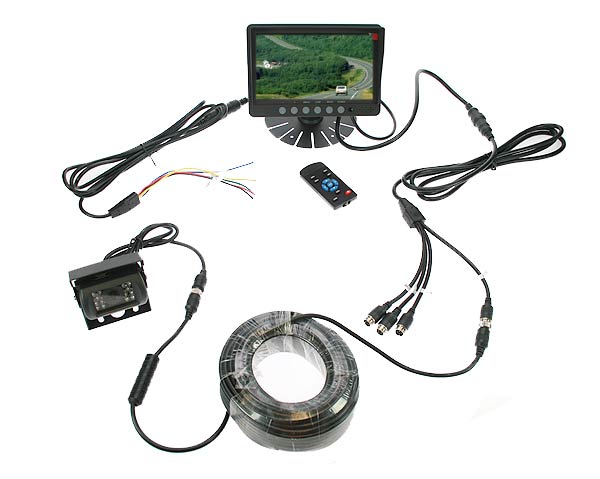

The kit is composed of a 7-inch monitor includes an outer chamber of color. This camera is placed in the rear of the vehicle, at all times allowing you to see what's behind.

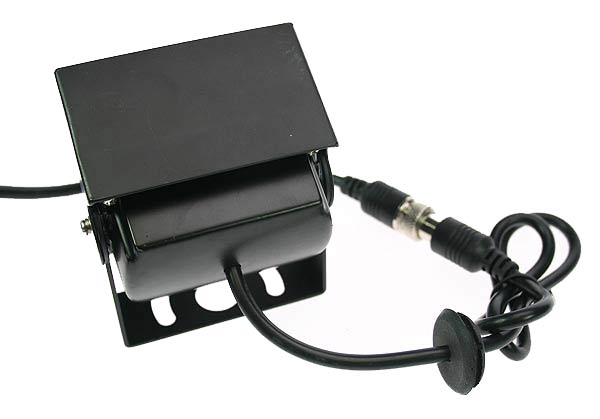

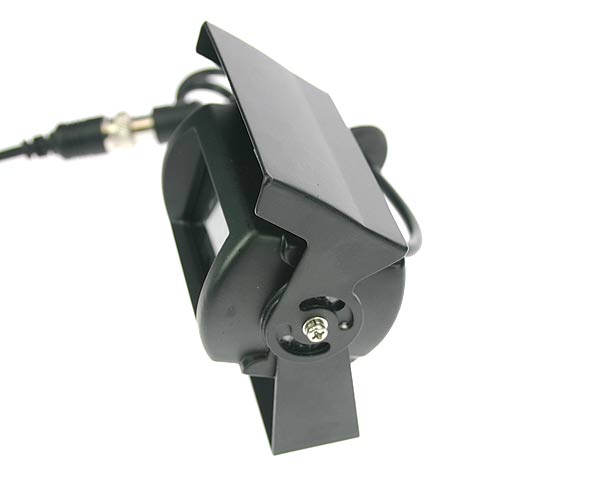

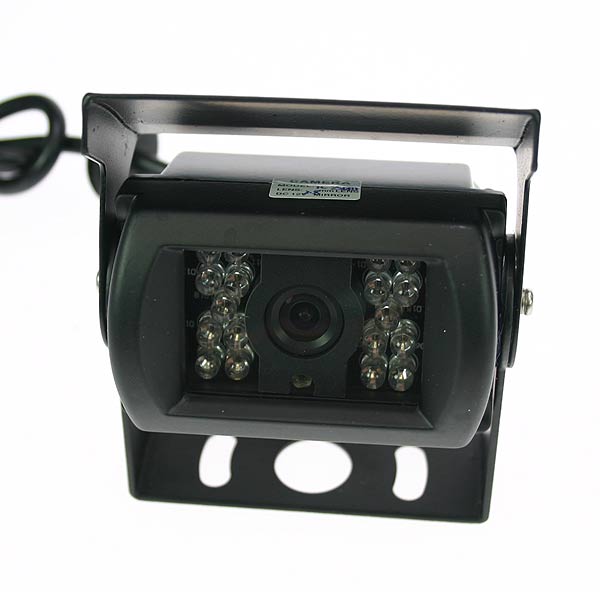

The camera is very robust and includes a support assembly is simple. Thanks to this support we can set the camera angle. Includes tip technology that detects light. At the moment the camera detects no light, goes to night mode.

The VIDEO enter the monitor by the cable that incorporates.The monitor can reverse the image. The monitor includes a screen protector, protect from light, offering a clean and sharp at all times.

Ideal for campers, caravans, trucks, vans, etc.. To reverse maneuvers, parking, loading, vehicle security and surveillance, etc..

Subminister Kit with all accessories needed for assembly
Monitor 7-inch TFT LCD.
20 meter connection cable.
Supplied with all installation accessories.

POSSIBLE USES

Continuous Vision Camera

Connecting the monitor to the camera via the connecting cables get the picture at all times.

BARRISTER BRV9 KIT2 KIT2 CAMARA MARCHA ATRAS DE VEHICULOS 2 CAMARAS

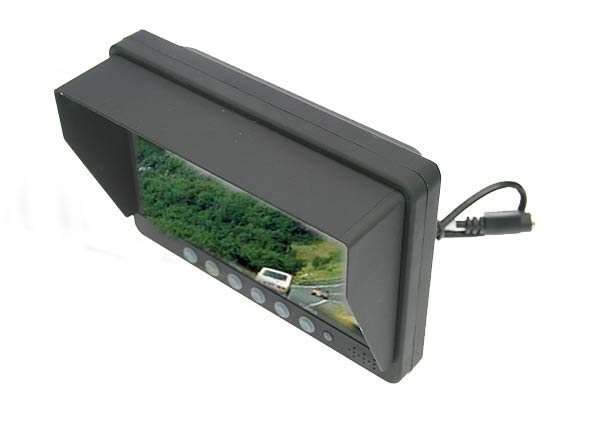

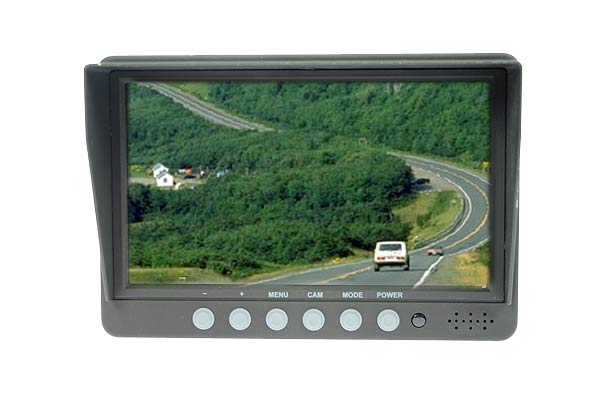

MONITOR BRV 700 COLOR 7 PULGADAS



 brv9





MONITOR BRV 700 COLOR 7 PULGADAS



ref: BRV700



 brv9



 brv9



BARRISTER BRV9

BARRISTER BRV9

BARRISTER BRV9 CAR REVERSE CAMERA 1 CAMERA WITH POSSIBILITY TO CONNECT WITH 4 CAMERAS IN TOTAL.



BARRISTER BRV9 CAR REVERSE CAMERA 1 CAMERA WITH POSSIBILITY TO CONNECT WITH 4 CAMERAS IN TOTAL.

BARRISTER BRV9

BARRISTER BRV9

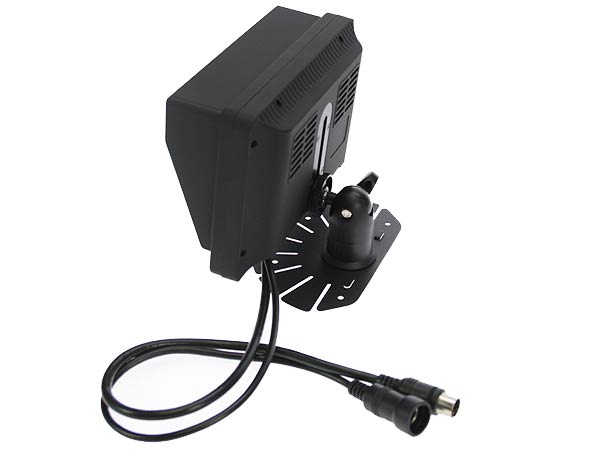

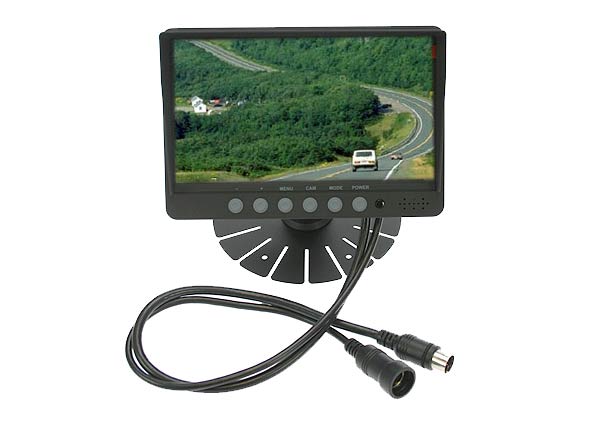

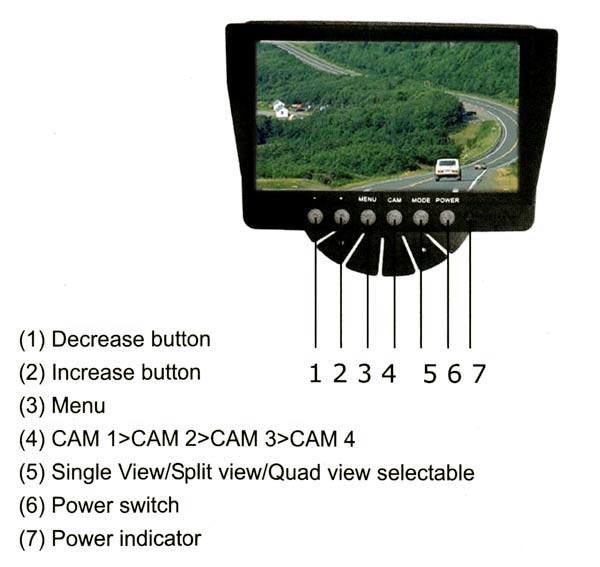

  FEATURES


 BRV9
1 - DOWN
2 - INCREASE
3 - MENU
4 - VIEW CAMERA 1,2,3,4
5 - FULL SCREEN MODE or 4 IMAGE DISPLAY IMAGES
6 - ignition internal / OFF
7 - INCADOR OF START LIGHT MACHA.

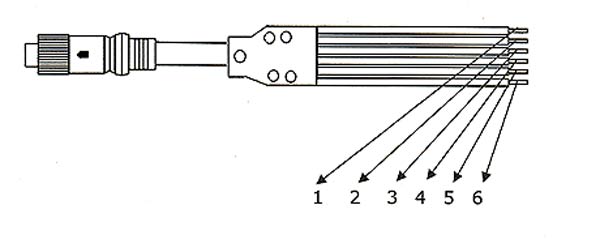

 POWER CONNECTION A 12 V. OR 24 VOLT
 - El sistema conveniente para vehículos de gran embergadura

1 - Green Color 12/24v Cable. connects to the reversing light.
2 - Wire Color White 12/24v. Optional
3 - Color Yellow Cable 12/24 optional
4 - Blue Cable 12/24v. Optional
wire 5 - black color - is connected to ground.
6 - Red Cable 12/24 is connected. (You need this cable is connected )

You can always have a vision camera feed just one cable 2,3,4.

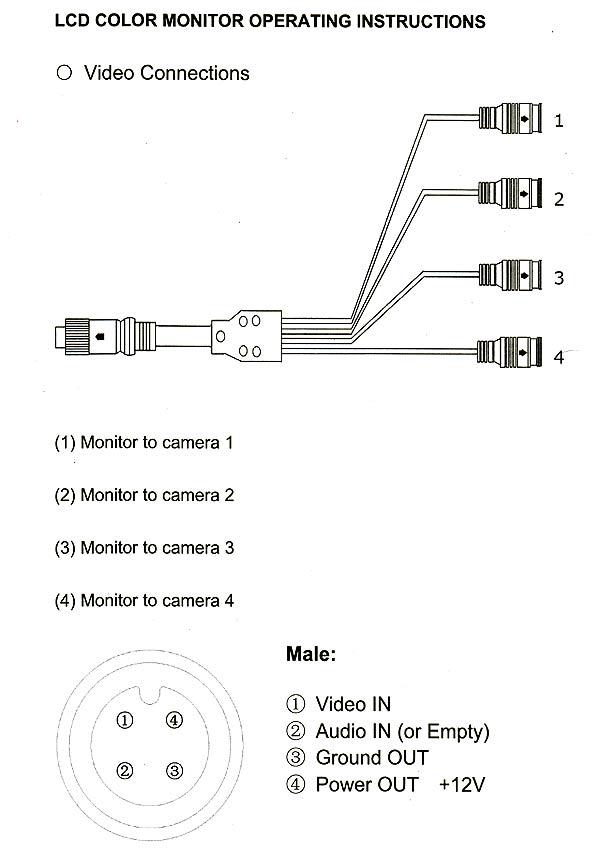

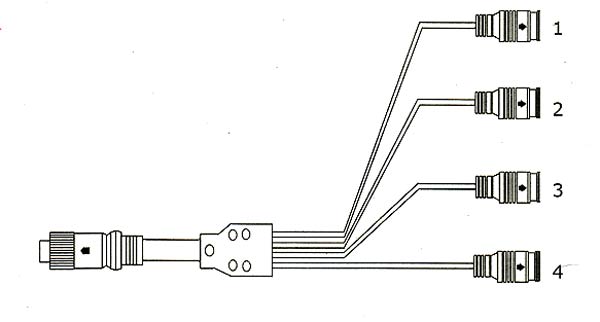

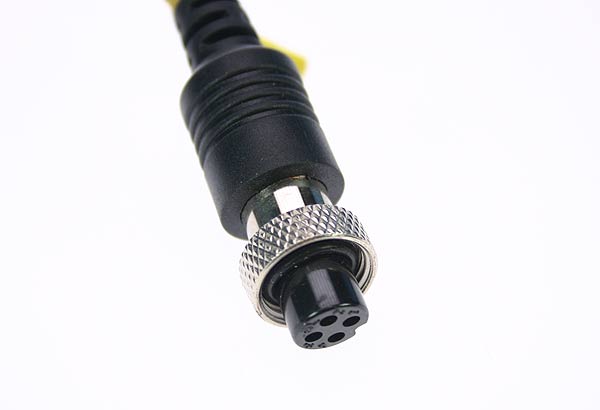

 CAMERA CONNECTION

 BRV9
1 - CAMERA 1
2 - CAMERA 2
3 - CAMERA 3
4 - CAMERA 4



  BRV9

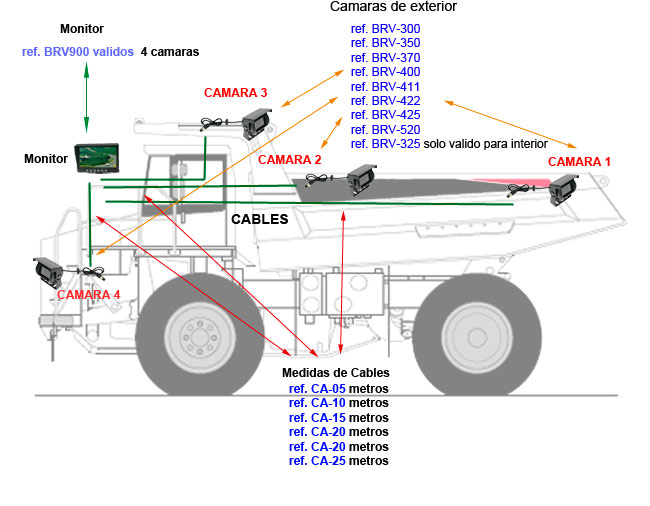

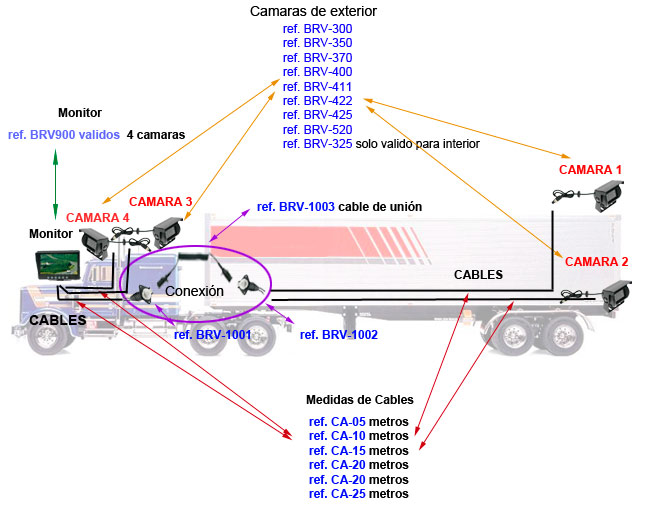

OUTLINE OF POSSIBLE SETTINGS

BRV-900 BARRISTER monitor para 4 camaras valido para el kit BRV-9





OUTLINE OF POSSIBLE SETTINGS



BRV-900 BARRISTER monitor para 4 camaras valido para el kit BRV-9
