BARRISTER BRV-7 KIT180 Rear view camera system with 7" mirror monitor

BARRISTER BRV-7 KIT180

BARRISTER BRV-7 KIT180 Rear view camera system with 7" mirror monitor

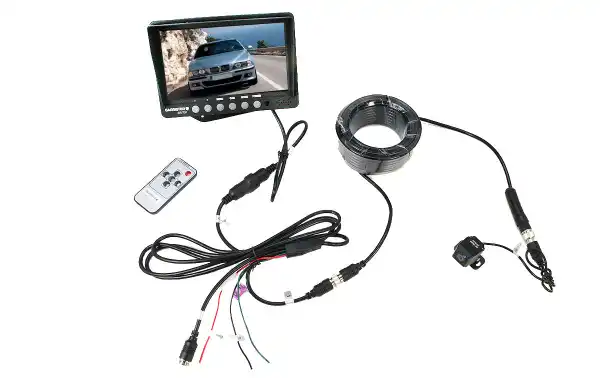

BARRISTER BRV-7 KIT180 Rear view mounted colour camera system with 7" clip-on TFT LCD mirror monitor.

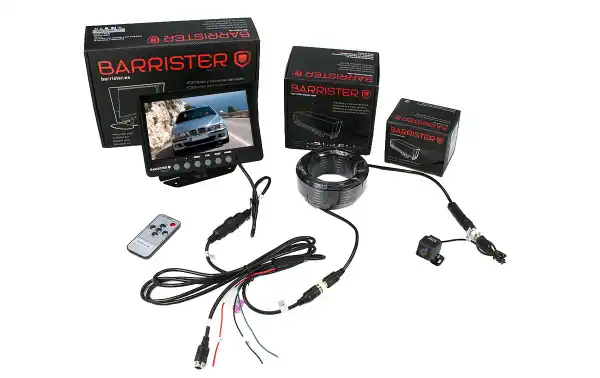

The kit is supplied with all the necessary accessories for an easy assembly.
This camera is installed in the back of the vehicle, allowing you to see at all times what is behind. It is very robust and comes with a support to make the assembly simple.
Through the connection of the green cable, which is located next to all the connection cables to the positive of the reverse gear, we achieved that every time we put the reverse gear in our vehicle, the image of the camera is visualized in our rear view mirror.
It is possible to install a two cameras system. Through the AV1 and AV2 channels you can switch betweeen the camera 1 or 2.
Suitable for motorhomes, caravans, trucks, vans, etc. For reverse maneuvers, car parks, loading operations, vehicle safety and monitoring, etc.

Features

• MONITOR
• BRV-700 colour
• Power supply 12 or 24 volts
• 7" 16:9 Wide Screen monitor
• Colour Monitor Video Device
• Resolution: 480 RGB x 234 dots
• Display function: Mirror / Normal
• Operating temperature: -10 º C / 65 º C
• Remote control battery: CR 2025
• Audio (2 speakers)
• Video format: PAL
• Remote control
• Black body colour
• Certificates E9*10R-05.1653
• Regulations CE, RoHs, FCC
• CAMERA
• 4 pins Connector
• Lens angle 170º
• Voltage 12 volts
• 1,7 mm Lens
• Minimum illumination 0.1 lux day
• Sensor 1/3 PC 1099 CMOS
• PAL system
• Resolution 960 X 480V
• IP-68 protection
• NO night vision
• Output video 75 ohm
• Certificates E9*10R05/01*16109*00
• Certificates EN55032:2015 - EN55024:2010 A1:2015
• Regulations CE, RoHs, FCC
