TCB STATION 660 MHZ TTI TECH 27 SIZE SMALL

EMITTING TCB-660 27 MHZ TTI TECH. The receiver-transmitter TCB-660 is designed to provide good performance in all operating conditions thanks to its chassis coated with the PCB and its components. Furthermore, this receiver-transmitter is comfortable to use due to the ergonomic shape with which it was designed, which allowed positioning of mittens and keys in the most appropriate and correct. Thanks to the combination of buttons knobs and well-designed and easy to read graphics, users will soon learn to use your computer easily. The new type of menu will satisfy the amateur and professional radio. The refined and elegant blue LED light is suitable for any vehicle. more Reference TCB660

Make the first review

TTI TCB 660
not available
We're working in our new page, i'ts possible that you discover some mistakes. In that case, you can notify us clicking HERE.

RESINTENTE SUPER STATION SPECIALLY DESIGNED FOR TRUCK TRANSPORT VEHICLE AND ALSO THE ONLY STATION TO THE MICROPHONE CABLE WITH AN EXTRA LONG LENGTH 1.15 mts WITH COIL CORD 2.50 meters. EXTENDED APPROX.

TECH TTI TCB-660

EMITTING TCB-660 27 MHZ TTI TECH. The receiver-transmitter TCB-660 is designed to provide good performance in all operating conditions thanks to its chassis coated with the PCB and its components. Furthermore, this receiver-transmitter is comfortable to use due to the ergonomic shape with which it was designed, which allowed positioning of mittens and keys in the most appropriate and correct. Thanks to the combination of buttons knobs and well-designed and easy to read graphics, users will soon learn to use your computer easily. The new type of menu will satisfy the amateur and professional radio. The refined and elegant blue LED light is suitable for any vehicle.

Also you might want mobile antenna for this station:

https://www.locuradigital.com/radioaficion/antenas/cb/movil/movil.htm


Includes:

1 station TCB660 1 1 handheld microphone stand microphone stand station 1 1 12 volt power cord

Manual in Castilian, English, German, Russian, Dutch

TCB660

CB RADIO TCB660

CB RADIO TCB660

CB RADIO TCB660

TCB660

TCB660

TCB660

TCB660

MICROPHONE CABLE EXTRA LONG with a length of 1.15 meters WITH COIL CORD 2.50 meters. ABOUT EXTENDED.

TCB660

TCB660


FEATURES

GENERAL
Channel 40 (see table of frequency bands)
Frequency range 26 965 27 405 Mhz.
Operating mode F3E (FM), A3E (AM)
Control PLL Frequency Synthesizer
Frequency Tolerance 0.002%
Operating temperature -10 55 º C
Microphone Input Connections
Input Voltage 13.2 V DC / - 15%

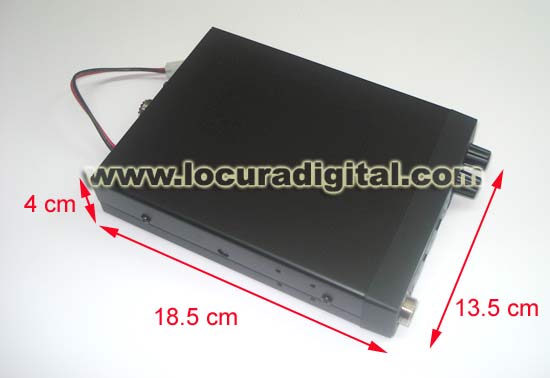

Dimensions 140 (A) x 186 (L) x 37 (H)
Weight 990 Gr

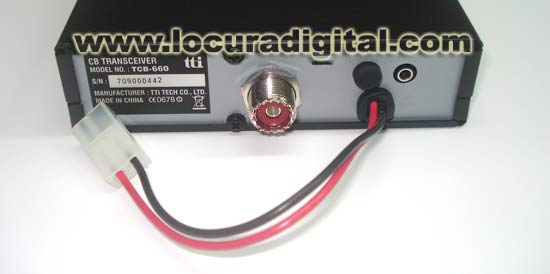

Connector Type SO-239 antenna

TRANSMITTER
Output Power 10% Duty Cycle 4W @ 13.2 V DC
AM modulation 85% - 95%
FM 1.8 kHz / - 0.2 Khz
Frequency response 300Hz-3000Hz
Output Impedance 50 ohms
Higher harmonics suppression of -36 dBm
Full-load current AM Modulation 1.6 A max.

RECEIVER
Reception System Double Conversion Superheterodyne
Double conversion IF frequency 10.9695 MHz 1 º / 2 º 455 Khz
0.7uV Sensitivity for 10 dB (S N) N in AM mode
0.5uV for 20 dB SINAD in FM modulation
Audio output power 2.0W @ 8 Ohm
Audio distortion Less than 8% @ 1 kHz
60 dB attenuation image


TCB660
