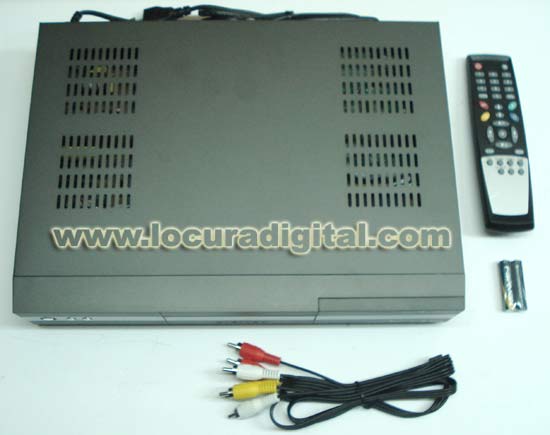

TUNER & CHANNEL - SATELITE -
- Input Connector: F-type, lEC 169-24, Female
- Frequency Range: 950 MHz to 2150 MHz 750hm
- Input Impedance: 75 Ohm unbalanced
- Signal Level: -25 to -65dBm
- IF Frequency: 480 MHz
- IF Band width: 36 MHz
- LNB Power & Polarization: Vertical: 13V, Horizontal: 18V
- Current: 500mA Max Overload protection
- 22 KHz Tone: Frequency : 22 ± 4KHz
Amplitude : 0.6 ± 0.2V
- DiSEqC Controle: Version 1.0 / 1.2 Compatible
- Demodulation Input: QPSK
- Symbol Rate FEC: 1-45 Ms/s
- Decoder: Convolutional Code Rate 1/2, 2/3, 3/4, 5/6 and 7/8 with Constraint Length K=7
TUNER & CHANNEL - TERRESTRIAL -
- Input Connector: 75 Ohms, 169-2, Female
- Loop Through: 75 Ohms, 169-2, Male
- Frequency Range: 47MHz to 862MHz
- Bandwidth: 7MHz/8MHz
- Signal Level: -10dBm to -75dBm
- Demodulation: COFDM
- Guard Interval: 1/4,1/8,1/16,1/32
- Constalation: 16QAM, 32QAM, 64QAM
- FEC Decoder: RS 204, 188, T =8
- Code Rate: 1/2,2/3,3/4,5/6 and 7/8
MPEG TRANSPORT STREAM A/V DECODING
- Transport Stream: MPEG-2 ISO/lEC 13818
Transport stream Specification
- Profile Level: MPEG-2 MP @ ML
- Input Rate: Max 90 Mbit/s
- Aspect Ratio: 4:3, 16:9
- Video Resolution: 720 x 576
- Audio Decoding: MPEG / MusiCam Layer I & II
- Audio Mode: Single channel / Dual channel / Joint stereo / 5.1 channel/S/PDIF Optical
- Sampling: 32, 44.1 and 48KHz
MEMORY/PROCESSOR
- Main Processor: STi-5105
- Flash Memory: 4Mbyte
- SORAM tor MPEG & Graphic: 16Mbyte
RF MODULATOR
- RF-Connector: 750hm, lEC 169-2, Male / Female
- Frequency: 470MHz to 860MHz
- Output Channel: CH21-69 tor the Remodulator
- TV Standard: PAL K/G/I selectable by Menu
- Preset Channel: CH40(or TBO)
Channel changeable by Menu

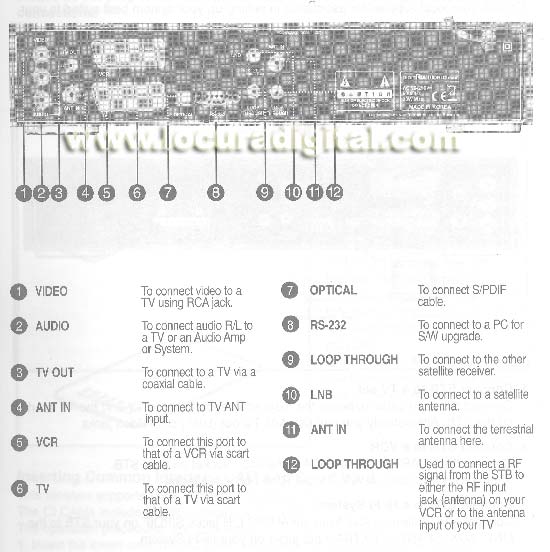

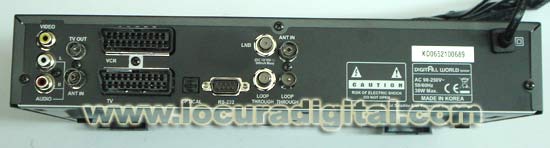

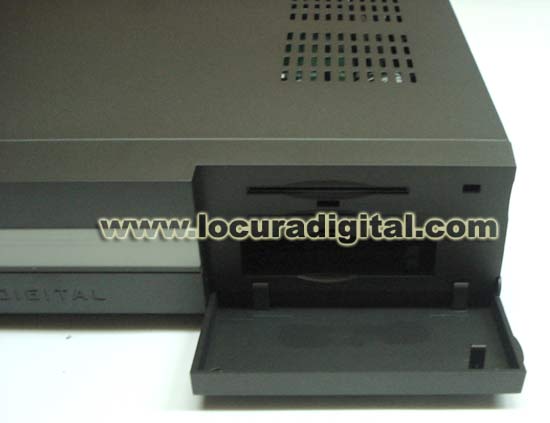

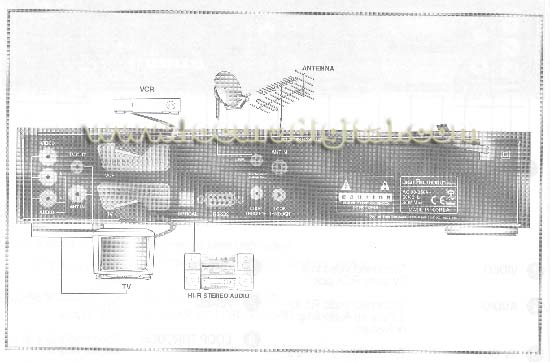

A/V & DATA IN / OUT
- VIDEO CVBS: RCAlCinch, Scart
Video Output CVBS
- VIDEO RGB: Scart
- AUDIO R/L: RCAlCinch, Scart
Volume and Mute Controle
Resolution : 20bit OAC, max 2Vrms
- RS232C: Transter rate 115,200 bps
9 pin Ou-sub Type
- S/POIF: Digital Audio Optical output
POWER SUPPLY
- Input Voltage: AC 90 to 250V - 50/60 Hzz
- Type: SMPS Switch Mode Power Supply
- Power Consumption: Max.30W
- Standby Power: 7W
- Protection: Separate internal tuse
The input shall have lightning Protection

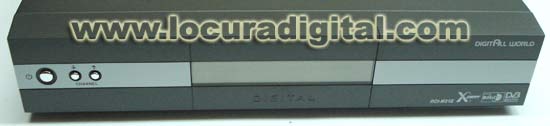

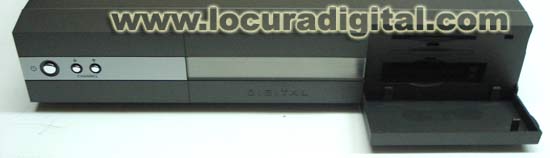

PHYSICAL SPECIFICATION
- Size W x H x Ou: 340 x 66 x 247 mm
- Weight Net: 2.1Kg.
- Operating Temp: Ou°C to 45°C
- Storage Temp: -10°C to 65°C
- Storage Humidity: 5% - 95% RH Non-Condensing |
