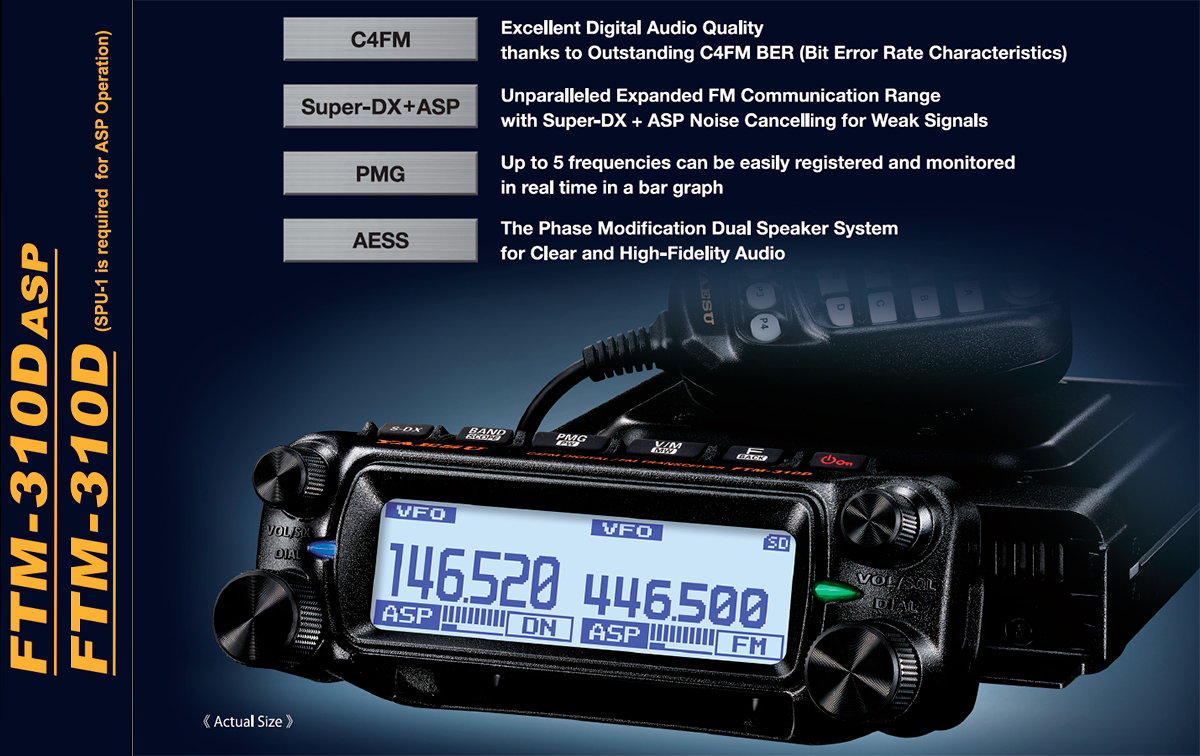

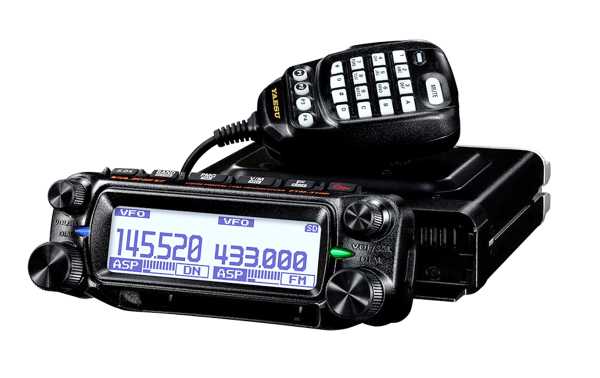

YAESU FTM-310-DE BI-BAND DIGITAL mobile station 144/ 430 Mhz
The Yaesu FTM-310DE is a high-performance dual-band VHF/UHF mobile transceiver with digital C4FM operation and analog FM mode. The FTM-310DE ASP version includes the advanced ASP processor as standard, while the standard FTM-310DE requires the option moreManufacturer:yaesuReference FTM310DE
The Yaesu FTM-310DE is a high-performance dual-band VHF/UHF mobile transceiver with C4FM digital operation and FM analog mode. The FTM-310DE ASP version includes the advanced ASP processor as standard, while the standard FTM-310DE requires the optional SPU-1 module to enable this feature.
This radio offers true dual-receiver operation, allowing simultaneous listening on different bands or even two C4FM signals at once. Its transmission power reaches 55W on VHF and 50W on UHF , supported by a high-capacity heat sink with a FACC system to maintain stable operation.
The FTM-310DE incorporates a high-fidelity audio system using AESS (front speaker + main speaker), a Full Dot-Matrix display, a high-sensitivity GPS receiver, APRS 1200/9600 bps, WiRES-X compatibility, wideband reception, and numerous advanced memory, channel management, and digital control functions.
Main features of the Yaesu FTM-310DE
Dual band VHF/UHF 144/430 MHz transceiver
Digital C4FM operation and analog FM mode
Transmit power 55 W (VHF) / 50 W (UHF)
6W AESS Audio (3W Front + 3W Main Unit)
High-visibility full Dot-Matrix display
What does the Yaesu FTM-310DE include?
1 Yaesu FTM-310DE Transceiver
1 Control head with front speaker
1 Microphone with front connector
1 DC power cable
1 Mounting bracket
Basic manual and accessories
Technical and mechanical characteristics
Manufacturer: Yaesu Musen Co., Ltd.
Model: FTM-310DE
Type: VHF/UHF C4FM/FM Mobile Transceiver
Frequencies: 144-146 MHz / 430-440 MHz
Output power: 55W/50W/25W/5W
Operation: Dual real receiver (V/U, V/V, U/U, C4FM/C4FM)
Total audio: 6 W with AESS system
Integrated front speaker: 3 W
Main unit speaker: 3 W
Advanced features: Super-DX and ASP
ASP Processing: Integrated in ASP / Optional SPU-1 in FTM-310DE
Display: Full Dot-Matrix
GPS: 66-channel receiver
APRS: 1200/9600 bps
Connectivity: WiRES-X compatible
PMG (Primary Memory Group) Operation
MAG function (Memory Auto Grouping)
CFL (Custom Function List): 9 selectable functions
Band Scope up to 47 channels
AMS (Automatic Mode Select)
DG-ID and Group Monitor
Optional Bluetooth (BU-5 module)
Wideband reception: 108550 MHz
Panel angle adjustment (optional SJMK-500)
Microphone with connector on front panel and main unit
