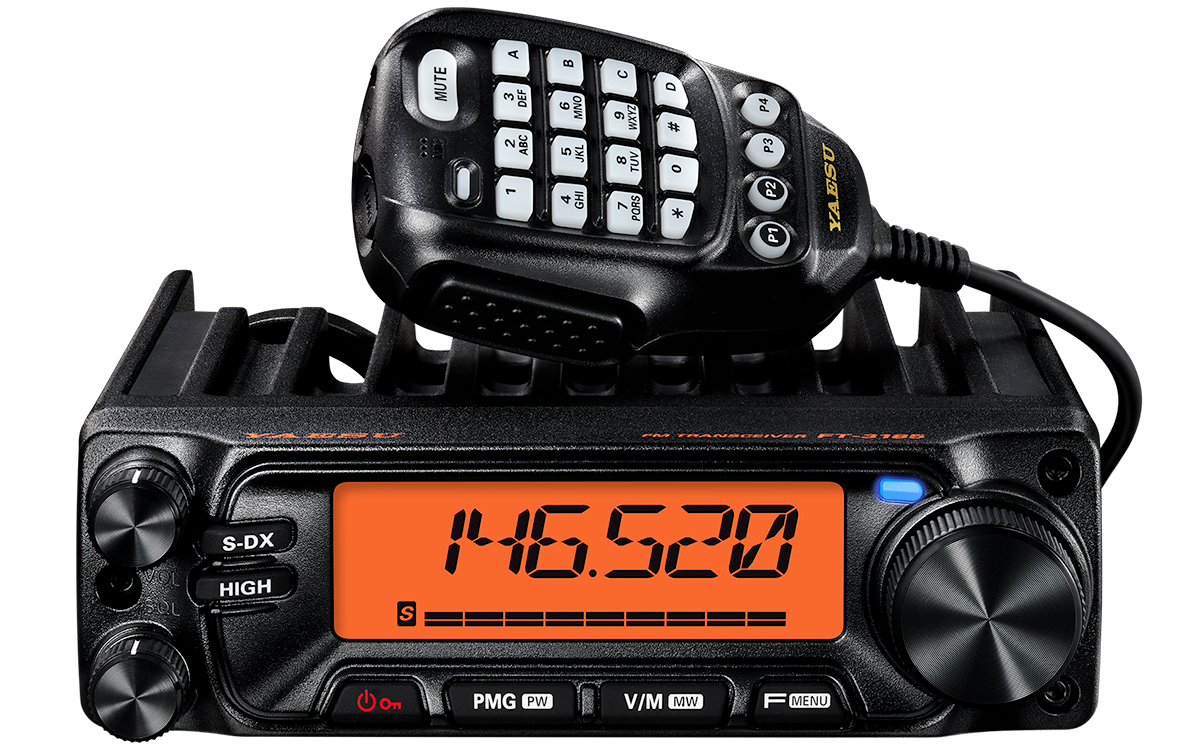

YAESU FT3185E-ASP VHF transmitter 144 MHz power 85 watts

YAESU FT-3188E-ASP

85W 144MHz FM Mobile Transceiver
With the newly evolved Super-DX function and Digital Audio Signal Processor (ASP), the FT-3185RASP delivers reliable performance with 85W transmit power. Its massive, fanless heat sink ensures a steady 85W of RF power (selectable in 85W/50W/20W/5W). The Super-DX function increases the receiver sensitivity and improves reception of weak signals. In addition, when the Super-DX key is activated, the new ASP (Digital Audio Signal Processor) is also activated. Super-DX together with ASP ensures reliable audio quality for weak signals and extends the communication range.

Main differences from FT2980E:
1- Advanced Processing System (ASP), which improves the reception of weak signals, ideal for long-range contacts.
2- Super DX Function Reduces interference and unwanted noise, allowing you to capture clearer signals even in adverse conditions.
3- 5W Output Power: The speaker can output sound with a maximum power of 5 watts, ensuring a sufficiently loud volume even in noisy environments.
4- Maximum output power 85 watts
5- New SSM-85D Microphone

.

Characteristics

• VHF single band 144 Mhz (2 meters).
• Weight: (2, kg)
• CTCSS and DCS encode/decode
• Reception 136-174 MHz.
• Channel step, 5/10/12.5/20/25/50/100 khz
• Output power: 85//30/10/5 W
• Maximum deviation: 5 kHz (wide), 2.5 kHz (narrow)
• Spurious radiation: Better than -60 dB
• Microphone impedance: 2k ohms
• Antenna impedance 50 Ohms
• Temperature range: -4 Degree (F) to 140 Degree (F) 1
• Input voltage 13.8 volts positive - negative
• External speaker jack connector 3.5 mm
• Roger BEP
• APO system off due to time
• Microphone gain levels 1-9
• SQL function levels 1-9 /OFF
• Repeater function 0.00 -99.95 MHz
• TOT function - 1 min/ 3 min /5 min/ 10 min / OFF
• Size: (160 x 50 x 185 mm)
• Digital signal processing (ASP) to enhance weak signals.
• High power front speaker (5 W).
• Clear, easy-to-read LCD display.
• 220 programmable memory channels.
• DTMF microphone included for quick access.
• Advanced fanless cooling system.
• Repeater control with automatic ARS.
• TOT timer for equipment protection.
• Support for external speakers.
• Robust design for mobile or fixed use.
• Weight: (2, kg)
