Tagro Antenna GP-144 5 / 8 VHF 136-174 Mhz.

Graut. GP144 VHF antenna base 5 / 8 GP144 5 / 8 Frequency 136-174MHz, 500W Power, Gain 5.15 dBi, connector type PL. Includes 2 clamps to hold a mast, to hold the antenna will need a mast or tube in vertical maximum 35 to 45 millimeters more

GRAUTA. Base antenna VHF GP144 5/8 Frequency 136-174Mhz, Power 500W, Gain 5.15 dBi, Connector type PL. It includes 2 clamps to attach to a mast, to hold the antenna it will be necessary a mast or tube in vertical from 35 to 45 maximum millimeter in diamet
GRAUTA. Base antenna VHF GP144 5/8 Frequency 136-174Mhz, Power 500W, Gain 5.15 dBi, Connector type PL. It includes 2 clamps to attach to a mast, to hold the antenna it will be necessary a mast or tube in vertical from 35 to 45 maximum millimeter in diamet GRAUTA. Base antenna VHF GP144 5/8 Frequency 136-174Mhz, Power 500W, Gain 5.15 dBi, Connector type PL. It includes 2 clamps to attach to a mast, to hold the antenna it will be necessary a mast or tube in vertical from 35 to 45 maximum millimeter in diamet

Referencia: GP14458 (TAGRA)

avalaible

88,33 incl. VAT

73,00€ w/o VAT

We're working in our new page, i'ts possible that you discover some mistakes. In that case, you can notify us clicking HERE.

GP144 5/48

GRAUTA. Base antenna VHF GP144 5/8 Frequency 136 174Mhz, Power 500W, Gain 5.15 dBi, Connector type PL. Includes 2 clamps to attach to a mast, to hold the antenna will be necessary a mast or vertical tube of 35 to 45 maximum millimeter in diameter.

GRAUTA. Antena de base VHF GP144 5/8 Frecuencia 136 174Mhz, Potencia 500W, Ganancia 5,15 dBi, Conector tipo PL. Incluye 2 abrazaderas para sujetar a un mastil, para sujetar la antena sera necesario un mastil o tubo en vertical de 35 a 45 maximo milimetro de diametro.

grauta. antena de base vhf gp144 5/8 frecuencia 136 174mhz, potencia 500w, ganancia 5,15 dbi, conector tipo pl. incluye 2 abrazaderas para sujetar a un mastil, para sujetar la antena sera necesario un mastil o tubo en vertical de 35 a 45 maximo milimetro de diametro.Kit Contents

Contenido del kit
1 Antenna GP 144/58
  • 1 Antena GP 144/58

grauta. antena de base vhf gp144 5/8 frecuencia 136 174mhz, potencia 500w, ganancia 5,15 dbi, conector tipo pl. incluye 2 abrazaderas para sujetar a un mastil, para sujetar la antena sera necesario un mastil o tubo en vertical de 35 a 45 maximo milimetro de diametro.

Features

Características

Type Omnidirectional Type Type
Frequency Frequency Frequency 136 174 MHz
    Power Power 500 W Power
  • Gain gain (dB) Gain 3 dB
  • Format 5/8
  • Polarization Polarization Polarization Vertical
  • Impedance Impedance Impédance 50 Ohm
  • Adjustment type Adjust type Adjustable adjustment type
  • ROE SWR 1.2: 1
  • Aluminum material
  • Mast mounting 30 45 mm

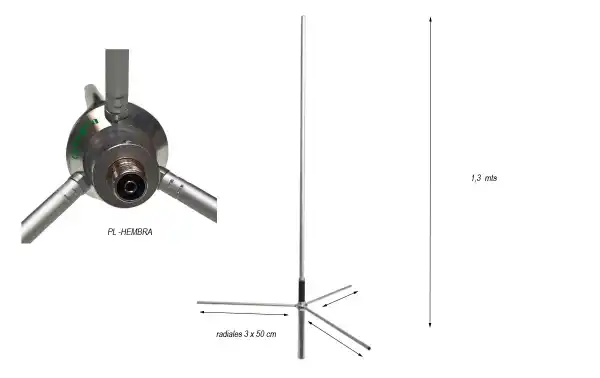

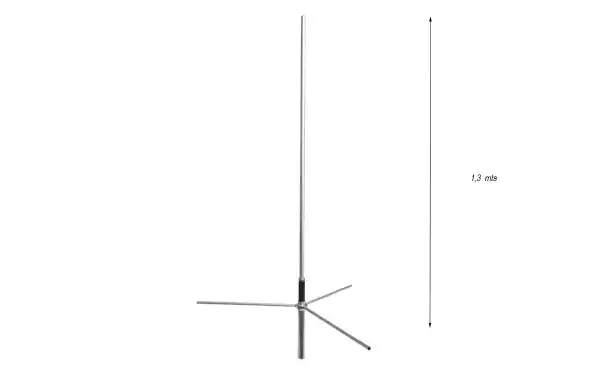

  • Radiant length Lenght (mm) 1310 mm

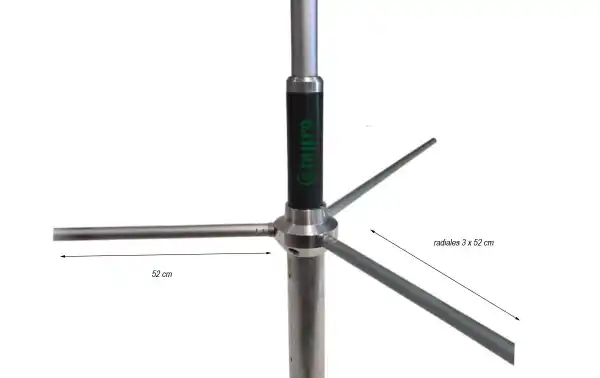

  • Radial length 502 mm
  • Type conect. Type of conn. Type of conn. PL female
  • R.O.E S.W.R 1,2:1
  • Gross weight Gross weight (gr.) 1380gr.
  • Material Aluminio
  • Montaje mastil 30 45 mm
  • Longitud radiante Lenght (mm) 1310 mm
  • Longitud radiales 502 mm
  • Tipo conect. Type of conn. Type de conn. PL hembra
  • Peso bruto Gross weight (gr.) 1380gr.
