FT-3165E-ASP YAESU Amateur VHF mobile equipment - 144-146 Mhz. 65 watts

FT-3165E-ASP

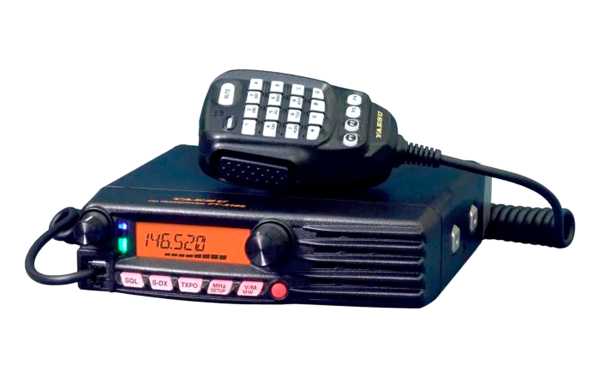

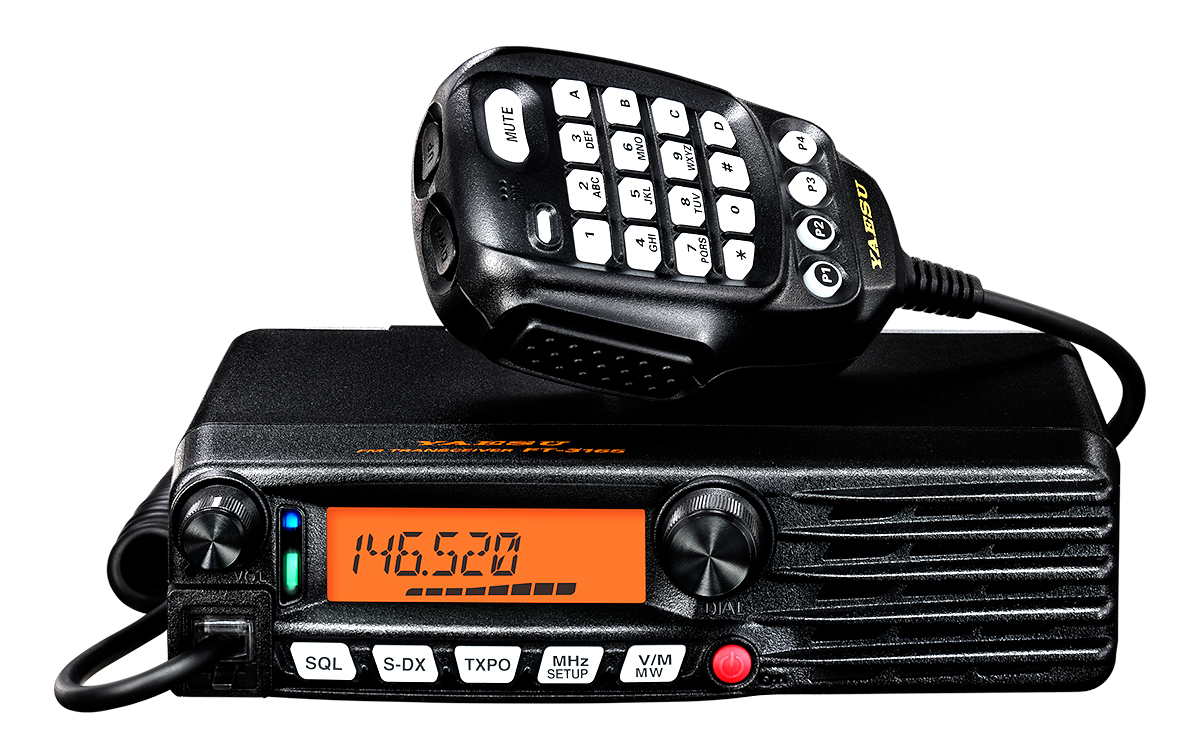

Yaesu FT-3165E ASP - VHF Mobile Transceiver

The Yaesu FT-3165E ASP is a single-band mobile transceiver designed to operate on the 2-meter (VHF) band, offering reliable, high-quality communication for radio amateurs.
Transmission Power: Provides a maximum power of 65 W, with selectable options of 65 W, 30 W and 5 W, adapting to various operational needs.

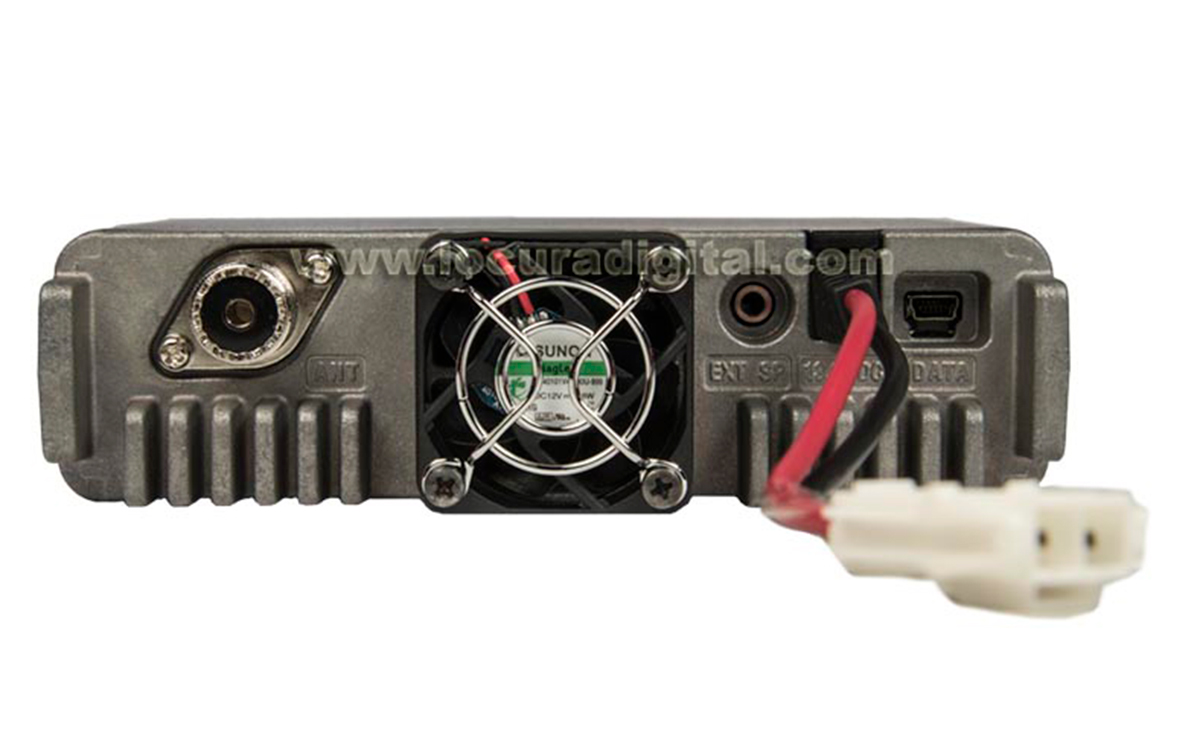

Advanced Cooling System: Incorporates the FACC (Funnel Air-Convection Conductor) system, which guarantees efficient heat dissipation, ensuring stable performance even during prolonged use. Super DX Function with Digital Audio Signal Processing (ASP): Improves reception of weak signals, providing superior audio quality in marginal signal conditions, ideal for long-range communications.
Memory Capacity: Features 220 memory channels with 8-character alphanumeric labels, making it easy to organize and quickly access common frequencies. Powerful Front Speaker: Features a 5W front speaker optimized for loud, clear audio, even in noisy environments. Additionally, it is compatible with the optional MLS-100 external speaker to improve audio quality in high ambient noise situations. DTMF Microphone Included: Includes a handheld microphone with DTMF keypad, allowing direct entry of frequencies and easy access to additional functions. Versatile Scanning Functions: Offers various scanning options, such as priority channel scanning, VFO scanning, providing flexibility in daily operation.

Main differences from FTM3100E:
1- Advanced Processing System (ASP), which improves the reception of weak signals, ideal for long-range contacts.
2- Super DX Function Reduces interference and unwanted noise, allowing you to capture clearer signals even in adverse conditions.
3- 5W Output Power: The speaker can output sound with a maximum power of 5 watts, ensuring a sufficiently loud volume even in noisy environments.
4- New SSM-85D Microphone

Characteristics

• lSize: 6.1" x 1.7" x 6.1" (154 x 43 x 155mm)
• Weight: 2.86lb (1.3kg)
• 220 alphanumeric memory channels
• CTCSS and DCS encode/decode
• Extended Receives 136-174 MHz.
• High stability TCXO ± 2.5 ppm
• Output power: 65/30/5 W
• Maximum deviation: 5 kHz (wide), 2.5 kHz (narrow)
• Spurious radiation: Better than -60 dB
• Microphone impedance: 2k ohms
• Antenna impedance 50 Ohms
• Temperature range: -4 Degree (F) to 140 Degree (F) 1
