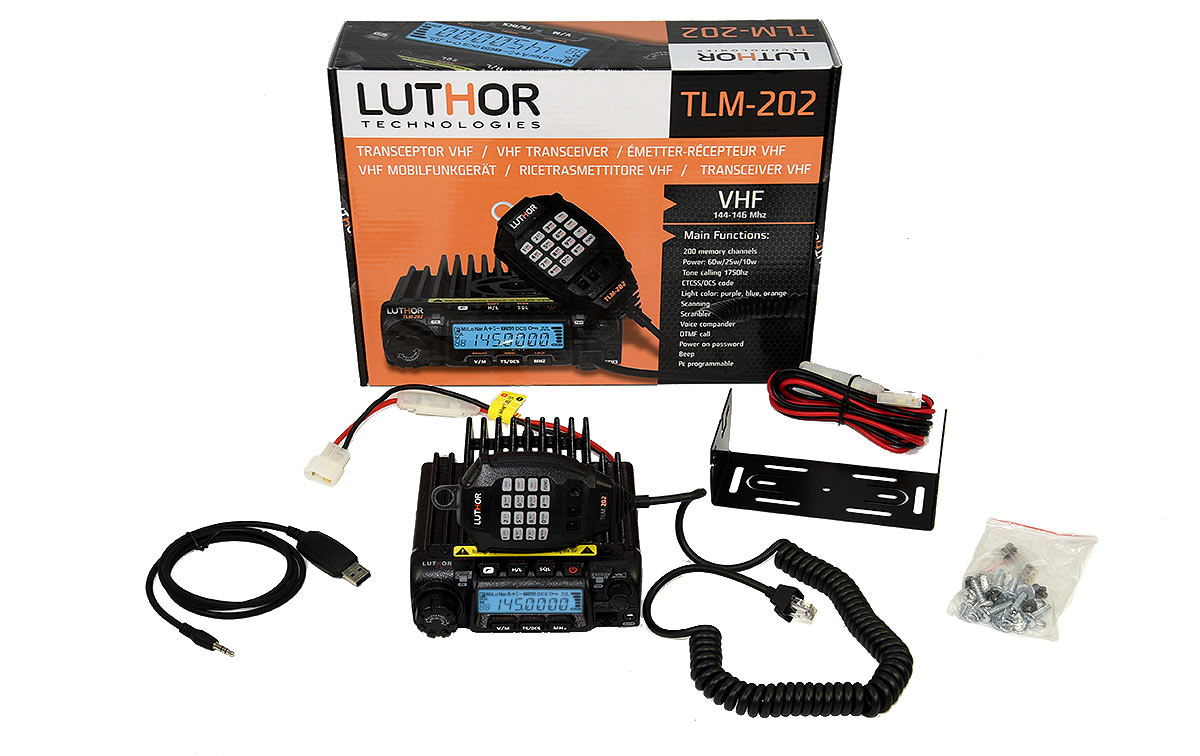

LUTHOR TLM-202 Monoband VHF 144-146 Mhz transceiver

Luthor TLM-202 KIT-1

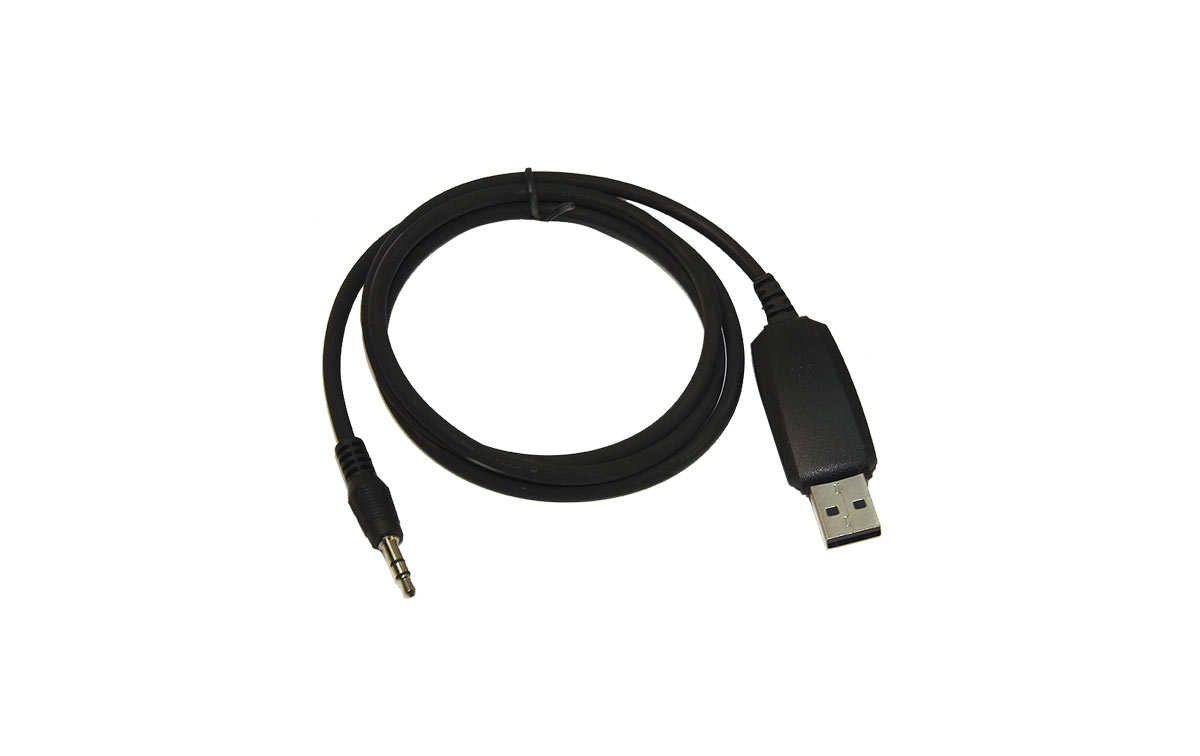

TLM 202 LUTHOR Mobile station VHF 144-146 Mhz. TLUSB109 programming cable
High power transmitter 60 watts / 25/10 w.
Mobile VHF transmitter with 200 memories, CTCSS / DSC subtones etc.
Scrambler features offer extreme privacy to the user as it distorts the sound in such a way that it makes it impossible to understand the conversation.
The large LCD display allows us to view without problems the information related to the channel of use or frequency of work, undertones, deviation, etc.
Microphone with DTMF keyboard.
Compander function
Scramble function It has 1 SCRAMBLER (1 encryption codes). The encryption code offers extreme privacy to the user as it distorts the sound in such a way that it makes it impossible to understand the conversation.

Another important advantage of the Luthor TLM 202 , is that it is supplied with the DTMF microphone as standard, this facilitates direct access to frequencies, marking of DTMF tones.



Manual in PDF Luthor transmitter TLM-202 [see here]

Software to make a clip here (See here)

features

• VHF Mobile 144-146 MHz
• Modulation modes: AM / FM
• Maximum power: 60 W
• Memories 200
• Antenna impedance: 50 ohms
• Selectable in 3 levels 60/25/10 watts
• 200 Memories
• Scrambler encryption code offer extreme privacy to the user
• Food 13, 8 v.
• Adjust volume and on / off
• Squelch RF
• Programmable microphone
• LCD display
• Keypad lock
• Frequency step 5kHz / 6.25 kHz / 8.33 kHz / 10 kHz / 12.5 kHz / 15 kHz / 20 kHz / 25 kHz / 30 kHz / 50 kHz
• Frequency scanner
• Channeling 25 kHz / 20 kHz / 12.5 kHz
• Function key F
• AM / FM mode switch
• Programmable by PC
• Subtone 50 tones CTCSS / 104- DCS coded tone system.
• Max audio power: 5 W
• Weight 1,250 kg. with microphone power cable
• Approximate dimensions: 145 mm (X 25 mm X 195 mm
• Consumption: 500 mA nominal / 800 mA max.1
