NAUZER MIA-115-K High performance PTT speaker microphone

MIA-115-K

NAUZER MIA-115-K High performance PTT micro speaker.

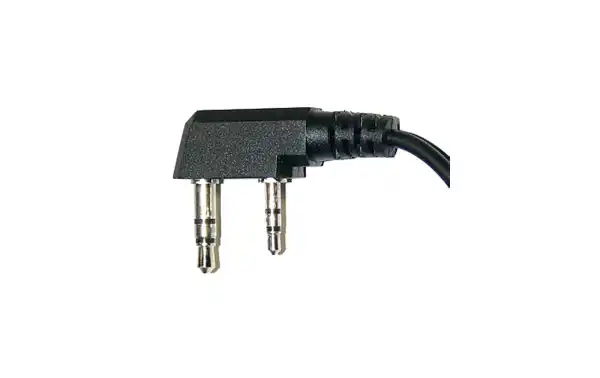

For KENWOOD walkies: TH-K2, TH-K2ET, TH-K4, TH-F7, TK3201, TK3101, TH-22, THG-71 and TH-D7.
Also valid WOUXUN, PUXING, LUTHOR ETC.
WOUXUN KG-639, KG-659, KG-669, KG-679, KG-689, KG 699, KG-UVD1.
WALKIES LUTHOR TL-55, TL-11, TL-77-, TL-22
Note: The earpiece is not included with the microphone. NAUZER PROFESSIONAL Micro speaker TK3601 KENWOOD
High-quality professional speaker-microphone with oversized PTT button. It incorporates a 3.5mm connection for an external earphone.
The extra resistant housing of this microphone combines perfectly with its rotating stainless steel clamp, making the MIA-115 an accessory prepared to withstand the toughest working circumstances. The 4.5 mm PU cable of this microphone incorporates a spiral part to have a greater comfort of movement and to guarantee maximum resistance against pulls. Outer earphone connection type ref. PIN09AS and PIN10AS
Note: The earpiece is not included with the microphone

features

• Speaker:
• Diameter: 35mm
• Output Level: 94dB
• Input power: 2W
• Output impedance: 8 Ohms
• Microphone:
• Element Type: Electric Capacitor
• Diameter 6 x 2.7 mm
• Sensitivity: -40 dB
• Output impedance: 2.2K Ohms
• Frequency 20-16000 hz
