Reference PLAIR10NEO | SSB

PL-AIR-10-NEO PL male connector for 10 MM cables

PL-AIR-10-NEO PL male connector for 10 MM cables. Aircom Plus and EcoFlex10, H1000, H2000 FLEX, RG 213, RG-214, H 1001, ULTRAFLEX10, HyperFlex 10, Calorix 10.

5,0

8,69 VAT included 7,18€ excl. VAT

Additional Services

Are you one of those who prefer not to wrap gifts? We do it for you!

With the Paper Gift Service, you will receive your product wrapped and ready to deliver to your recipient!

What if the recipient is you? Why not?

We all like to open a gift from time to time, so do not cut and hit the whim! We assure you that we will surround you with all the affection of the world.

This service is available for the following countries: España - Peninsula y Baleares, Canarias, Alemania, Bélgica, Eslovaquia, Eslovenia, Estonia, Francia, Grecia, Holanda, Irlanda, Italia, Letonia, Luxemburgo, Noruega, Polonia, Portugal, Reino Unido, República Checa, Suecia, Andorra, Austria, Bulgaria, Chipre, Dinamarca, Finlandia, Gibraltar, Hungría, Malta, Mónaco, Rumania, Suiza, Ceuta y Melilla, Gibraltar, Francia Corcega, Portugal - Azores y Madeira.

If in the purchase process you select a country, that are not specified in the list, we will delete automatically the service. Therefore you will not be charged anything. We are working to improve our services. So we will try, of course, to have this service in all countries.

We know that sometimes welding a connector is difficult or you do not have the necessary tools to do it. For this reason, we put at your disposal our technical service that will be responsible for welding the connector you need.

Remember that this price only includes the assembly of this connector . If you need to solder 2 connectors, you must select the mounting service in the other connector as well.

Why are there connector mounting services with different prices?

We have evaluated the difficulty and the time that our technicians dedicate to solder / assemble the connectors and adjusted the maximum cost of this service.

This service is available for the following countries: España - Peninsula y Baleares, Canarias.

If in the purchase process you select a country, that are not specified in the list, we will delete automatically the service. Therefore you will not be charged anything. We are working to improve our services. So we will try, of course, to have this service in all countries.

available. Estimated delivery 1-2 days. available in shop Delivery price from 6,50€

Description SSB PLAIR10NEO

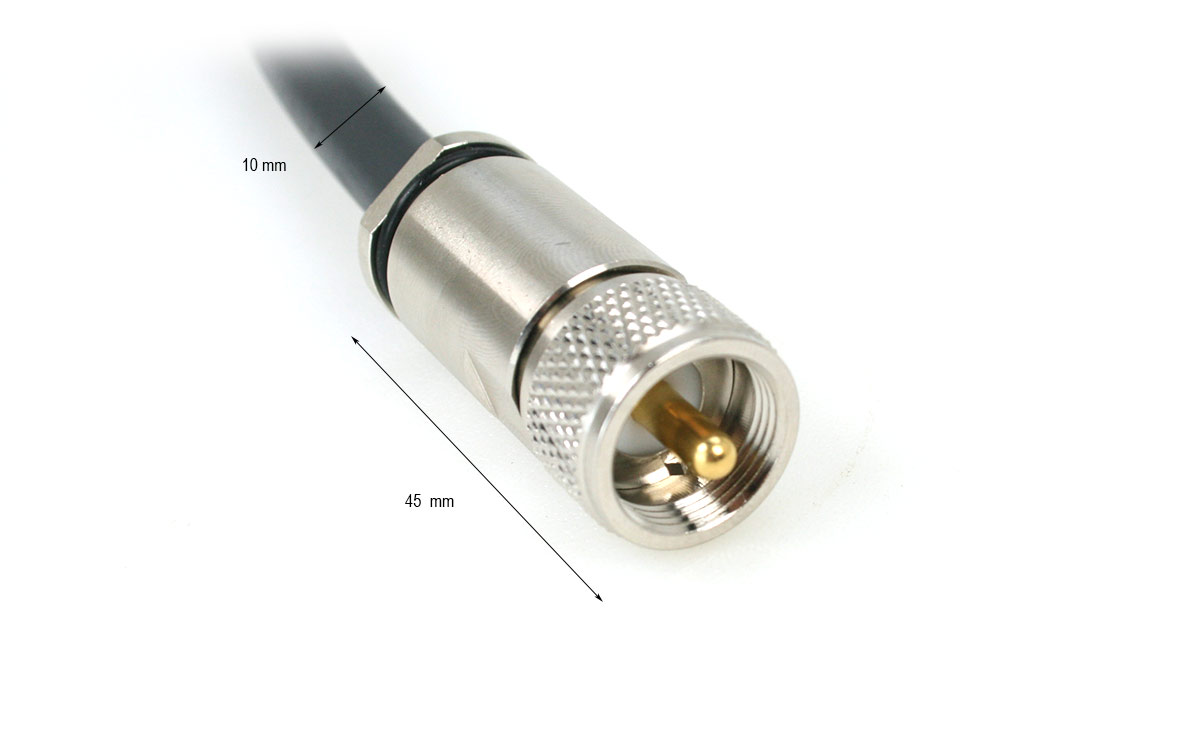

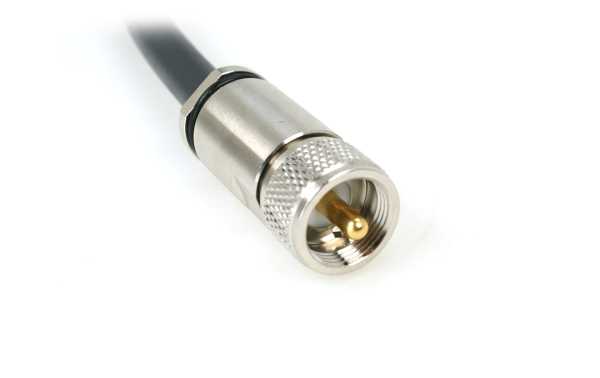

PL-AIR-10-NEO

The PL male connector is a type of coaxial connector commonly used in radio frequency applications. This connector is compatible with 10mm diameter cables such as Aircom Plus, EcoFlex10, H1000, H2000 FLEX, RG 213, RG-214, H 1001, ULTRAFLEX10, HyperFlex 10 and Calorix 10 cables.

The male PL connector is known for its robustness and ease of use. It is widely used in amateur radio equipment, satellite communications, mobile radio equipment, and other RF applications.

PL-AIR-10-NEO Conector PL macho para cables 10 MM. Aircom Plus y EcoFlex10, H1000, H2000 FLEX, RG 213, RG-214, H 1001, ULTRAFLEX10, HyperFlex 10, Calorix 10.

kit content
  • 1 Adapter PL-AIR-10NEO

PL-AIR-10-NEO Conector PL macho para cables 10 MM. Aircom Plus y EcoFlex10, H1000, H2000 FLEX, RG 213, RG-214, H 1001, ULTRAFLEX10, HyperFlex 10, Calorix 10.

Characteristics

  • Brass
  • Nickel coating
  • Connector type PL Male
  • cable diameter 10 mm
  • Impedance 50 ohms
  • Frequency from 0- 11 Ghz
  • Silver colour
  • gold center pin
  • External diameter 19.75 mm Male PL connector
  • Cable hole diameter 10 mm
  • Insulator: PTFE
  • Weight 59 grams.

Reviews SSB PLAIR10NEO

Fácil de montar y alta calidad de materiales.
