Reference HYPERFLEX10 | M&P

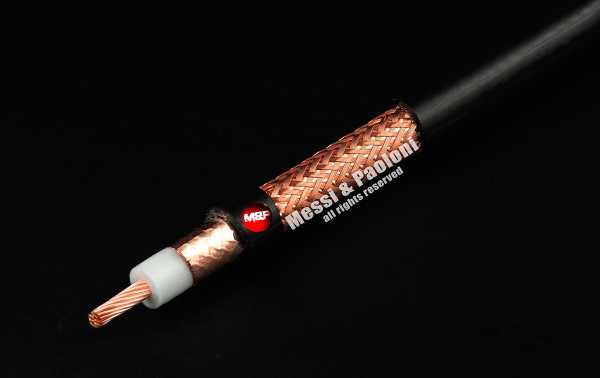

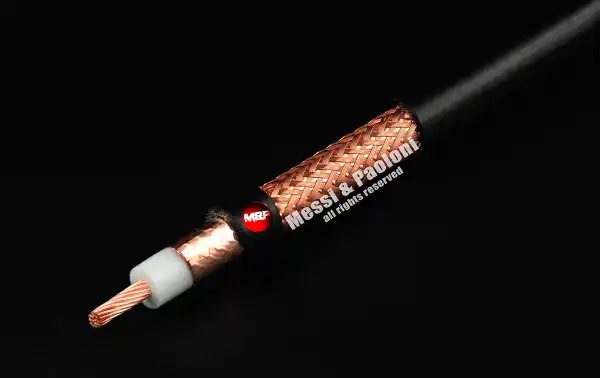

HYPERFLEX10 M & P Coaxial cable high quality professional Diameter10.3 mm

HYPERFLEX10 M & P Coaxial cable high quality professional Diameter10.3 mm

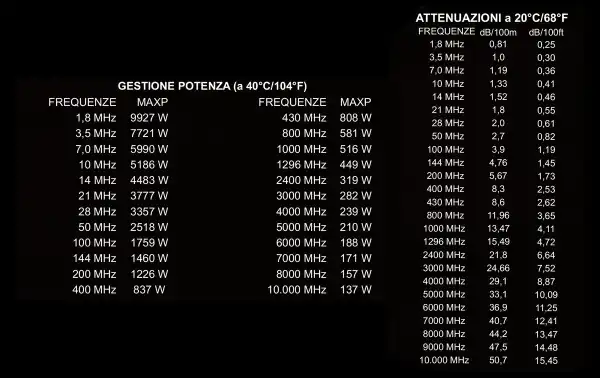

HYPERFLEX10 M & P attenuation in dB

HYPERFLEX10 M & P

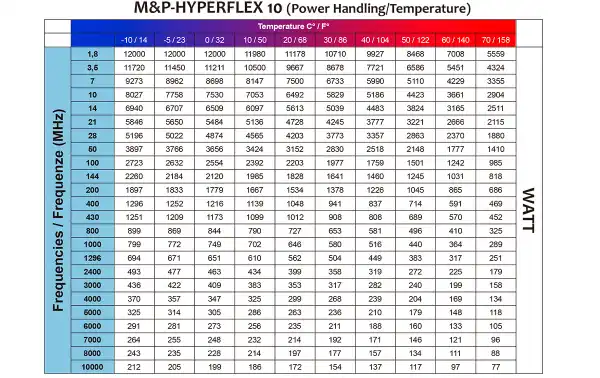

HYPERFLEX10 M & P Coaxial cable temperature

M&P HYPERFLEX10 Ham radio professional cable. Diameter 10,3mm

M&P HYPERFLEX10 Ham radio professional cable. Extraflexible PVC diameter 10,3mm

5,0

not available

Description M&P HYPERFLEX10

M&P HYPERFLEX10

M&P HYPERFLEX10 Ham radio professional cable

M&P HYPERFLEX10 Ham radio professional cable. Extraflexible PVC diameter 10,3mm

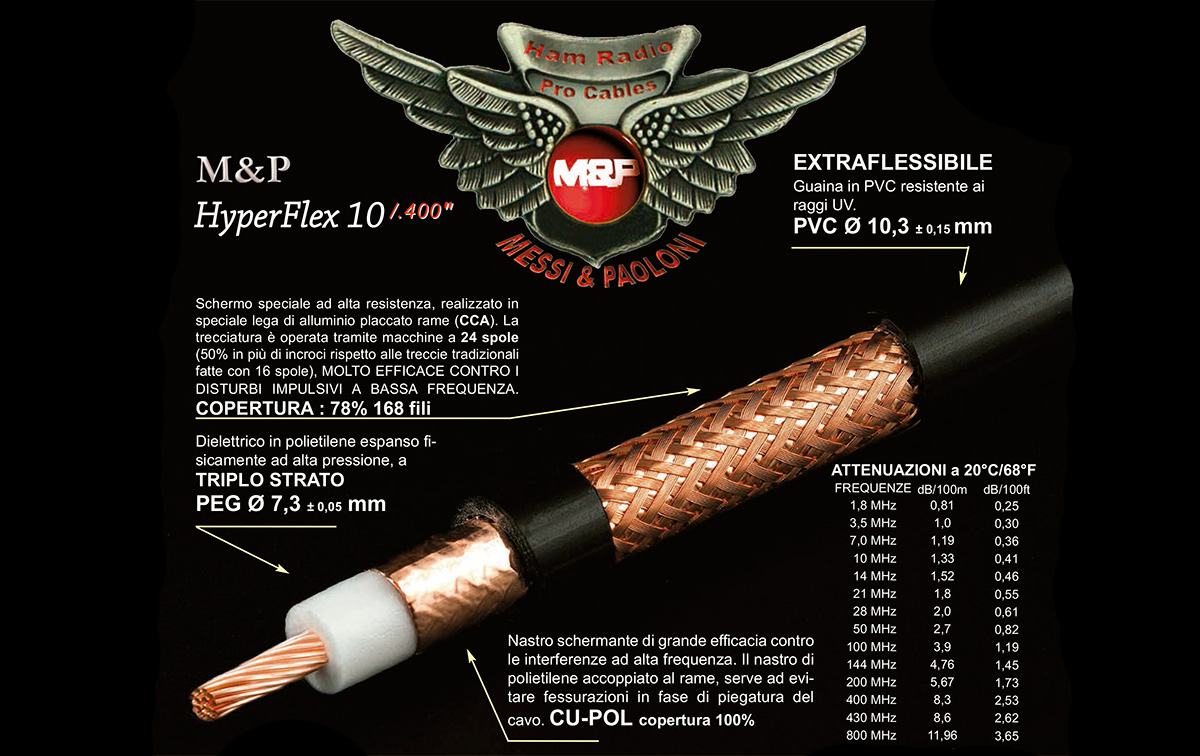

Extreme flexibility: perfect matching with rotator operated antennas, obtained by means of a sophisticated full copper stranded inner conductor (19 wires instead of 7).
The price is for 1 metre.
Available for sale by the metre.

Features

Impedance @200MHz: 50 Ohm
Multiple bends (15) / Single bend: 80 / 40 mm
Temperature range installation: -40º C to 60º C
Temperature range operative: -55º C to 85º C
Capacitance: 78 pF/m
Class: A
Inner conductor resistance: 3.6 Ohm/km
Outer conductor resistance: 12 Ohm/km
Screening efficiency 100-2000 MHz: >105 dB
Weight (100m): 11,1 kg
Velocity ratio: 87%
Maximum peak power: 13 KWATT
Tension test (spark test): 8 kV

Accessories M&P HYPERFLEX10

BNCAIR10MA

BNCAIR10MA BNC MALE connector for Ultraflex 10, Ecoflex 10 cable

8,76€ VAT included

PLAIR10NEO

PL-AIR-10-NEO PL male connector for 10 MM cables 1

8,69€ VAT included

PLAIR10

PL-AIR10 PL Male Connector for Aircom Plus / EcoFlex10 1

6,98€ VAT included

NAIRH

N-AIR-H Connector N Female for Aircom Plus and EcoFlex10 1

10,06€ VAT included

NAIR10

N-AIR10 Male N Connector for Aircom Plus and EcoFlex10 1

9,37€ VAT included
