BIDATONG 847 Cable H155 connector N MALE to SMA female REVERSE 3 meters

BIDATONG-847

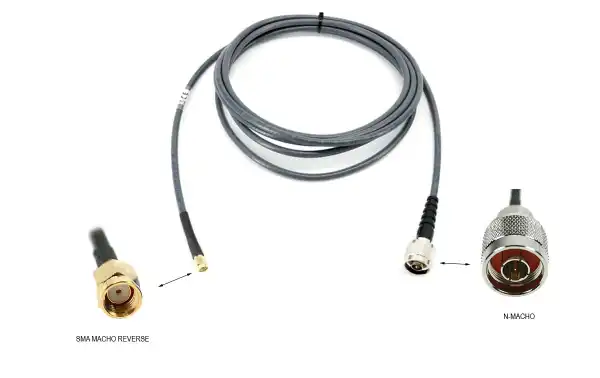

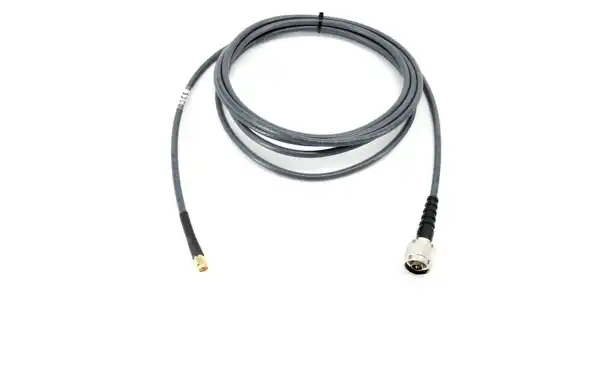

BIDATONG low loss cable patch cord with 3 meters of H-155 cable and N male and SMA MALE REVERSE connectors at the other end.
This patch cord is ideal for working at high frequencies such as GSM-R, GSM-900, GSM-1800, 2G-GSM/GPRS/EDGE, 3G-UMTS, 4G-LTE, 5G, ISM/SIGFOX/LoRa 868MHz, ISM /SIGFOX/LoRa 915MHz, WiFi-2.4GHz, DECT, Helium Mining, Hotspot connection, etc. H-155 and N male and SMA MALE REVERSE connectors at the other end.

Most of the antennas that work in these high frequencies incorporate the N female connector due to its low loss. For the connection to the different devices it is essential to use a good cable and the H155 is without a doubt the ideal cable. At the other end of the cable is the SMA MALE REVERSE connector to connect directly to the SMA FEMALE REVERSE connector that many of the devices incorporate.

Doubts often arise regarding the type of device connector, which can be a NORMAL SMA FEMALE connector or the REVERSE type. This cable comes standard with the SMA MALE REVERSE type, but we also have cables with SMA MALE NORMAL connector. An interesting option when in doubt about the type of connector our device has may be to buy this cable and an adapter from SMA FEMALE REVERSE to SMA MALE NORMAL: (optional adapter CON3798) in this way regardless of the type of SMA FEMALE connector of the device we will be able to connect the antenna without problem.

Made in Germany -

length 3 meters
N male connectors and SMA Male Reverse Connector

• 1 Cable BidatonG-847
• 1 N Male Connectors
• 1 Reverse SMA Male Connector

Characteristics

• Low loss cable H-155
• 1 N Male Connectors
• 1 Reverse SMA Male Connector
• Cable length 3 meters
• Wire color Gray
• gold center pin
• Connector N : Frequency: 0 - 11 GHz
• PTFE insulation
