TAGRA GPC-868 Omnidirectional vertical antenna 868 Mhz Connector N

TAGRA GPC-868 Omnidirectional vertical antenna 868 Mhz N connector. N female connector This is an omnidirectional collinear dipole antenna, it is an Aluminum tube. Supplied with the new stainless steel fixing bracket for installation on a 30 to 45 mm

Make the first review

70,18 VAT included 58,00€ excl. VAT

Additional Services

Are you one of those who prefer not to wrap gifts? We do it for you!

With the Paper Gift Service, you will receive your product wrapped and ready to deliver to your recipient!

What if the recipient is you? Why not?

We all like to open a gift from time to time, so do not cut and hit the whim! We assure you that we will surround you with all the affection of the world.

This service is available for the following countries: España - Peninsula y Baleares, Canarias, Alemania, Bélgica, Eslovaquia, Eslovenia, Estonia, Francia, Grecia, Holanda, Irlanda, Italia, Letonia, Luxemburgo, Noruega, Polonia, Portugal, Reino Unido, República Checa, Suecia, Andorra, Austria, Bulgaria, Chipre, Dinamarca, Finlandia, Gibraltar, Hungría, Malta, Mónaco, Rumania, Suiza, Ceuta y Melilla, Gibraltar, Francia Corcega, Portugal - Azores y Madeira.

If in the purchase process you select a country, that are not specified in the list, we will delete automatically the service. Therefore you will not be charged anything. We are working to improve our services. So we will try, of course, to have this service in all countries.

available. Estimated delivery 1-2 days. available in shop Last units Delivery price from 6,50€

Description TAGRA GPC868

TAGRA GPC-868

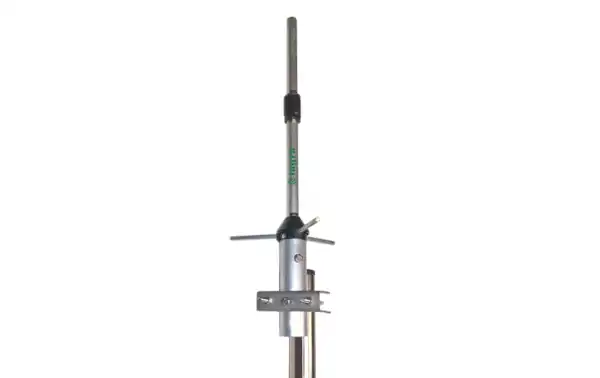

TAGRA GPC-868 Omnidirectional vertical antenna 868 Mhz N connector. N female connector This is an omnidirectional collinear dipole antenna, it is an Aluminum tube. Supplied with the new stainless steel fixing bracket for installation on a 30 to 45 mm mast. Compatible with all helium mining hotspots: Nebra HNT Indoor Hotspot Miner, HNT Rewards, RAK Hotspot Miner v2, BOBCAT Miner, Nebra HNT Outdoor Hotspot Miner, BOBCAT Miner, SyncroBit Gateway, Helium Miner crypto, lora cam, designed for LoRa Helium miner , low power radio: Sigfox, LPWA, LoRa, mesh networks, IoT. Multipoint and NLOS applications, IoT and M2M Nodes

Antenna length 31 cm
N female connector

Does not include mast.


TAGRA GPC-868 Antena vertical Omnidireccional 868 Mhz Conector N

kit content
  • TAGRA GPC-868 antenna
  • Antenna support (Includes flange for mast)

TAGRA GPC-868 Antena vertical Omnidireccional 868 Mhz Conector N

Characteristics

  • Frequency 868-870 Mhz.
  • Aluminum antenna.
  • Antenna type Fixed base.
  • Impedance 50 Ohm.
  • Type 2 x 5/8 collinial wave
  • Antenna length 31 cm
  • Radial length 3 x 6.5 cm
  • Omnidirectional.
  • N female antenna connector
  • Vertical polarization.
  • Power. max. 125W

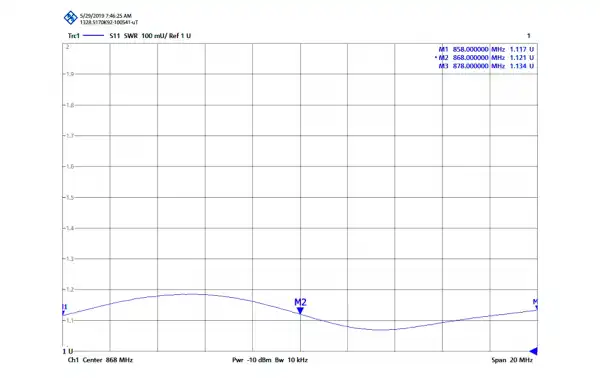

  • VSWR <1.2:1.
  • Gain 7.15 dBd
  • Wind resistance 120 km
  • Weights 550 gr.
  • Mast mounting type.
  • Maximum mast diameter 30-45 mm
  • Support included (Stainless Steel)
