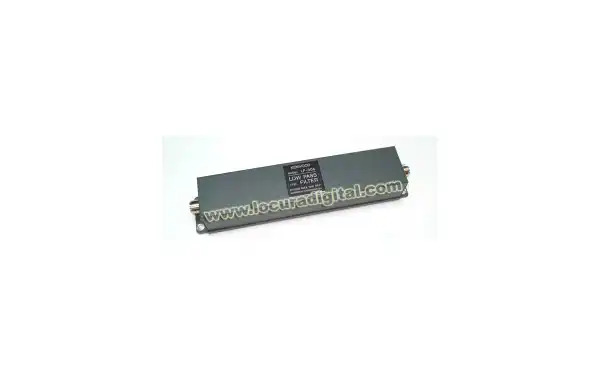

Kenwood LF-30A Filtro of HF

 61967
Discontinued product.
  • LF30A
  • The LF-30A is a filter of passage under designed to suppress the armonicos contained in signals RF of...

    More info


We're working in our new page, i'ts possible that you discover some mistakes.

In that case, you can notify us

clicking HERE..



ref: LF33C/strong>

Kenwood LF-320Filtro of HF

The LF-320is a filter of passage under designed tosuppress the armonicos contained in signals RF of the transmitter and to prevent TVI and BCI. Its frequency limit is established in 30MHz for the transmission in a 28 frequency range from 1.9 to MHz.

Manual in Spanish, Italian, ingles, frances, German and holandes

CARACTERíSTICAS MAIN


- Attenuation of overtones of up to 100 dB.
- High durability against current of entrance of 500 W.
- Loss of insertion of 0.5 dB or less.





Frequency Limit: 30 MHz
Attenuation: On 90 dB of 90 - 300 MHz
Durability against power loss: 1kW PEP
Loss of insertion: Below 0.5 dB to 30 MHz
Impedance: 50 n
Dimensions: 244 xs 50 xs 40 mm
Weight: Below 560 g
