COMET CF-30MR LOW-PASS FILTER
COMET CF-30MR LOW-PASS FILTER
Make the first review120,50€ VAT included 99,59€ excl. VAT
available. Estimated delivery 2-5 days. available in shop Last units Delivery price from 30,25€
Description COMET CF30MR
COMET CF-30MR

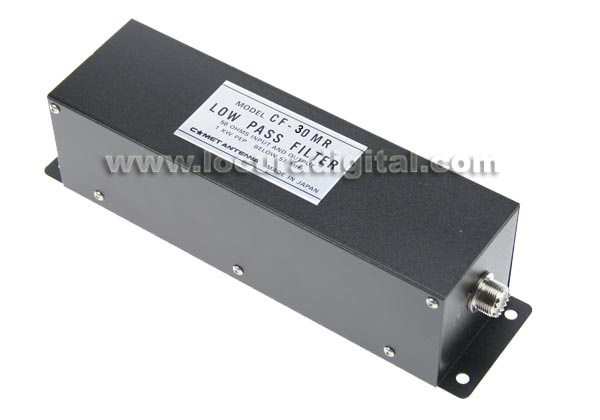

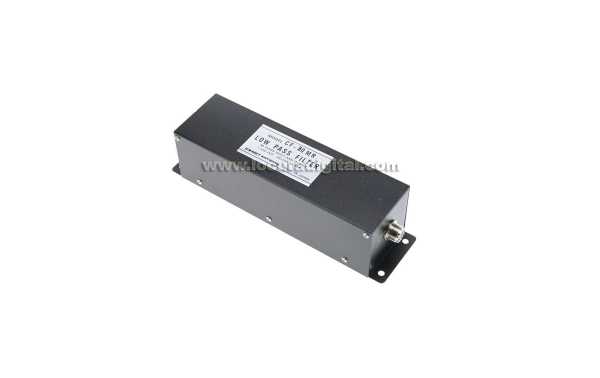

COMET CF-30MR LOW-PASS FILTER
It's a low-pass filter designed to suppress the harmonics contained in the transmitter RF signals and to prevent TVI and BCI.
Its limit frequency is set to 30 MHz for transmissions within a frequency range from 1.9 to 30 MHz.
Features
- Passband: ~30MHz
- Insertion Loss: Wihin 0.4dB
- Attenuation: Above 60dB at 42~250MHz
- Input/out Impendance: 50 Ohm
- VSWR: Below 1.2
- Max Power: 500W CW, 1 KW PEP
- Input/Output Connector: UHF MALE
- Weight: 800g
- External Dimensions: W250xD66XH64(mm)
