BRV7 KIT-2 BARRISTER Camera for reversing maneuvers one BRV170 + CAMER

BRV7 KIT-2 BARRISTER Camera for reversing maneuvers one BRV170 + CAMER

BRV7KIT2

Referencia: BRV7KIT2 (BARRISTER)

stock

199,65 incl. VAT

165,00€ w/o VAT

BUY NOW

We're working in our new page, i'ts possible that you discover some mistakes. In that case, you can notify us clicking HERE.

!! VISION GEAR KIT BACK

1 SMALL CAMERA!

! DEALERS SPECIAL PRICES!

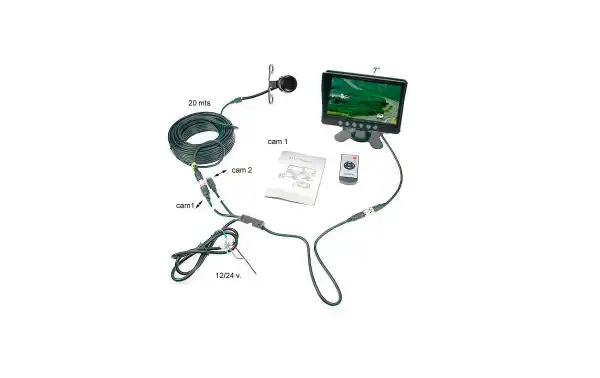

BRV7 KIT-2 BARRISTER Camera for reversing maneuvers + 7 inch Monitor - BLACK HOUSING

The kit is composed of a 7-inch monitor includes an outer chamber of color. This camera is placed in the rear of the vehicle, at all times allowing you to see what's behind.

The camera is very robust and includes a support assembly is simple.
VIDEO enters the monitor by the cable that incorporates .The monitor can reverse the image. The monitor includes a screen protector, protect from light, offering a clean and sharp at all times.

Ideal for campers, caravans, trucks, vans, etc.. To reverse maneuvers, parking, loading, vehicle security and surveillance, etc..

Subminister Kit with all accessories needed for assembly
Monitor 7-inch TFT LCD.
20 meter connection cable.
Supplied with all accessories for assembly.

noctuna vision has not.


POSSIBLE USES

Connecting the monitor to the camera via the connecting cables get the picture at all times.

Includes

http://www.locuradigital.com/camaras_vehiculos/marcha_atras/monitor_brv700_color_7_pulgadas_barrister.htm

Front BRV7

BRV7

Side view BRV7

BRV7

Rear View BRV7

BRV7

BRV7

BRV7

http://www.locuradigital.com/camaras_vehiculos/marcha_atras/monitor_brv700_color_7_pulgadas_barrister.htm

View camera - BRV7

BRV170 BARRISTER cámara visión trasera miniatura conexion RCA voltage 12 voltios

BRV170 BARRISTER cámara visión trasera miniatura conexion RCA voltage 12 voltios

BRV170 BARRISTER cámara visión trasera miniatura conexion RCA voltage 12 voltios

BRV170 BARRISTER cámara visión trasera miniatura conexion RCA voltage 12 voltios

BRV170 BARRISTER cámara visión trasera miniatura conexion RCA voltage 12 voltios

BRV170 BARRISTER cámara visión trasera miniatura conexion RCA voltage 12 voltios

Camera Connector

DF2510 SISTEMA AYUDA APARCAMIENTO

BRV7

1 CAMARA CON SONIDO


FEATURES

-The system suitable for large vehicles embergadura
- Buena vista. No reflective
-Possibility of choosing the image
- 7 inch TFT LCD Monitor AV1, AV2
- Waterproof Camera is designed for exterior
- High resolution and wide field of view

SPECIFICATIONS

TFT LCD

Display Device

Color Monitor TFT-LCD

Screen Size

7 inch

Audio out

200mw

Speaker

no

Terminals

(AV1, AV2,

Power consumption

about 8W

Dot Pitch

0.107 (H) 0.319 (V)

Resolution

960 (H) 234 (V)

angle view

U: 15 /D: 35, R / L: 55

Contrast

150:1

Brightness
300cd/m2. Contrast: 150:1 Welght: 430g
Dimensions
163mm Height 125mm Width 30.5mm Fund

Camera

Image Sensor

Color CCD

Input Voltage

DC12V ± 15% (350rnA)

Lens:

2.9-3.6mm (Board)

Scanning System

2:1 lnterlace

Resolution

380 TV lines

S / N

~ 48dB (AGC Off)

video signal output

1.0Vp-p 75 ohm

gamma ray Feature

0.45

Internal Synchronization

SyncSystem

Minimum Illumination

0LUX (IR LED ON)

IR projection distance

6 meters

Power consumption

2W

Water Resistance

IP66

Chassis Material

I may

Weight of camera and support

380g

Operating temperature

-10 · C-+50 'C

SETTINGS POSSIBLE SCHEME WITH 1 CAMERA

SETTINGS POSSIBLE SCHEME WITH 1 CAMERA

SETTINGS POSSIBLE SCHEME WITH 2 CAMERAS

SETTINGS POSSIBLE SCHEME WITH 1 CAMERA
