BARRISTER TRUCK2 BRV7 Camera for reversing maneuvers February 7 inch M

BRV7 TRUCK 65413
Available product.
  • BRV7TRUCK2
  • BARRISTER truck1 BRV7 Camera for reversing maneuvers February 7 inch Monitor CAMERA + SPECIAL TRAILERS rear...

    More info

  • 425,00€
  • VAT not included

!! BARRISTER TRUCK2 BRV7 reversing maneuvers Camera 2 7 inch Monitor CAMERA + SPECIAL TRAILERS!


BRV7 KIT 1 BARRISTER Camera for reversing maneuvers + EXTRA FLAT 7 inch Monitor - BLACK HOUSING
Valid for caravans, trailers, etc ...
The kit is composed of a 7-inch monitor includes an outer chamber of color. This camera is placed in the rear of the vehicle, at all times allowing you to see what's behind.

The camera is very robust and includes a support assembly is simple. Thanks to this support we can set the camera angle. Includes tip technology that detects light. At the moment the camera detects no light, goes to night mode.

The VIDEO they enter the monitor by the cable that incorporates.The monitor can reverse the image. The monitor includes a screen protector, protect from light, offering a clean and sharp at all times.

Ideal for campers, caravans, trucks, vans, etc.. To reverse maneuvers, parking, loading, vehicle security and surveillance, etc..

Subminister Kit with all accessories needed for assembly
Monitor 7-inch TFT LCD.

Supplied with all installation accessories.

POSSIBLE USES

Continuous Vision Camera

Connecting the monitor to the camera via the connecting cables get the picture at all times.

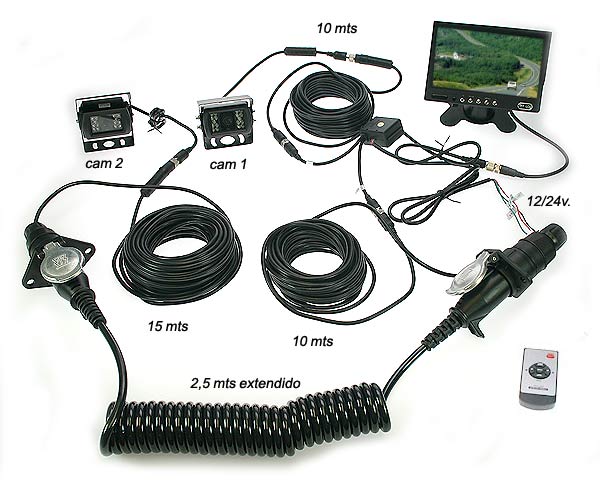

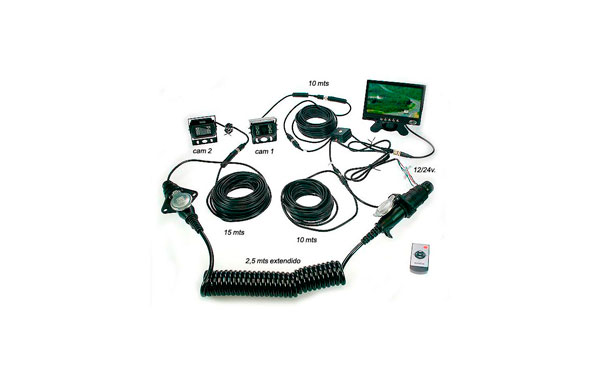

Includes:

1 Remote Control
1 Monitor 7 inch
2 Camara
1 Cable 15 meters
2 Cable of 10 meters
1 Conexion spiral connectors
1 Set of connection cables conetar valid for 12 or 24 v.

BRV7 TRUCK1 BARRISTER Camara para reversing maneuvers 1 CAMARA + Monitor 7 pulgadas ESPECIALES PARA REMOLQUES

Includes

BRV7 TRUCK2 BARRISTER Camara para reversing maneuvers 1 CAMARA + Monitor 7 pulgadas ESPECIALES PARA REMOLQUES

Front BRV7

MONITOR BRV 700 COLOR 7 PULGADAS

Side view BRV7

ref: BRV700

Rear View BRV7

MONITOR BRV 700 COLOR 7 PULGADAS

MONITOR BRV 700 COLOR 7 PULGADAS

ref: BRV700

View Camera - BRV7

Camera Connector

DF2510 SISTEMA AYUDA APARCAMIENTO

ref: BRV700

ref: BRV700

BRV1000

SPECIAL CONNECTION CABLE CAR CARAVAN, TRAILER ETC. ARTICULATED VEHICLE CONNECTORS FEMALE AND MALE

INCLUDES

1 BRV
1001 CABLE 10 meters
1 BRV1002 15 MTS CABLE CONNECTED TO THE CAMERA
1 BRV1003 CABLE CONNECTION TO
BRV1001 And BRV1002
1 BAG CONTORNILLOS
2 METAL BRACKETS OF FIXING OF CONNECTORS


BRV1000 KIT ESPECIAL REMOLQUES INCLUDES BRV-1001-BRV-1002-BRV-1000

BRV1000 KIT ESPECIAL REMOLQUES INCLUDES BRV-1001-BRV-1002-BRV-1000

BRV1000 KIT ESPECIAL REMOLQUES INCLUDES BRV-1001-BRV-1002-BRV-1000

BRV1000 KIT ESPECIAL REMOLQUES INCLUDES BRV-1001-BRV-1002-BRV-1000

BRV1000 KIT ESPECIAL REMOLQUES INCLUDES BRV-1001-BRV-1002-BRV-1000


FEATURES

-The system suitable for large vehicles embergadura
- Buena vista. No reflective
-Possibility of choosing the image
- 7 inch TFT LCD Monitor AV1, AV2
- Waterproof Camera is designed for exterior
- High resolution and wide field of view

SPECIFICATIONS

TFT LCD

Display Device

Color Monitor TFT-LCD

Screen Size

7 inch

Audio out

200mw

Speaker

no

Terminals

(AV1, AV2

Power consumption

about 8W

Dot Pitch

0.107 (H) 0.319 (V)

Resolution

960 (H) 234 (V)

angle view

U: 15 /D: 35, R / L: 55

Contrast

150:1

Brightness
300cd/m2. Contrast: 150:1 Welght: 430g
Dimensions
Width 163mm Height 125mm 30.5mm Fund

Camera

Image Sensor

Color CCD

Input Voltage

DC12V ± 15% (350rnA)

Lens:

2.9-3.6mm (Board)

Scanning System

2:1 lnterlace

Resolution

380 TV lines

S / N

~ 48dB (AGC Off)

video signal output

1.0Vp-p 75 ohm

gamma ray Feature

0.45

Internal Synchronization

SyncSystem

Minimum Illumination

0LUX (IR LED ON)

IR projection distance

6 meters

Power consumption

2W

Water Resistance

IP66

Chassis Material

I may

Weight of camera and support

380g

Operating temperature

-10 · C-+50' C

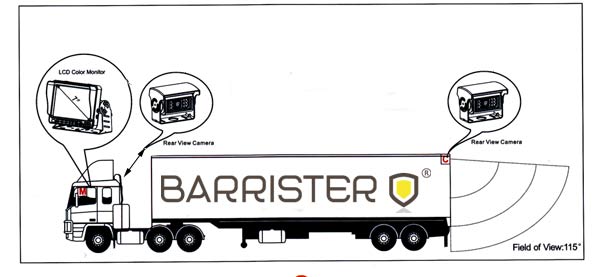

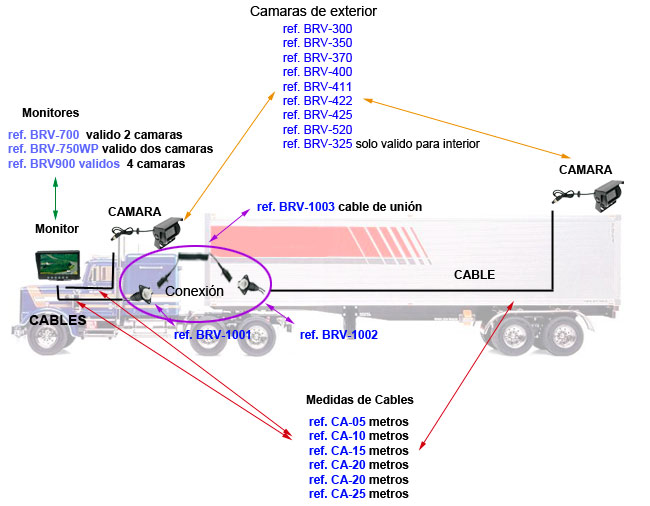

SETTINGS POSSIBLE SCHEME

Accessories
