Reference SIRIOSDC2415 | SIRIO

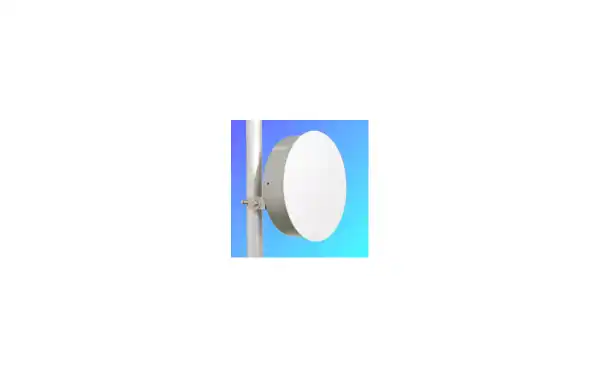

15 SYRIAN SDC 24 DIRECTIVE ANTENNA WIRELESS

15 SYRIAN SDC 24 DIRECTIVE ANTENNA WIRELESS. For DSC, PCS, DECT, UMTS, WLAN.Conector of antenna SMA female. Vertical polarization or Horinzontal. Discharge ganacia

Make the first review

56,63 VAT included 62,92€ Ahorras 6,29€ (10,00%) 46,80€ excl. VAT

Additional Services

Are you one of those who prefer not to wrap gifts? We do it for you!

With the Paper Gift Service, you will receive your product wrapped and ready to deliver to your recipient!

What if the recipient is you? Why not?

We all like to open a gift from time to time, so do not cut and hit the whim! We assure you that we will surround you with all the affection of the world.

This service is available for the following countries: España - Peninsula y Baleares, Canarias, Alemania, Bélgica, Eslovaquia, Eslovenia, Estonia, Francia, Grecia, Holanda, Irlanda, Italia, Letonia, Luxemburgo, Noruega, Polonia, Portugal, Reino Unido, República Checa, Suecia, Andorra, Austria, Bulgaria, Chipre, Dinamarca, Finlandia, Gibraltar, Hungría, Malta, Mónaco, Rumania, Suiza, Ceuta y Melilla, Gibraltar, Francia Corcega, Portugal - Azores y Madeira.

If in the purchase process you select a country, that are not specified in the list, we will delete automatically the service. Therefore you will not be charged anything. We are working to improve our services. So we will try, of course, to have this service in all countries.

available. Estimated delivery 1-2 days. available in shop Last units Delivery price from 6,50€

Description SIRIO SIRIOSDC2415


DESCRIPTION OF THE PRODUCT

 SIRIO SIRIOSDC2415

SIRIO SIRIOSDC241515 SYRIAN SDC 24 DIRECTIVE ANTENNA WIRELESS. For DSC, PCS, DECT, UMTS, WLAN.Conector of antenna SMA female. Vertical polarization or Horinzontal. Discharge ganacia
 SIRIO SIRIOSDC2415

- Antenna bases directive
- High-Gain.
- Protection static unloadings.
- Thermoplastic PCB UV.
- Impedance 50 Ohm.
- Frequency 2400-2485 Mhz.
- Polarization vertical-horizontal.
- Rad. (HPLANE) -3 dB=33º 2442.5
- Rad. (EPLANE) -3 dB=27º 2442.5.
- V.S.W.R. < 1.6:1
- Pot. max. 20 W.
- Gain 15 dBi.
- Insolation > 25 dB.
- Dimensions 275x80 mm.
- Weight 720 gr.
- Connection SMA female.




SIRIO SIRIOSDC2415

SIRIO SIRIOSDC2415

 SIRIO SIRIOSDC2415



SIRIO SIRIOSDC2415



SIRIO SIRIOSDC2415




SIRIO SIRIOSDC2415




SIRIO SIRIOSDC2415




SIRIO SIRIOSDC2415




SIRIO SIRIOSDC2415




SIRIO SIRIOSDC2415




SIRIO SIRIOSDC2415




SIRIO SIRIOSDC2415


 SIRIO SIRIOSDC2415



CHARACTERISTICS

SIRIO SIRIOSDC2415

- Antenna bases directive
- High-Gain.
- Protection static unloadings.
- Thermoplastic PCB UV.
- Impedance 50 Ohm.
- Frequency 2400-2485 Mhz.
- Polarization vertical-horizontal.
- Rad. (HPLANE) -3 dB=33º 2442.5
- Rad. (EPLANE) -3 dB=27º 2442.5.
- V.S.W.R. < 1.6:1
- Pot. max. 20 W.
- Gain 15 dBi.
- Insolation > 25 dB.
- Dimensions 275x80 mm.
- Weight 720 gr.
- Connection SMA female.
