Reference SIRIOPA24 | SIRIO

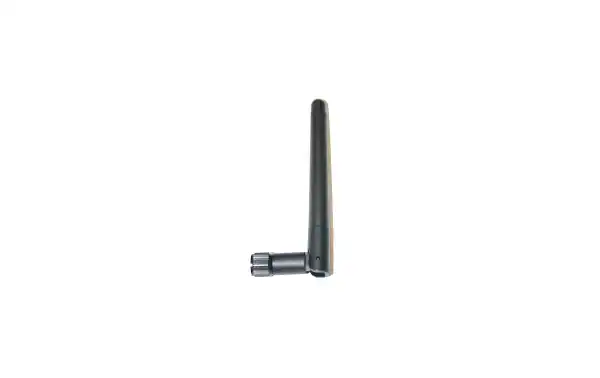

4 SYRIAN PA 2. omnidirecional Antenna 2.4Ghz.

4 SYRIAN PA 2. omnidirecional Antenna 2.4Ghz. Idela to routter wireless with male connector SMA.

Make the first review

12,34 VAT included 14,52€ Ahorras 2,18€ (15,00%) 10,20€ excl. VAT

Additional Services

Are you one of those who prefer not to wrap gifts? We do it for you!

With the Paper Gift Service, you will receive your product wrapped and ready to deliver to your recipient!

What if the recipient is you? Why not?

We all like to open a gift from time to time, so do not cut and hit the whim! We assure you that we will surround you with all the affection of the world.

This service is available for the following countries: España - Peninsula y Baleares, Canarias, Alemania, Bélgica, Eslovaquia, Eslovenia, Estonia, Francia, Grecia, Holanda, Irlanda, Italia, Letonia, Luxemburgo, Noruega, Polonia, Portugal, Reino Unido, República Checa, Suecia, Andorra, Austria, Bulgaria, Chipre, Dinamarca, Finlandia, Gibraltar, Hungría, Malta, Mónaco, Rumania, Suiza, Ceuta y Melilla, Gibraltar, Francia Corcega, Portugal - Azores y Madeira.

If in the purchase process you select a country, that are not specified in the list, we will delete automatically the service. Therefore you will not be charged anything. We are working to improve our services. So we will try, of course, to have this service in all countries.

available. Estimated delivery 1-2 days. available in shop Delivery price from 6,50€

Description SIRIOPA24


DESCRIPTION OF THE PRODUCT

SIRIO SIRIOPA24

4 SYRIAN PA 2. omnidirecional Antenna 2.4Ghz. Idela to routter wireless with male connector SMA. With inclination 90ª Image N (2)

SIRIO SIRIOPA24

Omnidirectional
Monkey, Unity-gain
90° inclination adjustable radiator
Radiator High quality protected by thermoplastic material
For WLAN system

 SIRIO SIRIOPA24


 SIRIO SIRIOPA24SIRIO SIRIOPA24

SIRIO SIRIOPA24


CHARACTERISTICS

Electrical dates
Type: 1 Dipole 2% u03BB
Frequency range: 2400-2485 for MHz WLAN system
Impedance: 50% u03A9 unbalanced
Radiation (H-plane): 360° omnidirectional
Radiation (E-plane): beamwidth AT -3 dB = 60°
Radiation angle: 0°
Polarization: vertical
Gain: 2.15 dBi
V.S.W.R. in bandwidth: %u2264 1.8:1
Max. to power: 1 Watt (CW) AT 50° C
Feed system/position: direct/to center
Connection:
 PA-2.4-2 TNC: TNC-male to review polarity, 90° inclination
 PA-2.4-2 SMA: SMA-male to review polarity, 90° inclination

Mechanical dates
Housing Materials: Chromed Brass, Copper, Thermoplastic
Operating temperature: -20° C to 50° C
Dimensions (approx.):
 PA-2.4-2 TNC: Ø 14,5 xs 141 mm
 PA-2.4-2 SMA: Ø 10 xs 108 mm
Weight (approx.): 25 gr.
