SYRIAN INGLASS WLAN DIRECTIVE ANTENNA WIRELESS

SYRIAN INGLASS WLAN DIRECTIVE ANTENNA WIRELESS. Connector of Male antenna SMA. Vertical polarization. Discharge ganacia more Manufacturer: sirio Reference SIRIO_INGLASS

available
16,94 incl. VAT
14,00€ w/o VAT
Delivery price from 30,25€
We're working in our new page, i'ts possible that you discover some mistakes. In that case, you can notify us clicking HERE.

DESCRIPTION OF THE PRODUCT

 SIRIO SIRIO_INGLASS

SIRIO SIRIO_INGLASS

ref: SIRIO_INGLASS

SYRIAN INGLASS WLAN DIRECTIVE ANTENNA WIRELESS. Connector of Male antenna SMA. Vertical polarization. Discharge ganacia.

GENERAL PERFORMANCES

 - Antenna of outer interior/
 - Omnidirectional Gain
 - Monkey-band
 - Bare Assembly sogre crystal or
 - Paragraph Wlan system

ELECTRICAL DATA

 - Type: 1 2% u03BB dipole.
 - Frequency: 2300-2500 MHz for system WLAN.
 - Impedance: 50 Ohms
 - Radiation (Flat h): 360 ° omnidirectional.
 - Radiation (Flat e): 54 ° in 2.4 GHz.
 - Polarization: vertical.
 - Gain: 0 dBd, 2,1 dBi.
 - V.S.W.R in band amplitude: %u2264 2.0:1.
 - Maxima power: 10 watts (CW) in 50 ° C.
 - System of Feeding/Position: Direct/Center.
 - Cable Length/Type: 3 ms/RG 174.
 - Connection: SMA-MACHO

MECHANICAL DATA

 - Material: PCB, Thermoplastico, Receives.
 - Dimensions (approx).: 57 xs 77 xs 10 mm.
 - Weight (approx).: 70 gr.

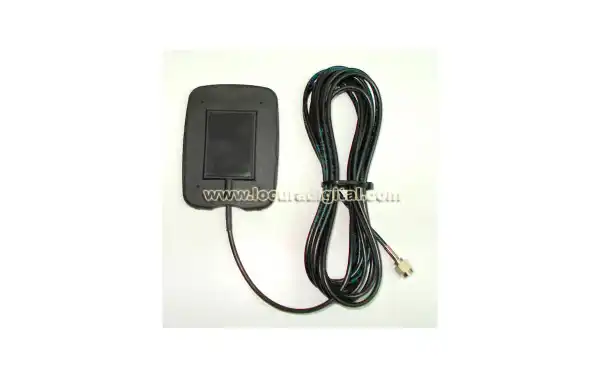

Back base wifi seen with cable and connector

SIRIO_INGLASS



Connector

SIRIO_INGLASS



SIRIO_INGLASS



Table S.W.R

SIRIO_INGLASS



Installation in computer

SIRIO_INGLASS



Installation in window

SIRIO_INGLASS



Installation in car

SIRIO_INGLASS



CHARACTERISTICS

SIRIO SIRIO_INGLASS

ref: SIRIO_INGLASS

SYRIAN INGLASS WLAN DIRECTIVE ANTENNA WIRELESS. Connector of Male antenna SMA. Vertical polarization. Discharge ganacia.

GENERAL PERFORMANCES

 - Antenna of outer interior/
 - Omnidirectional Gain
 - Monkey-band
 - Bare Assembly sogre crystal or
 - Paragraph Wlan system

ELECTRICAL DATA

 - Type: 1 2% u03BB dipole.
 - Frequency: 2300-2500 MHz for system WLAN.
 - Impedance: 50 Ohms
 - Radiation (Flat h): 360 ° omnidirectional.
 - Radiation (Flat e): 54 ° in 2.4 GHz.
 - Polarization: vertical.
 - Gain: 0 dBd, 2,1 dBi.
 - V.S.W.R in band amplitude: %u2264 2.0:1.
 - Maxima power: 10 watts (CW) in 50 ° C.
 - System of Feeding/Position: Direct/Center.
 - Cable Length/Type: 3 ms/RG 174.
 - Connection: SMA-MACHO

MECHANICAL DATA

 - Material: PCB, Thermoplastico, Receives.
 - Dimensions (approx).: 57 xs 77 xs 10 mm.
 - Weight (approx).: 70 gr.
