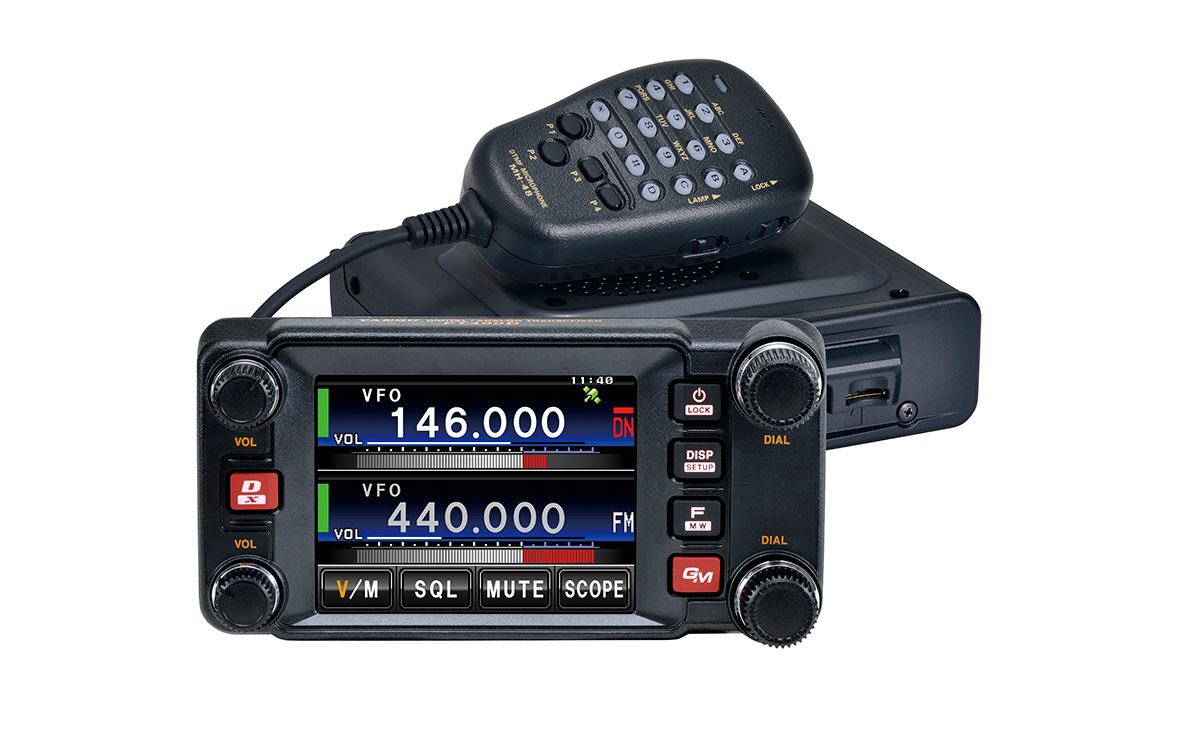

YAESU FTM-400XDE DIGITAL BI-BAND mobile station 144/430 Mhz

YAESU FTM-400XDE

FTM-400-XDE Mobile Transceiver Dual Band VHF-UHF 144/430 Mhz. APRS. It is the first mobile introduced to be fully compatible for use in System Fusion dual mode system. Compared to other FDMA digital modulation schemes, C4FM has excellent communication quality (BER: Bit Error Rate characteristics). C4FM is the standard method for professional communication devices in FDMA, and is therefore considered to be the main digital communication mode of the future. The FTM-400XDE operates in three (3) digital modes and one (1) analog mode to suit your needs. This feature-packed radio is our first digital mobile equipped with the new Automatic Mode Select (AMS) feature that instantly detects the received signal mode. The AMS function enables operation and eliminates the need to manually switch between communication modes.

!! See equivalent transmitter Yaesu FTM-500DE !!

• 1 YAESU FTM400DE transmitter
• 1 12 volt power cable
• 1 Hand microphone ref. MH48A6JA
• 1 Transmitter support ref. MMB-36
• 1 Cable connection cover 3 mts
• 1 head support
• 1 Mono to stereo adapter

Characteristics

• Dual band VHF-UHF 144/430 Mhz. APRS
• Robust long-range transmitter
• Output Power RF Transmitter: 50W/20W/5W Type.
• Modulation: F1D, F2D, F3E: Variable reactance modulating, F7W: 4FSK (C4FM)
• High power audio output Loud 3 watts Audio outputs with the internal speaker.
• 8 watts of power via optional external speaker (MLS-200-M10)
• Frequency range
  Receiver
  108-137 MHz (Air Band)
  137-174 MHz (144 MHz HAM)
  174-400MHz (GEN1)
  400-480 MHz (430 MHz HAM)
  Transmitter
  144 - 146MHz
  430-440MHz
• APRS ®Included
  1200/9600bps APRS (Automatic Packet Reporting System) data communication capability included.
• cross band
  The FTM-400DE is cross-band in analog mode, a very important feature for emergency situations, etc.
• GPS Included
  Built in GPS receiver and antenna provides location, time, direction and APRS information. A GPS log function included. External GPS devices can be connected.
• hands-free operation

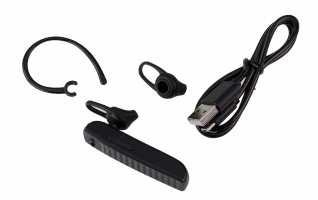

  Law Abiding (when required) hands-free operation is available through the use of the optional Bluetooth ® wireless unit and headset. Optional Bluetooth ® Unit (BU-2) and Headset (BH-2A) are required.
• Photo function (image data transmission)
  Just plug in an MH-85A11U (optional) Camera Microphone. Press the shutter button to take snapshots, and then the image data can be displayed on the screen, and easily output to other C4FM FDMA digital transceivers. Image data that is sent from a group member is displayed on the screen in full color. This image data also keeps track of the snapshot's time and GPS location data. It is easy to navigate to the location on the photo using the back track feature. In addition, it can be seen on the screen, whether the transmitted data was received by the member station. The snapshot image or received data is stored in a high capacity micro SD card. You can retrieve and send those image data from the SD card at any time. Images and data files can be easily viewed and edited using a personal computer. * Micro SD card (not included) is required for snapshot function
• Digital Group Monitor (GM) Function
• The digital GM function automatically checks whether registered members of a group are within communications range, and displays information such as distance and bearing for each call sign on the screen.
• This useful feature not only allows you to see which friends are within communication range, but also allows you to see at a glance where all the members of the group are. Also, this function can be used to send messages and image data between group members. The Monitor Digital Group applies to direct communications between members. It is not applicable through a repeater. This is a valuable feature for public service group activities, Search and Rescue operations, and any number of other limited uses.
• Smart Navigation function
• Real-time navigation function allows checking the location at any time.
• In digital V/D mode, information such as position data is transmitted along with voice signals so that the distance and direction to other stations can be displayed in real time while communicating with them.
• Backtrack Function
• The Backtrack function allows navigation to a recorded location at the touch of a button. When you go hiking or camping, you just need to register your starting or camping point before departure, and the distance and bearing of the current location is displayed on the screen. This is a valuable feature for search and rescue operations, as well as casual hiking and camping.
• Voice guidance and recording function
• Optional Voice Guide Unit (FVS-2) announces your operating frequency, current band change and APRS® messages.
• You can record up to 5 minutes of received signals, or continuously record the last 30 seconds of received audio.
• Real-time band range with uninterrupted RX audio
• 500 memory channels for each A (Main) Band and B (Sub) Band
• Storing memory channels and personal settings on an inserted Micro SD card
• By using a micro SD card, it is easy to copy and transfer the radio data to other compatible radios
• Versatile Scanner Receiver for Enthusiasts (VFO, Scan Memory, etc) Monitoring
• analog and digital clock
• Timer function: Event timer with lap or countdown functions.
