ICOM IC-2730E BLACK EDITION VHF-UHF dual-band transmitter, cross band.

ICOM-IC-2730E BLACK EDITION

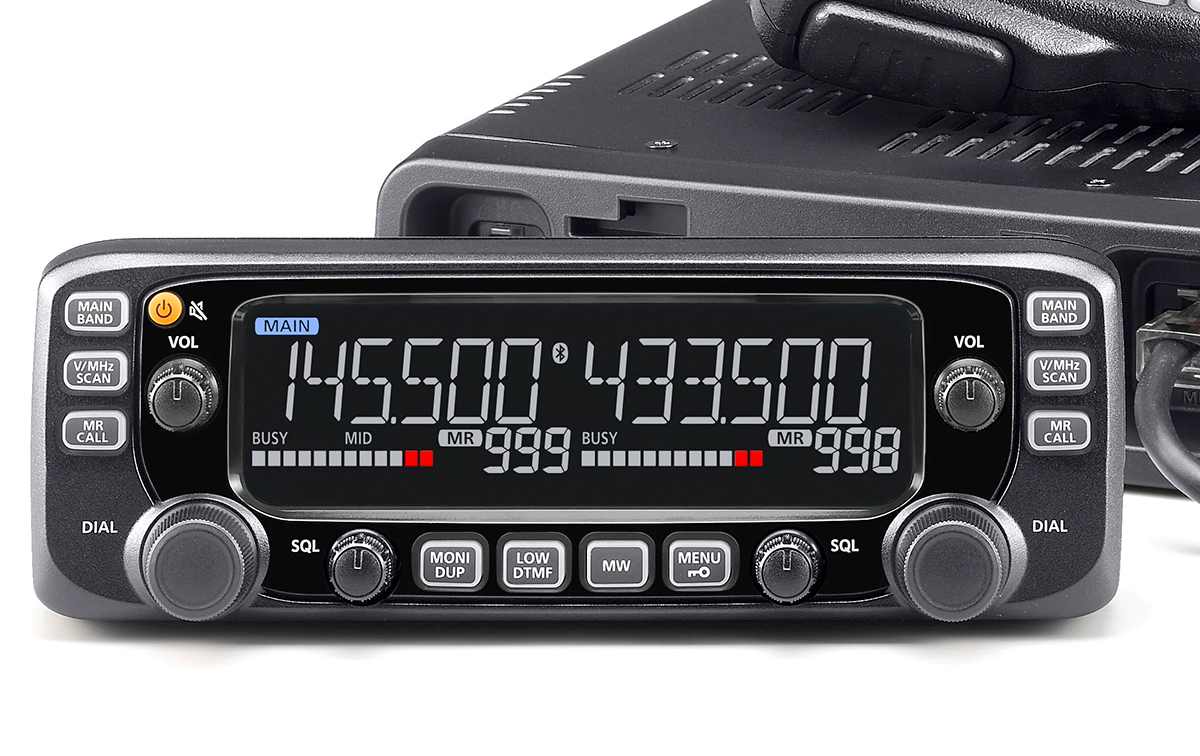

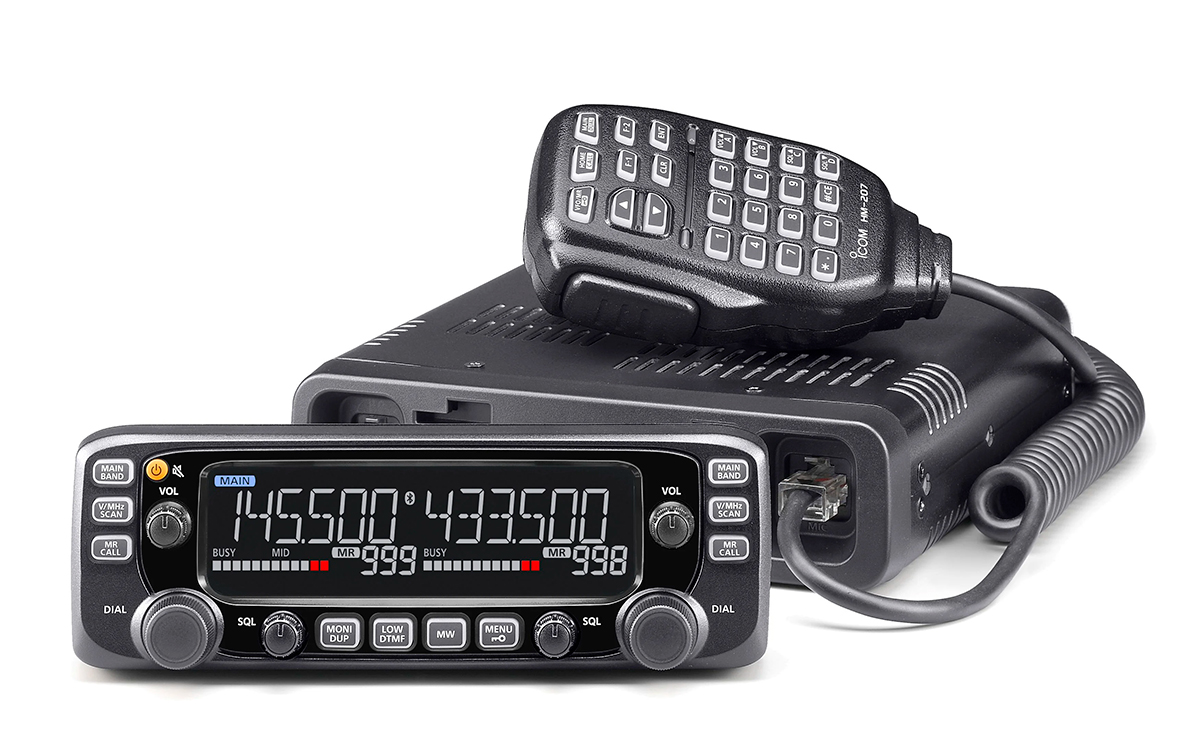

Icom IC2730E BLACK EDITION, new dual-band VHF/UHF transceiver, IC-2730E. It is the successor to the IC-2720H series, inheriting basic concepts and advanced features such as simultaneous V/V, U/U reception capability, independent tuning adjustment knobs and separate controller. Special edition with black backlit display , ideal for those looking for an elegant and functional design. Professional performance with the usual ICOM quality. The large white backlit display provides easy and intuitive operation.

Characteristics

• High contrast black inverted LCD display
• Simultaneous reception VHF/VHF, UHF/UHF and VHF/UHF
• Output power of 5/15/ 50 W in VHF and UHF
• Durable PA module for high power operation
• More than 1000 memory channels (1052 total)
• Wide reception coverage: 118–174 MHz and 375–550 MHz
• Reception of aeronautical (AM) and marine (FM) bands
• 50 CTCSS tones and 104 built-in DTCS codes
• Split tone function for uplink and downlink
• HM-207 remote microphone included
• Optional active noise-cancelling microphone HM-209
• VS-3 Bluetooth headset support (requires UT-133 module)
• Hands-free operation via VOX with the VS-3
• Easy controller mounting with optional MBF-1 and MBA-5 bracket
• Possibility to mount the controller on the main unit with MBA-4
• Symmetrical controls for both bands (VHF and UHF)
• CS-2730 programming software available free of charge
• Versatile scanning capability
• Squelch delay and squelch attenuator function
• Subband auto mute function
• Subband occupancy warning function
• Programmable automatic shutdown
• Time-out Timer
• 16 DTMF auto-dialing memories
• CI-V remote control capability (via OPC-478UC)
• 3.5 mm (1/8") / 8O external speaker connector
• Antenna impedance of 50O (SO-239)
• Frequency stability of ±2.5 ppm
• Power Requirements: 13.8V DC ±15%
• Transmission current consumption: approximately 13A
• Reception current consumption: 1.8A (maximum audio) / 1.2A (standby)
• Main unit dimensions: 150×40×151 mm
• Main unit weight: approximately 1.2 kg
• Controller dimensions: 150×50×27.2 mm
• Controller weight: about 140g
• Transmission frequency: 144–146 MHz and 430–440 MHz (EUR version)
• Emission types: F2D, F3E (FM, FM-N)
• Maximum frequency deviation: ±5.0 kHz / ±2.5 kHz (W/N)
• Spurious emission rejection: less than -60 dBc
• Microphone impedance: 600O (8-pin modular connector)
