Yaesu FT-5Dr-E Kit SSM-BT-10 Dual Band Walkie Talkie 144 VHF/ 430 UHF

Yaesu FT-5Dr-E Kit SSM-BT10

Yaesu FT-5Dr-E and SSM-BT10 Kit: Connectivity without limits, communication without restrictions

The Yaesu FT5DR, accompanied by the SSM-BT-10 kit, represents the culmination of a portable C4FM transceiver with every feature imaginable. Designed to provide superior operability and advanced features, this device stands out in the world of radio communication. The Yaesu Standard Horizon SSM-BT10 is a set of Bluetooth headphones designed specifically for use with the Yaesu FT5DR and other Yaesu models that support Bluetooth headphones.

With rubber protection on the corners of the main body, the FT5DR exhibits a robust and shock-resistant construction, ensuring its durability in various conditions of use. The IPX7 waterproof rating ensures effective protection against water ingress, offering confidence even in wet environments.

The completely flat rear body not only provides a stylish look but also offers excellent grip for the radio operator. Thoughtful ergonomics of the design provide comfort during prolonged use.

This transceiver not only meets expectations in terms of performance and durability, but also incorporates sophisticated new features to enhance the user experience. Whether for professionals or radio enthusiasts, the Yaesu FT5DR with SSM-BT-10 kit represents excellence in portable communication.

"Explore the new era of communication with the advanced FT-5Dr-E Kit and SSM-BT10 Bluetooth headphones from Yaesu."

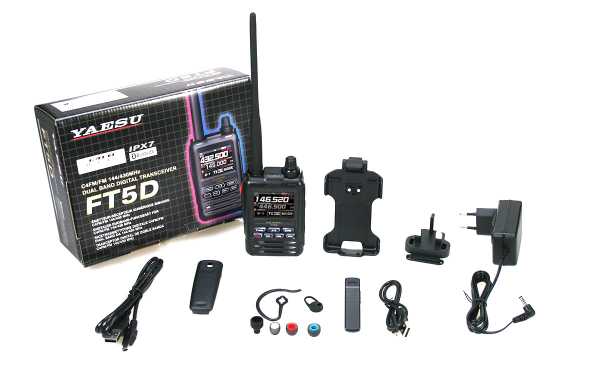

• 1 Yaesu FT-5DRE Walkie
• 1 Antenna
• 1 SBR-14LI 7.2V and 2200mAh lithium battery
• 1 SHB-13 Belt Clip
• 1 SAD-25 Charger
• 1 USB Cable
• 1 SSM-BT-10

Characteristics

• High visibility full color TFT touch panel display
• RF power 5W (selectable 5W/2.5W/1W/0.3W)
• The color of the operating frequency can be selected from white, blue or red).
• Simultaneous dual band reception (VV/UU/VU/UV) and C4FM/C4FM standby
• C4FM advanced digital mode with AMS (automatic mode selection), DG-ID function and smart navigation
• 1W (1000mW) of strong audio power with clear and crisp C4FM audio quality
• Robust construction: Robust rubber protection / IPX7 rated water protection
• PMG (Main Memory Group Activity Monitor)
• CAM (CH Activity Monitor)
• VFO band hopping function
• Micro SD card slot (up to 32 GB).
• Memory Automatic Grouping (MAG) function
• Recording function
• AM/FM simultaneous dual broadcast reception and 2-channel monitoring
• Equipped with micro SD card slot
• 1200/9600 bps APRS data communication
• Compatible with WIRES-X portable digital node
• Built-in Bluetooth unit and VOX function support easy and seamless hands-free operation
• Integrated 66-channel high-sensitivity GPS receiver
• High-speed band scope feature allows monitoring of up to 79 channels
• Frequency ranges: RX
• 1.8 - 30MHz
• 30 - 76MHz
• 76-108 MHz (FM broadcast)
• 108-137 MHz (air band)
• 137 - 174 MHz (144 MHz HAM)
• 174 - 222MHz
• 222 - 420MHz
• 420 - 470MHz (430MHz HAM)
• 470 - 800MHz
• B-band RX (secondary): 108-137 MHz (air band)
• 137 - 174 MHz (144 MHz HAM)
• 174 - 222MHz
• 222 - 420MHz
• 420 - 470MHz (430MHz HAM)
• 470 - 580MHz
• Frequency ranges: TX
• TX: 144 - 146 MHz
• TX 430 - 440 MHz
• Circuit type: NFM/AM: double conversion superheterodyne
• FM/AM Radio: direct conversion
• Modulation type: F1D, F2D, F3E, F7W
• RF Power Output: 5W/2.5W/1W/0.3W (@battery pack or EXT DC)
• Case size (W x H x D): 62 x 100 x 34 mm (with SBR-14LI, without remote control and antenna)
• Weight: 282 g (with SBR-14LI and antenna)

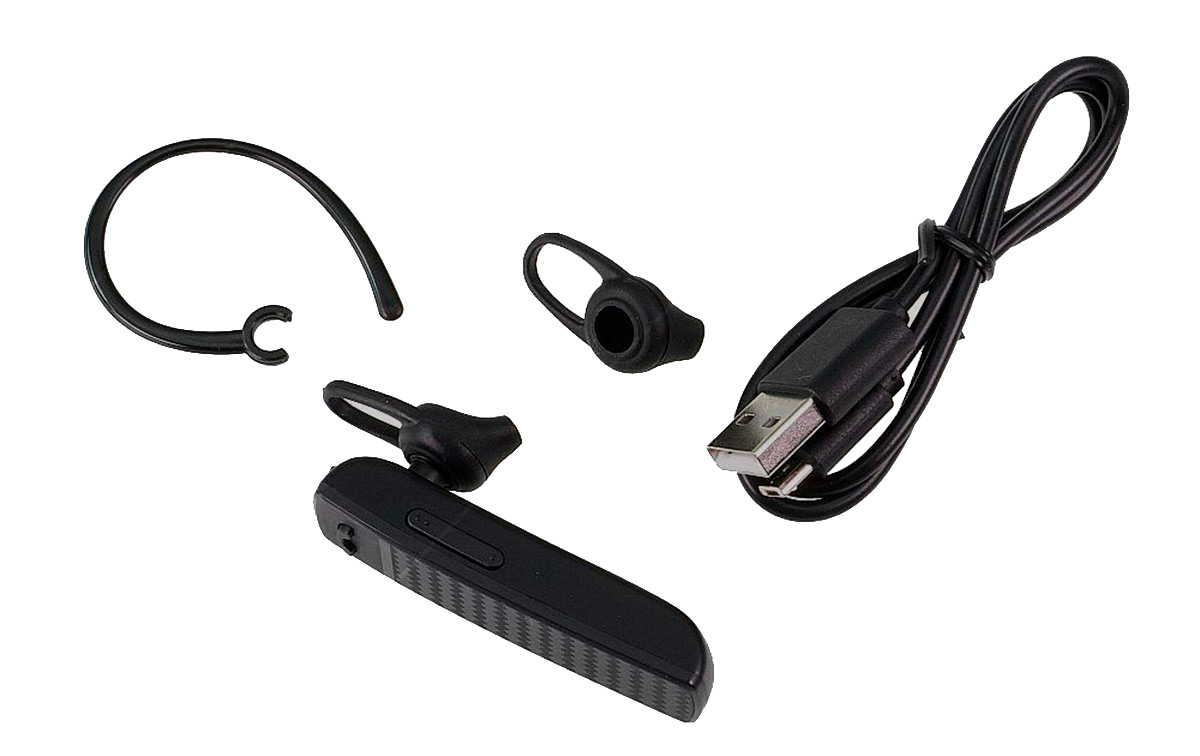

• SSM-BT10 Features
• Format: Bluetooth Headphones
• Black color
• Bluetooth 4.1
• Battery Included
• Bluetooth HSP/HFP compatible
• Dimensions60 x 15.2 22 mm
• Weight 12Gr.
