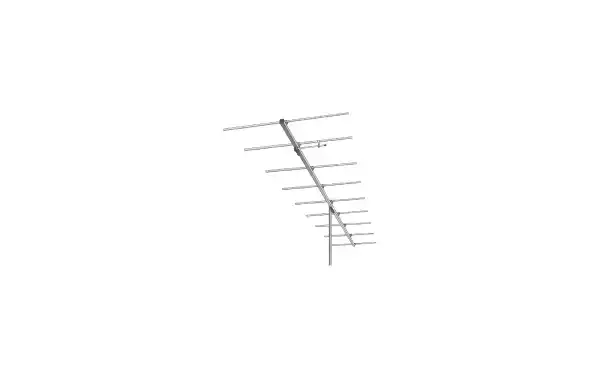

SIGMA 9EVHF Directive antenna YAGI type. VHF 144-146 MHz. 9 elements

SIGMA 9EVHF Directive antenna YAGI type. VHF 144-146 MHz. 9 elements

SIGMA9EVHF

Referencia: SIGMA9EVHF (VARIOS)

discontinued

ref. SIGMA9EVHF

Manufactured by the prestigious Italian firm SIGMA ANTENNE, this directive antenna type YAGI of 9 elements for VHF 144 146 Mhz. It is made of high quality anticorrosive aluminum. Its length is 4 meters. Gain: 14 dB. Maximum power: 200 watts.







CHARACTERISTICS

Frequency: 143 147 Mhz.  143 147 Mhz.

Impedance: 50 ohms 50 ohms

Connector type: N N

SWR: approx. 1.1 in center band aprox. 1,1 en centro banda

Profit: 14 dB  14 dB

Front / back ratio: 35 dB   35 dB

Maximum Power: 200 watts   200 watios

Polarization: vertical / horizontal vertical/horizontal

Elements: 9 elements  9 elementos

Dimension of the Boom: 4.000 mm x 30 mm x 30 mm Dimensión del Boom:. .

Weight: 4.1 kg Peso: 4,1 kg.
