DIAMOND A144S10 directive antenna for VHF 10 items

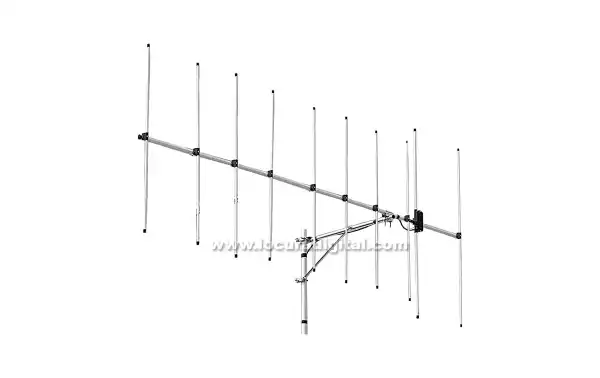

DIAMOND A144S10 directive antenna for VHF 10 items Band (s): 144-146 MHz + Gain: 11.6 dBi + Type: Yagi, 10 elements + Max power: 50 W + Impedance: 50 ohms, SO-239 + Dimensions: Boom: 2.13 m; the Longest: 1.09 m + Weigh more Reference A144S10

diamond
A144S10 DIAMOND Antena directiva 10 elementos para VHF
avalaible
80,71 incl. VAT
66,70€ w/o VAT
We're working in our new page, i'ts possible that you discover some mistakes. In that case, you can notify us clicking HERE.

A144S10

A144S10 DIAMOND Antenna directive 10 elements for VHF

A144S10 DIAMOND Antena directiva 10 elementos para VHF

A144S10 DIAMOND Antena directiva 10 elementos para VHF

A144S10 DIAMOND Antena directiva 10 elementos para VHF

Characteristics


  • Special features:
    Super High Gain
    Easy Assembly
    Excellent for base or portable use.
    Quality Construction
    Factory adjusted - no tuning is required.

    Specifications:
    Power rating: 50 watts
    Frequency: 144-148 MHz
    Band: 2m Yagi (10 elements)
    Connector: UHF
    Gain: 11.6 dBi
    Weight: 2.4 lbs.
    Dimensions: 7 "x 3.6" x 2.9 "
    Max Wind resistance: 80 MPH
    Observations: Center element isolated from the ground.
