X5000 LAFAYETTE Antena base Fibra de Vidrio 144/430 /1200Mhz

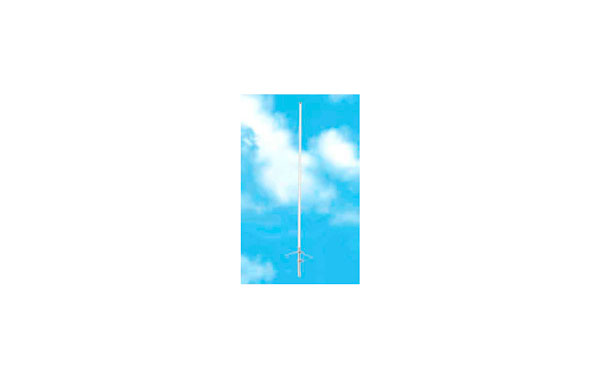

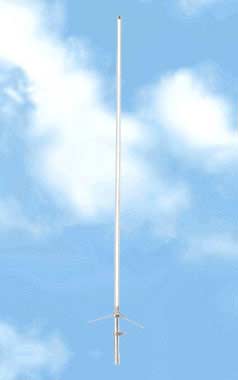

X5000NW D-ORIGINAL Fiberglass Triband Base Antenna 144/430/1200

X-5000-NW D-ORIGINAL Fiberglass Triband Base Antenna 144/430 / 1200Mhz. Antenna valid to transmit and receive in two VHF / UHF bands. It has three radials and can be installed on a 30 mm to 60 mm diameter mast. Connection type N. Length 1.80m. A stre

Make the first review

94,99€ VAT included 78,50€ excl. VAT

You've seen it cheaper Request a quote

available. Envio a partir de 2 días. Delivery price from 30,25€

Description D-ORIGINAL X5000NW

X-5000 NW D-ORIGINAL

D-ORIGINAL Fiberglass base antenna 144/430/1200 mhz
Tri-band BASE antenna. Antenna valid to transmit and receive in two VHF / UHF bands. It has three radials and can be installed on a 30 mm to 60 mm diameter mast. Connection type N. Length 1.80m. A stretch.

D-ORIGINAL X5000NW


	FEATURES

Frequency range :

144 - 430 - 1200 MHz

Configuration:

144 MHz	6/8 l
430 MHz	3 x 5/8 l
1.2 GHz	7 x 5/8 l

Gain:

144 MHz	4.5 dB iso
430 MHz	8.3 dB iso
1.2 GHz	11.7 dB iso

Max. power rating :

350W

WSVR:

1.5

Length:

180 cm

Connector:

Weight:

0.9 kg.
