Maas X-5000-N Antenna TRIPLE band VHF-UHF-SHF 144/430/1200 Mhz Fiber
X-5000-N MAAS Germany. TRIPLE band antenna VHF-UHF-SHF 144/430/1200 Mhz. It is made of fiberglass and measures 1.5 meters. VHF 144 Mhz gain: 4.5 dBi, UHF 430 Mhz: 8.3 dBi and SHF 1,200 Mhz 11.7 dBi. N female connector.
Make the first review NOTIFY
not available
Description MAAS MAASX5000N
MAAS X5000N
X-5000-N MAAS made in Germany. TRIPLE band VHF-UHF-SHF antenna 144/430/1200 Mhz. It is made of fiberglass and measures 1.6 meters. VHF 144 Mhz gain: 4.5 dBi, UHF 430 Mhz: 8.3 dBi and SHF 1,200 Mhz 11.7 dBi. N female connector.
You may be interested in the PL adapter see link click <<< here >>>

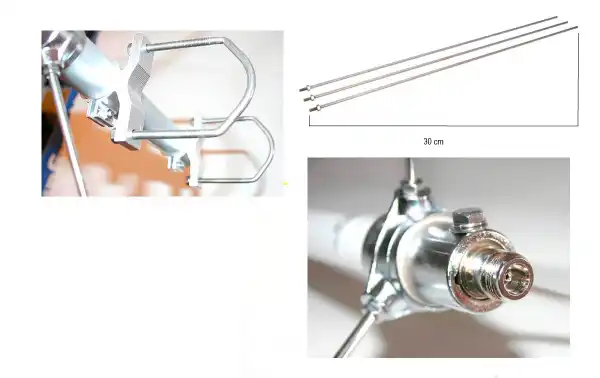

MAAS X-5000N Kit Contents
- 1 white fiber antenna 1 sections.
- 2 Flanges for mast from 30 mm to 50 mm
- 3 Radials length 30 cm.
- 1 English assembly manual.
You may be interested in the PL adapter see link click <<< here >>>
Characteristics
- Frequencies 144/430/1240 Mhz
- Bands 2m / 70 cm/ 23 cm
- Impedance: 50 Ohm.
- VHF gain: 6.5 dBi
- UHF gain: 9.0 dBi
- SHF gain: 11.7 dBi
- Maximum power: 200 watts.
- Antenna material Fiberglass
- Antenna length: 1.5 meters
- White fiber color
- ROE: 1.5 SWR
- Connector: N female
- Sections: 1
- Radial: 3 rods length 30 cm.
- Rod material: Stainless steel.
- Maximum wind resistance: 50 m/sec (112.5 MPH)
- Weight: 900 gr
