Reference DG103 | KPO

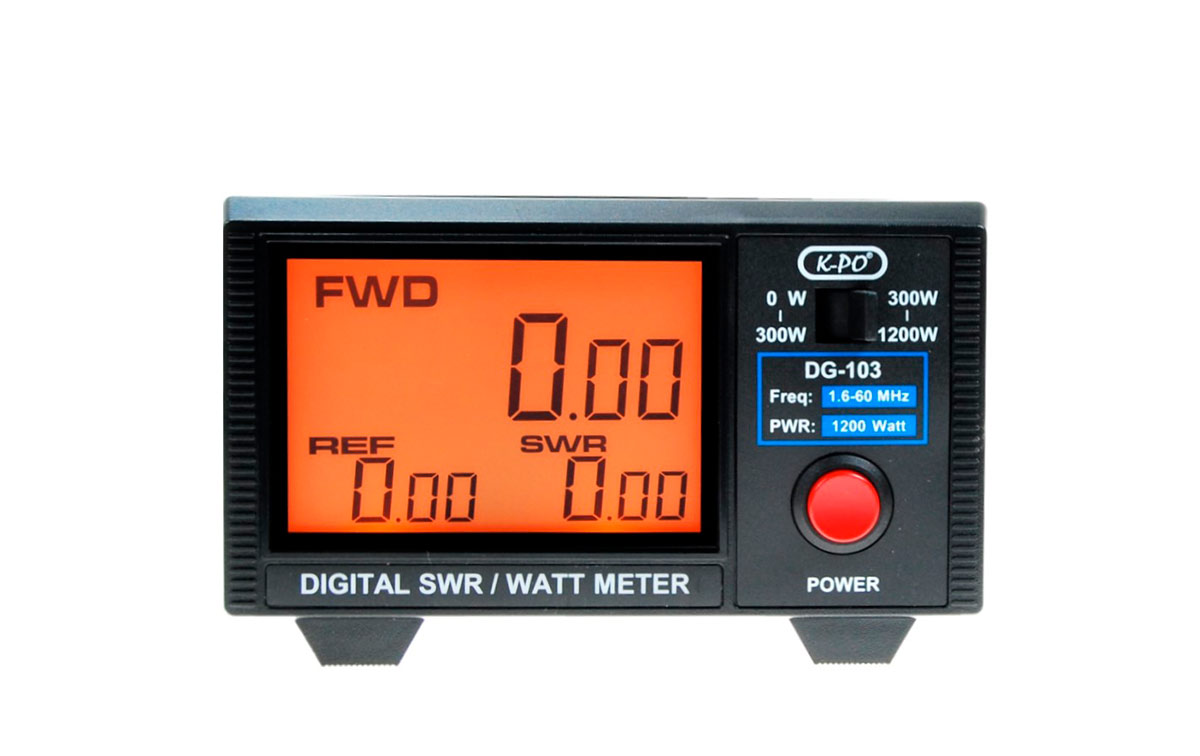

K-PO DG-103 Digital SWR + Wattmeter HF1.6 to 60 Mhz. Power 1,200 watts

K-PO DG-103 DIGITAL SWR + HF Wattmeter 1.6 to 60 Mhz. Power 1,200 watts Newly designed digital HF meter with maximum power of 1200 Watts. Based on the popular K-PO DG-503N. Designed to operate between 1.6 and 60 MHz, with a precision of pot

We're sorry, this item is no longer available.

Description DG103

DG-103

K-PO DG-103 DIGITAL SWR Wattmeter HF 1.6 to 60 Mhz. Power 1,200 watts
Newly designed digital HF meter with maximum power of 1200 Watts. Based on the popular K-PO DG-503N. Designed to operate between 1.6 and 60 MHz, with 5% power accuracy between 1.6 and 30 MHz.

"Attention: digital measurements can only be made for continuous signals so this meter cannot measure SSB signals"

K-PO DG-103 Digital SWR Watimetro HF1,6 a 60 Mhz.Potencia 1.200 watios

Kit contents
  • 1 DG-103 Meter
  • 1 Power cable 12 v.

K-PO DG-103 Digital SWR Watimetro HF1,6 a 60 Mhz.Potencia 1.200 watios

Characteristics

  • Frequency Range 1.6 - 60 Mhz
  • Impedance 50 ohm
  • Power 300 mW - 300 W / 300 - 1200 W
  • Minimum power for SWR reading: 300 mW
  • Voltage 12 volts

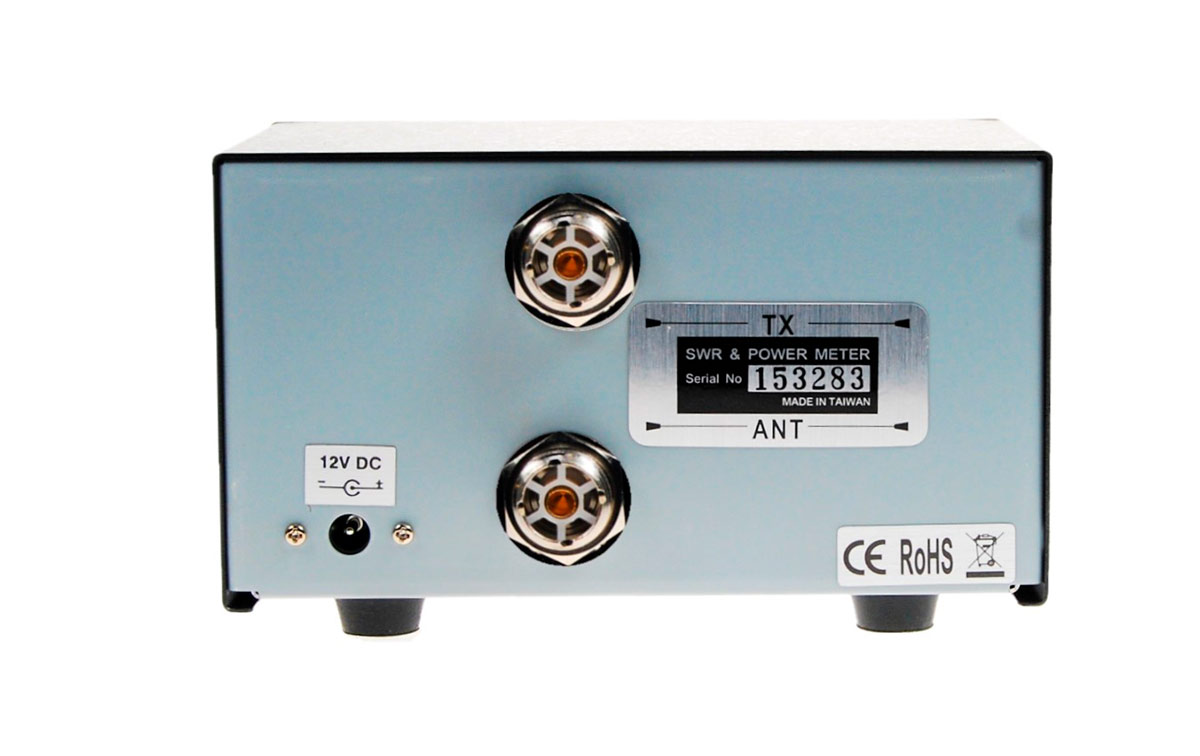

  • 2 x PL female UHF connectors
  • Metal chassis
  • Dimensions (W / H / UHF) 140 x 84 x 122
  • Weight 590 grams
