AOR AR-5700D Professional Receiver 9 kHz up to 3.7 GHz
The unit features multiple IF, audio, video, and I/Q outputs, both analog and digital. It allows direct recording to an SD card, signal playback, and connection to a PC via USB for control and analysis. moreManufacturer:aorReference AR5700D
The AOR AR-5700D is a professional spread-spectrum receiver covering the 9 kHz to 3.7 GHz frequency range, designed for advanced users, professionals, security services, and technical laboratories. This receiver allows reception of a wide range of analog (AM, FM, SSB, CW, etc.) and digital (DMR, NXDN, P25, D-STAR, TETRA, Yaesu C4FM, dPMR, among others) signals.
Thanks to its DALL automatic detection system, it can identify and demodulate digital signals without user intervention. The AR-5700D employs four RENESAS SH2 processors, three analog DSPs, and four Intel Cyclon FPGAs, delivering extremely precise processing. Direct digital conversion (DDC) in HF, along with its 14-bit A/D converter, ensures clean, interference-free reception.
The unit features multiple IF, audio, video, and I/Q outputs, both analog and digital. It allows direct recording to an SD card, signal playback, and connection to a PC via USB for control and analysis.
Its notable features include an FFT spectrum analyzer, trunking support, composite video output, dual or simultaneous reception, and incredible channel memorization capabilities.
Its robustness, precision, and connectivity position it as one of the most advanced and complete receivers on the market today.
Some of the features that the AOR AR-5700D offers us are:
Frequency coverage from 9 kHz to 3.7 GHz
Modes: AM, FM, FM stereo, USB, LSB, CW, SAM
Digital reception: DMR, P25, NXDN, D-STAR, C4FM, dPMR, TETRA
Recording to SD card
2000 memories distributed in 40 banks
N antenna connectors for VHF/UHF and HF

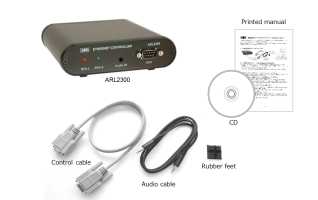

Ethernet and serial control (with accessory)
Powerful and clear audio up to 2W
What's included with the AOR AR-5700D?
1 AR-5700D AOR Receiver
1 Power supply
1 USB cable for connection to PC
1 User Manual
Characteristics
Frequency range: 9 kHz 3.7 GHz
Modes: AM, FM, USB, LSB, CW, SAM, etc.
Digital Modes: DMR, P25, TETRA, D-STAR, C4FM, dPMR, NXDN
Auto-detect DALL function
Digital (USB) and analog I/Q outputs
IF output at 45.05 MHz
Direct recording to SD card
FFT spectrum analyzer
Software control via USB
Signal reproduction
N female connectors for antennas
Dual receiver and simultaneous reception
Memories: 2000 channels
Programmable IF filters
Digital processing with 4 CPUs and 3 DSPs
Stereo audio and external speaker output
Composite video (RCA 75O)
Power supply 12 V DC / consumption 2 A
Compatible with external 10 MHz reference
Measurements: 210 mm (W) x 100 mm (H) x 270 mm (D)
