Diamond D-130J antenna scanner 25-1300 Mhz female PL connector without...

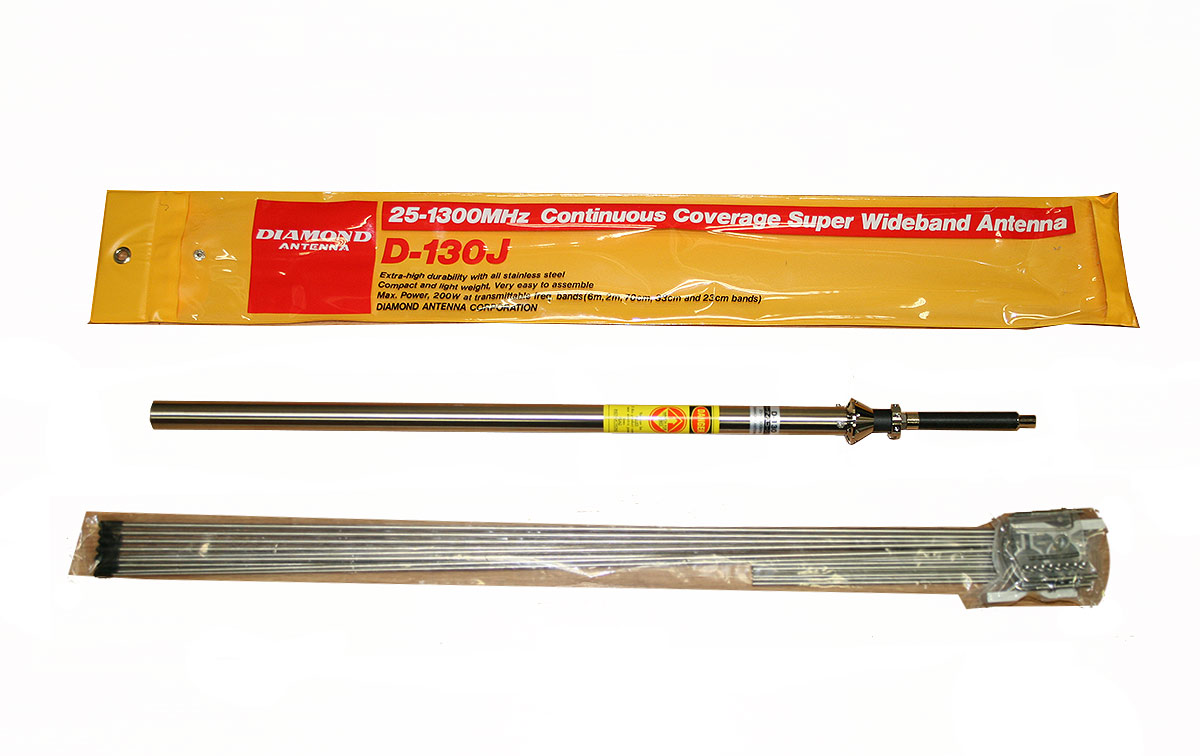

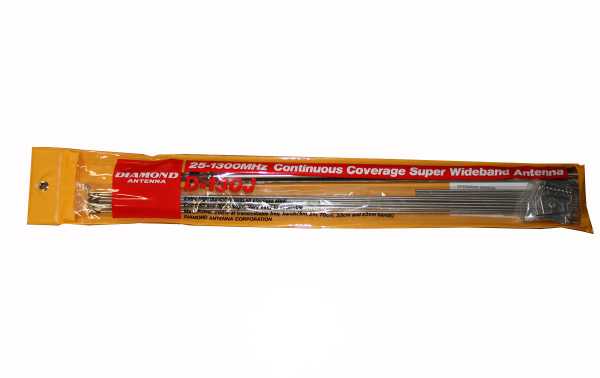

Diamond D-130J

DIAMOND D-130J Special antenna for scanner reception, designed to receive from 25 - 1300 Mhz. Discono Antenna 25 MHz / 1300 MHz
Length 175 cm. Stainless steel material. PL female connector
!! THIS ANTENNA IS VALID TO TRANSMIT in 6 meters. (50 Mhz.) - 2 mts. (144 Mhz.) - 70 cms. (430 MHZ) - 33 cms. (900 Mhz.) - 23 cms. (1,200 Mhz.), Up to 200 watts of maximum power !!!!
!! JAPANESE DIAMOND ORIGINAL !!

Discono antenna
25 MHz ~ 1300 MHz

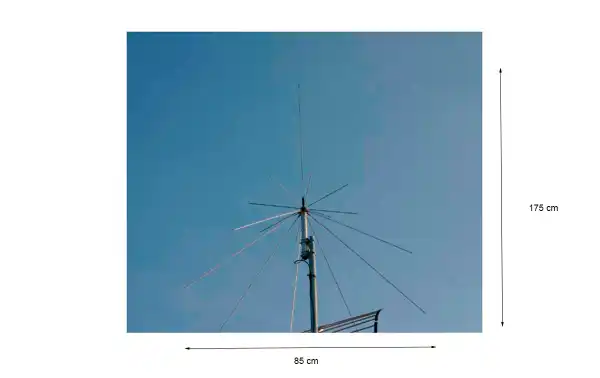

Total antenna length 175 cms.
Material Stainless steel
Female PL antenna connector
Note: Diamond D-130J is the same in measurements and technical characteristics as the Diamond D130, this model the only difference is that it has 15 meters of RG58 cable 2 PL male connectors.

• 1 Daimond D130J Antenna

features

• Antenna type Discono
• Frequency (RX) reception 25 to 1300 Mhx
• Transmission frequency (TX) 50 Mhz - 144 Mhz- 430 Mhz - 900 Mhz - 1200 Mhz
• Maximum power 50 Mhz 20 watts
• Maximum power 144/430 / Mhz 100 watts
• Maximum power 900/1200 Mhz 25 watts
• Antenna length 175 cm.
• Material Stainless Steel
• Antenna PL female connector
• Mast diameter from 25 to 50 mm
• Weight 1 kg.
