Description D130

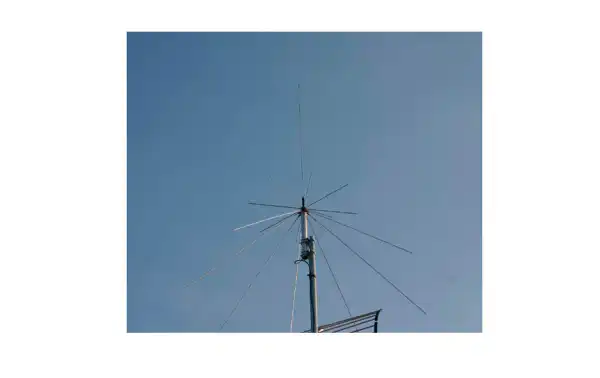

Diamond D-130
DIAMOND D-130. Special antenna for scanner reception, designed to receive from 25 - 1300 Mhz. Discono antenna 25 MHz / 1300 MHz
Length 175 cms. Material stainless steel. Female PL connector
!! THIS ANTENNA IS VALID FOR TRANSMITTING 6 meters (50 Mhz.) - 2 meters (144 Mhz.) - 70 cm (430 MHZ) - 33 cm (900 Mhz.) - 23 cm (1,200 Mhz.), up to 200 watts of maximum power!!!!
Includes: 15 meter RG 58 antenna cable with two male PL connectors
!! JAPANESE ORIGINAL DIAMOND!!
Discone antenna
25MHz~1300MHz

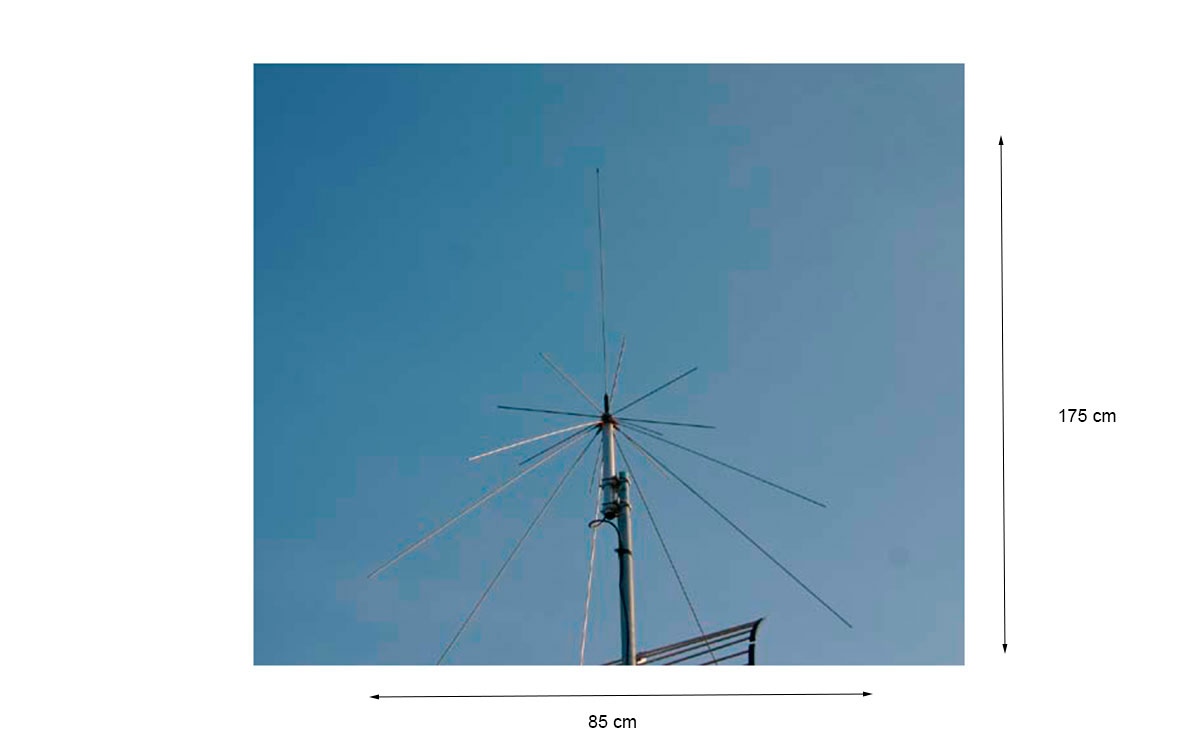

Total antenna length 175 cms.
Stainless steel material
Female PL antenna connector
Note: Diamond D-130 is the same in measurements and technical characteristics as the Diamond D130J which does NOT have 15 meters of RG58 cable with 2 male PL connectors, but this D-130 without the letter "J" does have the cable and connectors.

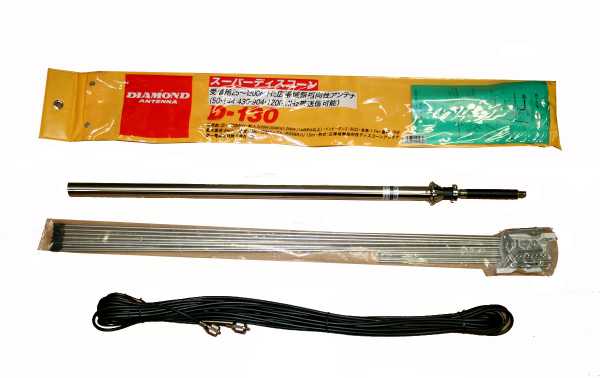

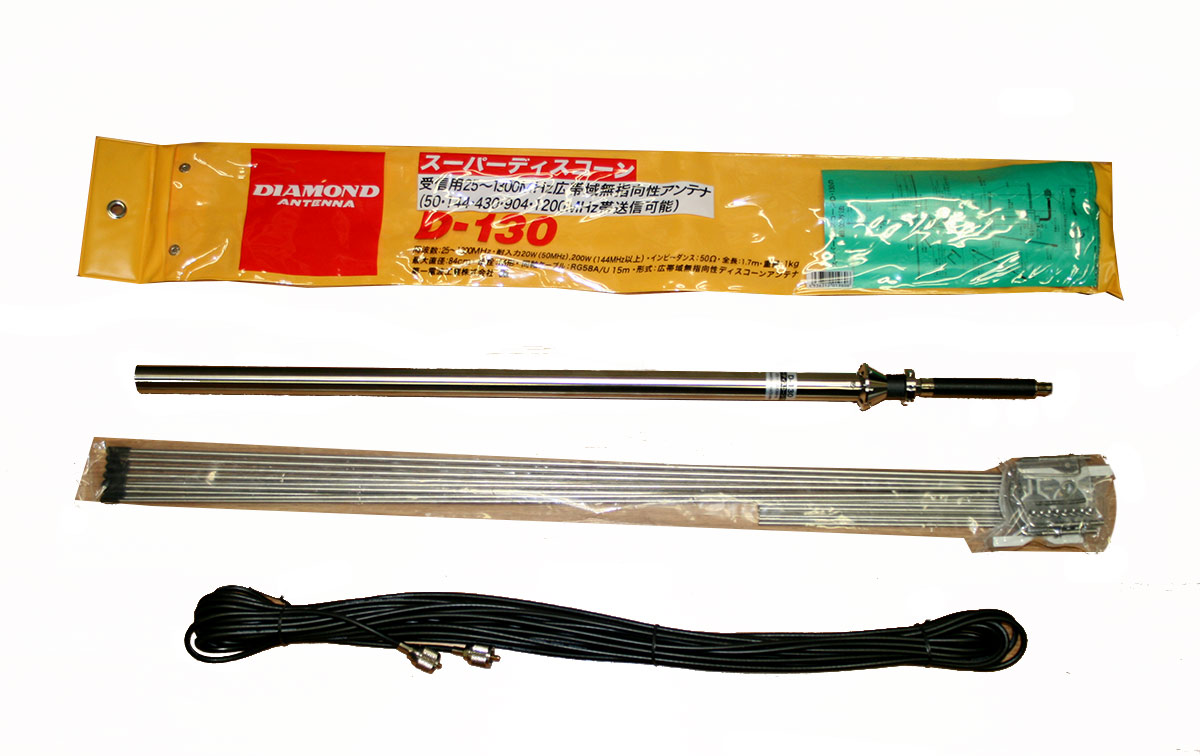

Kit contents
- 1 Daimond D130 Antenna
- 15 Meters RG 58 cable
- 2 PL male put on the cable
Characteristics
- Discone antenna type
- Reception frequency (RX) 25 to 1300 Mhx
- Transmission frequency (TX) 50 Mhz - 144 Mhz- 430 Mhz - 900 Mhz - 1200 Mhz
- Maximum power 50 Mhz 20 watts
- Maximum power 144/430/Mhz 100 watts
- Maximum power 900/1200 Mhz 25 watts
- Antenna length 175 cm.
- Material Stainless Steel
- Female PL Antenna Connector
- Mast diameter from 25 to 50 mm
- Weight 1 kg.
